Description
This 1/3″ 3mm 150° M12 wide-angle lens features 3 Megapixel high resolution, F2.4 large aperture and 5G+IR cut optical structure. With 150° diagonal super field of view, fixed manual focus and M12×0.5 standard mount, it delivers clear day & night imaging, ideal for CCTV security, automotive monitoring, industrial machine vision and smart IoT device integration.
Key Product Highlights
Ultra-Wide 150° FOV Coverage
Covers 150° diagonal, 108° horizontal and 67° vertical viewing angle, eliminates blind spots without installing multiple lenses.
3MP High-Definition Imaging Performance
3 Megapixel resolution matches mainstream 1/3-inch CMOS sensors, restores real scene details sharply.
F2.4 Large Aperture & Stable Light Adaptation
F2.4 fixed aperture improves low-light shooting brightness, ensures clear imaging in dim indoor and night environments.
Standard M12 Mount & Easy Installation
M12×0.5 universal interface, plug-and-play, compatible with most surveillance and industrial vision modules.
5G+IR Cut Professional Optical Design
5-group lens structure with IR cut filter realizes true day-night switching, reduces chromatic aberration and distortion effectively.

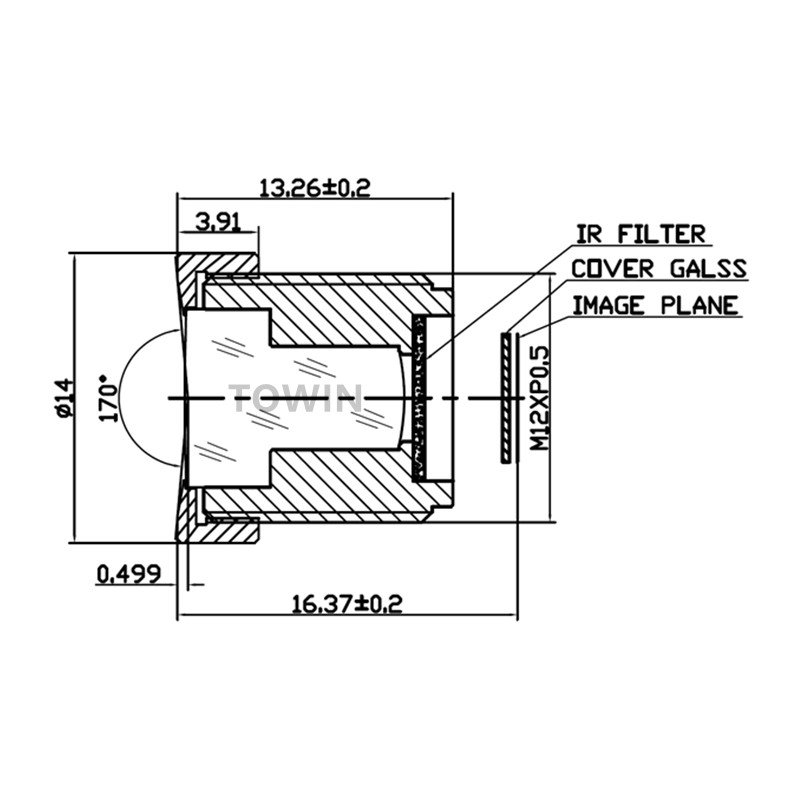

Detailed Product Parameter
| Parameter Item | Specification |
|---|---|
| Image Format | 1/3″ |
| Focal Length | 3mm |
| Diagonal FOV (AR0330) | 150°(D) |
| Horizontal FOV | 108°(H) |
| Vertical FOV | 67°(V) |
| Resolution | 3 Megapixel |
| Distortion | -39% |
| Aperture | F2.4 |
| Mount | M12X0.5 |
| Iris | Fixed |
| Focus | Manual |
| Zoom | Fixed |
| M.B.F.L. | 3.1mm |
| TTL | 16.17mm |
| M.O.D. | 0.1m |
| Lens Component | 5G+IR cut |
This product is RoHS certified, ISO9001 quality control certified, supports third-party testing, and complies with EU/domestic security equipment access standards, alleviating customer quality concerns.
Product Application Scenarios and Compatible Device
Core Application Scenarios
Primarily applied to automotive ADAS peripheral monitoring, outdoor CCTV security cameras, smart home video doorbells, industrial machine vision inspection, IoT smart monitoring devices and small drone aerial auxiliary imaging. Its 150° ultra-wide angle perfectly fits narrow installation space and full-scene monitoring demands, covering larger monitoring areas with single-lens setup and lowering overall equipment deployment cost. The 0.1m minimum object distance supports close-range industrial detection and short-distance scene capture, adapting to indoor low-light, outdoor all-weather and vehicle dynamic shooting environments steadily.
Compatible Devices List
Compatible with 1/3-inch mainstream CMOS sensors including AR0330. Adapted to mainstream security monitoring modules, automotive rear view & front view cameras, smart Tuya IoT cameras, industrial vision inspection equipment, small embedded monitoring modules and drone visual sensing modules. Supports structural matching for custom smart terminal equipment, meeting personalized device adaptation and mass installation needs.
Designed for wide-angle surveillance and industrial machine vision application.
FAQs
Q: What sensor size does this 3mm wide-angle lens support?
A: It is optimized for 1/3-inch image sensors and perfectly matches AR0330 and other mainstream CMOS chips.
Q: Is this lens suitable for night vision monitoring?
A: Yes, built-in IR cut structure supports infrared night imaging, ensuring clear images day and night.
Q: What mount type does this lens adopt?
A: It uses standard M12×0.5 thread mount, compatible with most mainstream surveillance camera modules.
Q: Does this lens support close-range shooting?
A: The minimum object distance is 0.1m, ideal for close-range industrial detection and short scene monitoring.
Q: What is the resolution of this wide-angle lens?
A: 3 Megapixel high resolution, delivering sharp and detailed imaging for daily monitoring and machine vision tasks.
