Description

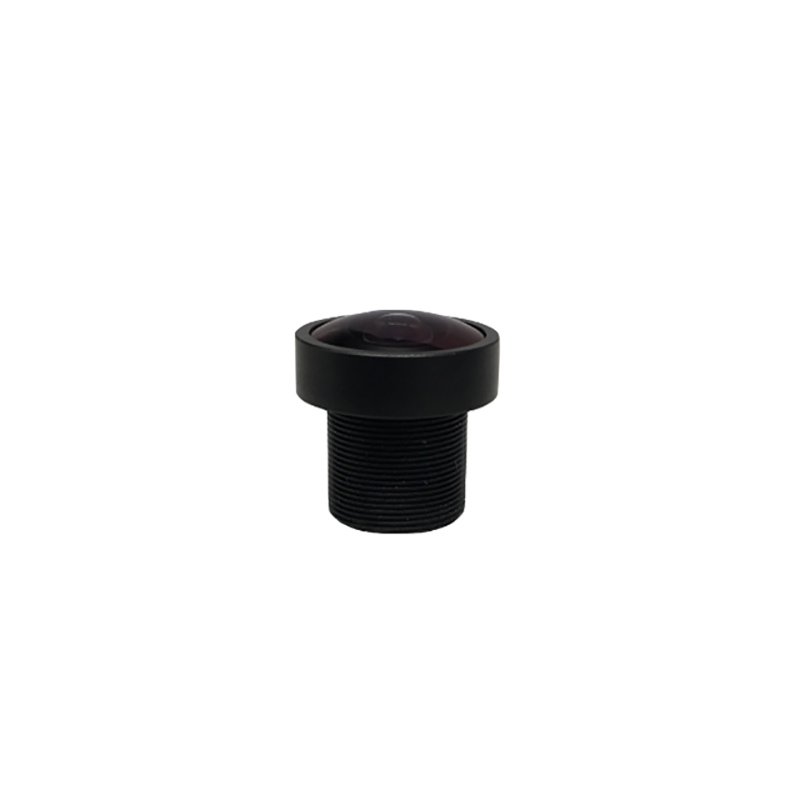

This professional-grade 16-Megapixel Fisheye Lens is engineered for high-precision optical performance, featuring an expansive 190° Field of View (FOV). Designed with a standard M12 mount, it stands out among M12 Lenses for its ability to deliver 4K+ resolution across a full hemispherical sweep. Whether integrated into a high-end Drone & UAV Lenses assembly or used as a high-resolution Industrial Lens, this 7-element all-glass (7G) optical solution ensures unparalleled image clarity and thermal stability.
Scenario-Based Functional Descriptions
16MP Ultra-High Resolution for Precision Analytics:
Unlike standard security lenses, this Machine Vision Lens supports up to 16-megapixel sensors. This extreme pixel density allows for digital zooming into specific areas of the 190° frame without losing critical details, making it an ideal Industrial Lens for automated quality inspection and high-density crowd analytics.
190° Immersive Field of View (Full Coverage):
As a premium Fisheye Lens, it captures a 190° diagonal, horizontal, and vertical perspective. This “beyond-hemisphere” coverage is essential for Automotive Lens applications like 360° Surround View Systems (AVM) and blind-spot detection, where a single sensor must replace multiple narrow-angle cameras to reduce system complexity.
All-Glass (7G+IRF) Optical Construction:
Built with seven layers of precision-ground glass and an integrated Infrared Filter (IRF), this Fixed Focal Lens minimizes chromatic aberration and maintains sharpness from the center to the very edges of the image. The high-quality glass construction ensures it outperforms plastic alternatives in extreme temperature environments, a must-have for Drone & UAV Lenses operating in diverse climates.
Compact M12 Form Factor for Seamless Integration:
With a Total Track Length (TTL) of just 19.90mm, this M12 Lens fits into the most space-constrained housings. Its compact footprint makes it a top choice for Wide Angle Lens requirements in smart city kiosks, compact medical imaging devices, and sleek automotive dashcam integrations.
Detailed Parameter Table
| Feature | Specifications | Advantage |
|---|---|---|
| Resolution | 16 Megapixel (UHD) | Future-proof clarity for AI and high-end imaging |
| Field of View (D/H/V) | 190° / 190° / 190° | Complete hemispherical coverage with no blind spots |
| Focal Length | 1.7mm | Optimized for ultra-wide panoramic capture |
| Aperture | F2.4 | Balanced light intake for consistent depth of field |
| Optical Distortion | < -101% | Characteristic fisheye projection for maximum FOV |
| Mount | M12 x 0.5 | Universal compatibility for embedded vision |
| Lens Structure | 7G + IRF | All-glass layers for superior heat resistance & clarity |
| M.O.D. | 0.1m | Allows for sharp imaging of objects in close proximity |
FAQs
Q: Why choose a 16MP resolution for a Fisheye Lens?
A: Wide-angle images often suffer from “pixel stretching” at the edges. By using a 16MP sensor, you ensure that even the distorted peripheral areas contain enough data for AI algorithms to accurately identify objects, which is critical for Machine Vision Lens applications.
Q: Is this lens compatible with standard M12 camera modules?
A: Yes, its M12 x 0.5 mount is the industry standard for M12 Lenses, making it “plug-and-play” for most CMOS sensor boards from Sony, Onsemi, and Omnivision.
Q: Can this lens handle outdoor temperature fluctuations?
A: Absolutely. The 7G (7-layer glass) design prevents the “focus shift” common in plastic lenses when temperatures rise or fall, making it a reliable Automotive Lens or Drone Lens.
