Description

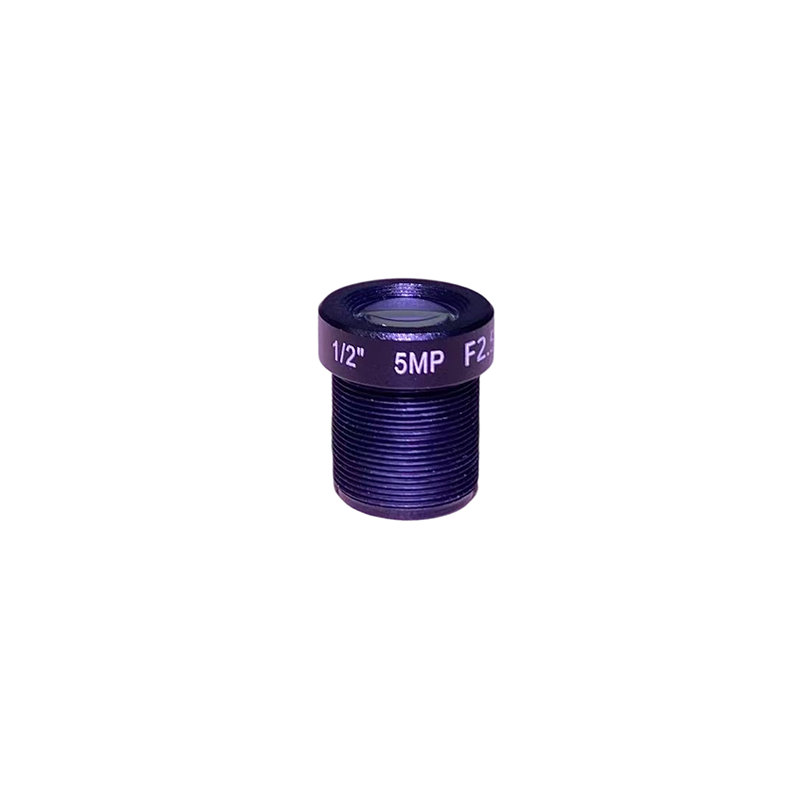

This high-performance 5-Megapixel 16mm M12 Low Distortion Lens delivers exceptional clarity and precision for demanding industrial environments. Engineered as a professional Machine Vision Lens, it features ultra-low distortion below 0.3% and a robust 6-element glass design with IRCF. Supporting 1/2″, 1/1.8″, and 2/3″ sensors with a standard M12 mount, it stands out as a reliable choice among high-resolution M12 Lenses for factory automation, measurement, inspection, and industrial imaging.
Scenario-Based Functional Descriptions
<0.3% Ultra Low Distortion for Precision Machine Vision
As a premium Low Distortion Lens, this 16mm model ensures minimal image deformation, critical for precision measurement, positioning, and defect detection in Machine Vision systems. Its stable optical performance makes it a top-tier FA Lens for production lines where dimensional accuracy and image fidelity are non‑negotiable.
5MP High Resolution for Sharp Industrial Imaging
With 5-megapixel resolution, this Industrial Lens captures fine details across 1/2″, 1/1.8″, and 2/3″ sensors. Paired with a fixed F2.5 aperture and optimized IR correction, it provides consistent, high-contrast imaging for day and night industrial monitoring, solidifying its role as a durable IR Corrected Lens for 24/7 automation.
Fixed Focal & M12 Mount for Stable Integration
As a dedicated Fixed Focal Lens, it offers excellent repeatability and stability in embedded vision systems. The universal M12×0.5 mount ensures seamless compatibility with industrial cameras, making installation fast and reliable for Machine Vision Lens integrators and OEM equipment.
Compact Industrial Structure for Embedded Systems

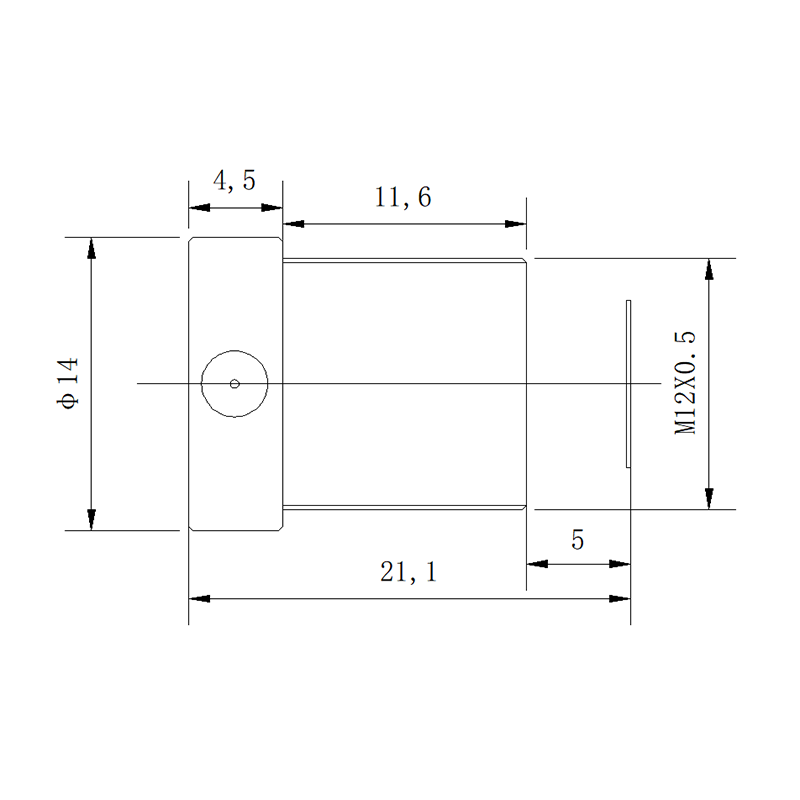

With a TTL of 21.1mm and Φ14×16mm dimensions, this compact M12 Lens fits easily into space‑limited industrial devices, robotic vision modules, and inspection equipment. Its 6G+IRCF structure guarantees durability and color accuracy in harsh factory conditions.
Detailed Parameter Table
| Feature | Specifications | Advantage |
| Image Format | 1/2″, 1/1.8″, 2/3″ | Wide compatibility with industrial sensors |
| Focal Length | 16mm Fixed | Stable viewing angle for Fixed Focal Lens applications |
| F.O.V. @1/2″ | 29°(D) / 23°(H) / 17.5°(V) | Standard angle for precision inspection |
| Resolution | 5MP | High detail for Machine Vision Lens tasks |
| Distortion | <0.3% | Ultra-low distortion for measurement & positioning |
| Aperture | F2.5 | Balanced light throughput for industrial use |
| Mount | M12×0.5 | Universal fit for M12 Lenses |
| Iris | Fixed | Reliable, maintenance-free operation |
| M.O.D. | 0.3m | Suitable for close‑range industrial inspection |
| T.T.L. | 21.1mm | Compact design for embedded integration |
| B.F.L. | 5.75mm | Stable optical path for sensor matching |
| Dimension | Φ14×16mm | Small form factor for tight installations |
| Structure | 6G+IRCF | High durability & true color reproduction |
FAQs
Q: Is this lens suitable for machine vision measurement?
A: Yes. With distortion <0.3%, this Low Distortion Lens is ideal for precision measurement, positioning, and alignment in Machine Vision and FA Lens applications.
Q: Does this lens support 1/2″, 1/1.8″ and 2/3″ sensors?
A: Yes. It is designed to work with all three sensor formats, making it highly versatile for different Industrial Lens setups.
Q: Is this a Fixed Focal or Varifocal Lens?
A: It is a Fixed Focal Lens, providing excellent stability and repeatability for industrial automation and machine vision systems.
Q: What mount does this lens use?
A: It uses M12×0.5 mount, making it fully compatible with standard M12 Lenses interfaces commonly used in industrial cameras.
