Description
This high-precision 5-Megapixel Low Distortion Lens delivers ultra-clear imaging with distortion controlled below -1%, making it ideal for precision measurement and high-accuracy machine vision tasks. Built with a standard M8 x 0.35 mount—one of the most widely used interfaces for M8/M7/M6 Miniature Lenses—it features a compact structure without IRCF and an ultra-short total track length for tight-space integration. Engineered for industrial automation, visual inspection, and high-precision sensing, it stands out as a professional choice among FA lens, Industrial Lens, and Machine Vision Lens solutions.
Scenario-Based Functional Descriptions
Ultra-Low Distortion for Precision Machine Vision
With distortion controlled at <-1%, this Low Distortion Lens ensures minimal image deformation and high measurement accuracy. It excels in high-precision industrial inspection, positioning, and dimensional verification—core applications for Machine Vision Lens and FA lens—delivering stable, reliable image data for algorithm analysis and automated production lines.
5MP High Resolution for Sharp Detail Capture
This Fixed Focal Lens supports 5-megapixel high resolution, providing crisp, clear image details across the entire sensor plane. Whether used in industrial detection, intelligent sensing, or miniaturized vision modules, it maintains outstanding clarity and contrast, perfectly matching the demands of modern Industrial Lens and Machine Vision Lens systems.
Compact M8 Miniature Design for Space-Constrained Integration

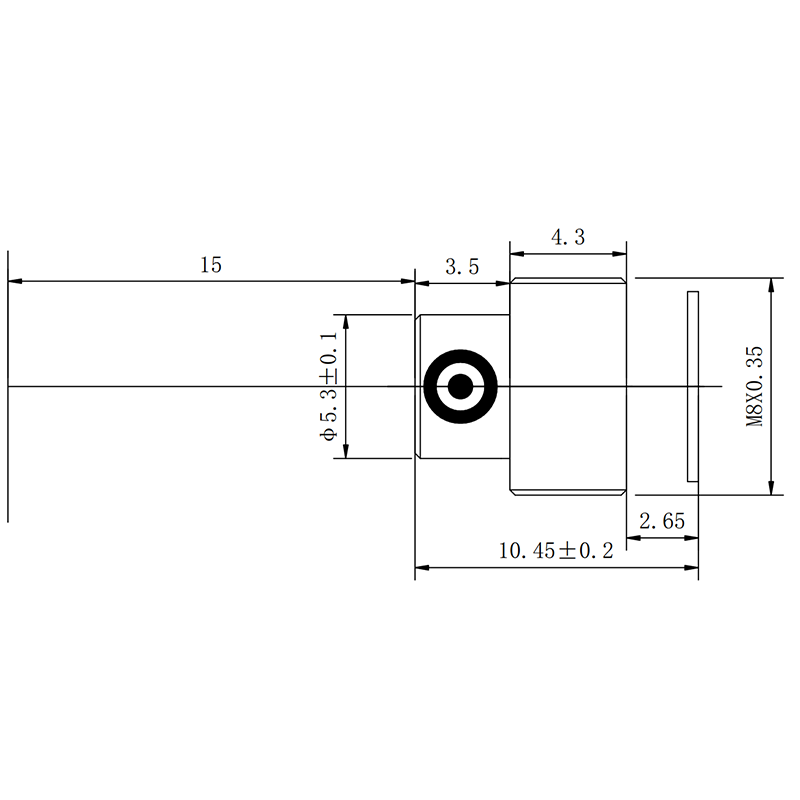

Featuring an M8 x 0.35 mount and a T.T.L. of only 10.45mm, this M8/M7/M6 Miniature Lenses solution is purpose-built for compact, embedded vision devices. Its small size and lightweight structure allow seamless integration into miniaturized modules, robotic vision components, and portable industrial equipment—without compromising optical performance, making it highly versatile for FA lens and Industrial Lens deployments.
Optimized F.O.V. for Multiple Sensor Compatibility
This Fixed Focal Lens supports 1/2.5″ and 1/2.8″ (IMX675) sensors with precise diagonal, horizontal, and vertical field-of-view parameters. Its stable optical design ensures consistent imaging performance across different sensor formats, greatly improving compatibility and flexibility for diverse Machine Vision Lens and Industrial Lens applications.
Detailed Parameter Table
| Feature | Specifications | Advantage |
| Image Format | 1/2.5″, 1/2.8″ | Compatible with mainstream 1/2.5″ and 1/2.8″ industrial sensors |
| Focal Length | 6.3mm | Standard fixed focal length for stable, consistent imaging |
| F.O.V. @1/2.5″ | 59°(D) / 48°(H) / 37°(V) | Standard angle with no blind spots for general industrial vision |
| F.O.V. @1/2.8″ IMX675 | 53°(D) / 44°(H) / 33°(V) | High compatibility with IMX675 and similar sensors |
| Resolution | 5MP | High-definition imaging for precise inspection and analysis |
| Distortion | <-1% | Ultra-low distortion for precision measurement and positioning |
| Aperture | F6.6 | Stable imaging with excellent sharpness and contrast |
| Mount | M8 x 0.35 | Standard mini mount for embedded and compact integration |
| M.O.D. | 15mm | Suitable for close-distance industrial detection and capture |
| T.T.L. | 10.45mm | Ultra-short design for space-limited modules |
| Structure | Without IRCF | Customizable for IR or visible-light applications as needed |
FAQs
Q: Why is <-1% distortion important for this Machine Vision Lens?
A: Ultra-low distortion ensures that images remain geometrically accurate, which is critical for measurement, positioning, and robotic guidance. This makes the lens highly reliable as a FA lens and Industrial Lens in high-precision automation systems.
Q: Is this M8 lens compatible with standard M8/M7/M6 Miniature Lenses interfaces?
A: Yes. It uses a universal M8 x 0.35 mount, fully compatible with common M8/M7/M6 Miniature Lenses modules and widely used in compact industrial and machine vision systems.
Q: Can this Fixed Focal Lens be used for industrial inspection and automation?
A: Definitely. With 5MP resolution, ultra-low distortion, and stable optical performance, it is professionally designed for industrial inspection, visual positioning, and automated production lines—core scenarios for FA lens, Industrial Lens, and Machine Vision Lens.
Q: Does this lens support IR night vision applications?
A: Yes. This model is designed without IRCF, allowing infrared light to pass through. It can be directly used with IR illuminators for night vision or low-light industrial vision systems.
