Description

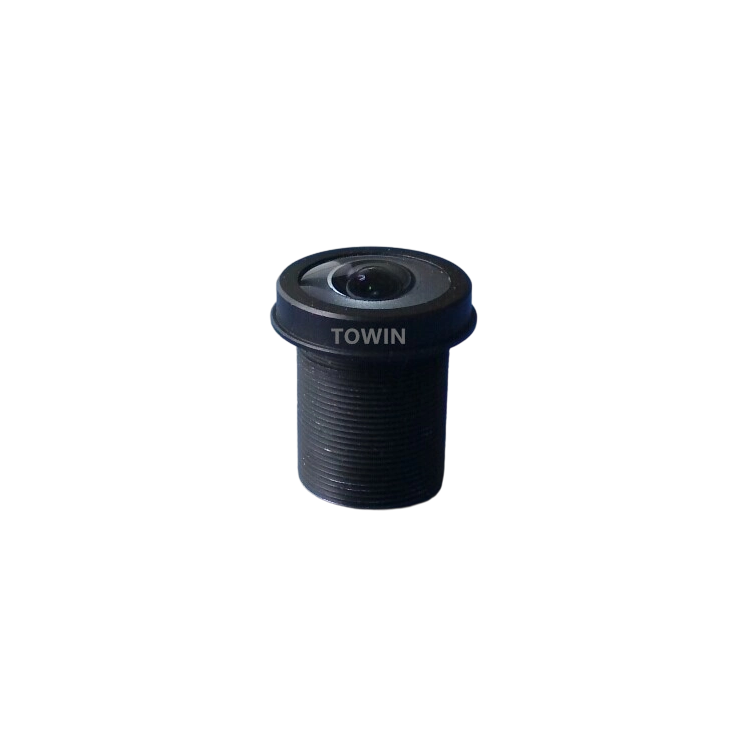

This professional-grade 3-Megapixel Fisheye Lens features a complete 180° hemispherical FOV, delivering high-definition panoramic imaging. Designed with a standard M12 mount, it is a versatile choice for developers seeking high-performance M12 Lenses for advanced optical systems. With an all-glass (6G) construction and F2.0 aperture, it provides the precision required for Automotive Lens applications, Machine Vision, and high-end CCTV Lens installations.
Scenario-Based Functional Descriptions
180° Panoramic Field of View – Zero Blind Spots:
Featuring a true 180° diagonal, horizontal, and vertical field of view, this Fisheye Lens captures an entire scene in a single frame. This makes it an essential component for 360° surround-view systems (AVM) and Automotive Lens solutions, where eliminating blind spots is critical for driver safety and autonomous navigation.
3MP High-Resolution 6G Optical Glass:
Engineered with six layers of high-precision glass (6G), this lens delivers 3-Megapixel clarity with superior light transmission. Unlike plastic alternatives, this Industrial Lens maintains optical stability across temperature fluctuations, making it a reliable Machine Vision Lens for AI-driven inspection and smart factory environments.
Compact M12 Form Factor for Seamless Integration:

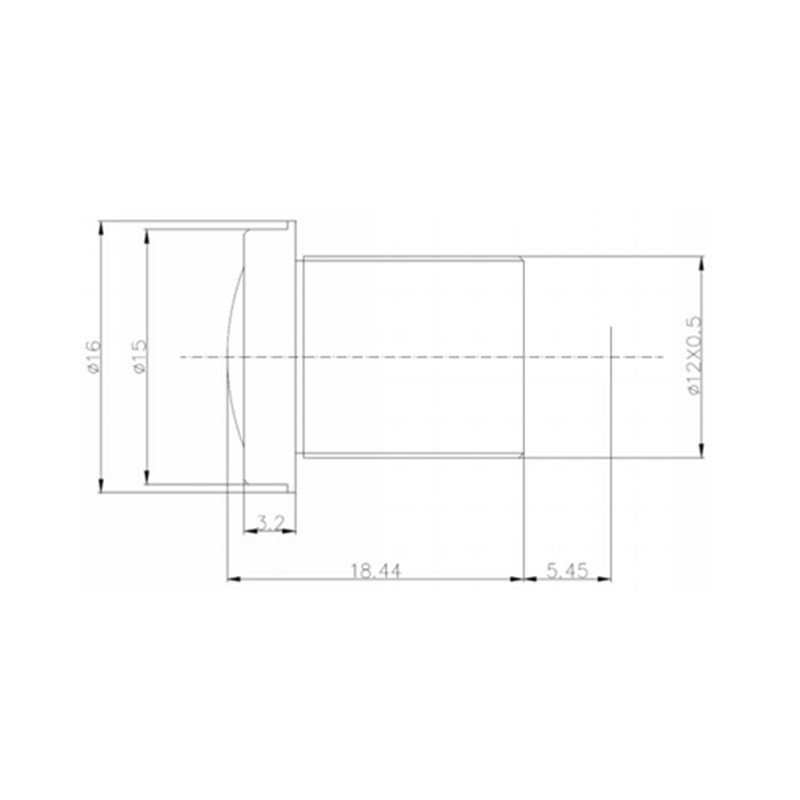

With a Total Track Length (TTL) of 23.89mm, this compact M12 Lens is optimized for space-constrained designs. Whether integrated into Drone & UAV Lenses for aerial mapping or used as a low-profile CCTV Lens for discreet security surveillance, its lightweight and robust build ensure easy deployment.
Optimized for Automotive and Industrial Durability:
With a fixed iris and a Minimum Object Distance (M.O.D.) of 0.2m, this lens is built for consistency. It serves as a high-performance Automotive Lens for dash cams and sensing modules, as well as a durable ITS Lens (Intelligent Transportation Systems) for traffic monitoring and license plate recognition assistance.
Detailed Parameter Table
| Feature | Specifications | Advantage |
|---|---|---|
| Image Format | Φ3.52mm | Optimized for 1/3″ and 1/4″ high-sensitivity sensors |
| Focal Length | 1.3mm | Ultra-short focal length for maximum wide-angle coverage |
| Field of View (D/H/V) | 180° / 180° / 180° | Full hemispherical capture for total situational awareness |
| Resolution | 3 Megapixel | Provides sharp, detailed imagery for AI and human analysis |
| Aperture | F2.0 | Balanced light intake for clear images in various lighting |
| Mount | M12 x 0.5 | Industry-standard S-Mount for universal compatibility |
| Construction | 6G (All-Glass) | High thermal stability and superior optical clarity |
| Distortion | < -100% | Characteristic fisheye projection for panoramic vision |
FAQs
Q: Why is a 180° FOV important for Automotive Lenses?
A: A 180° FOV allows four cameras to cover a full 360° perimeter around a vehicle. This Fisheye Lens ensures that the stitching software has enough data to create a seamless bird’s-eye view, which is vital for parking assistance and autonomous driving safety.
Q: Is this lens suitable for industrial “Machine Vision” applications?
A: Yes. With 3MP resolution and all-glass construction, it provides the sharpness and durability required for Machine Vision Lenses. It is ideal for wide-area monitoring on production lines or robot navigation in warehouses.
Q: Can this M12 lens be used on drones?
A: Definitely. Its compact TTL (23.89mm) and lightweight design make it a perfect fit for Drone & UAV Lenses, providing wide-angle situational awareness without adding significant bulk to the gimbal.
