Description

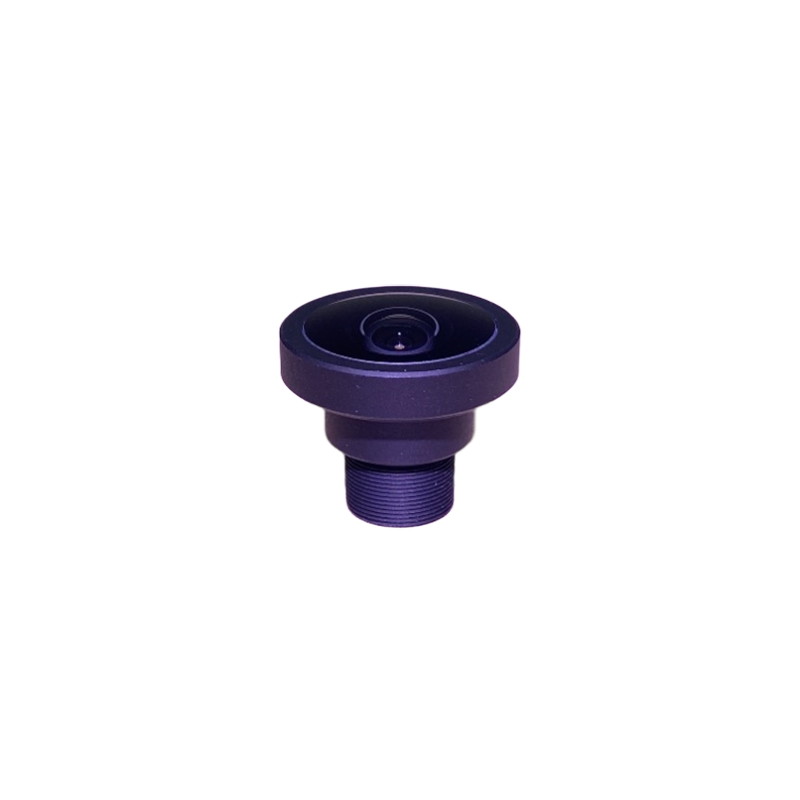

Unlock forensic-level optical clarity with this premium 8MP 180° Fisheye M12 Lens. Precision-engineered with a 2.1mm fixed focal length and optimized for a large 1/1.8″ image format, this lens delivers a seamless 180-degree full-hemisphere view in 4K resolution. Equipped with advanced IR corrected optics, it eliminates chromatic aberration under daytime and infrared lighting, preventing thermal focus shift completely. Whether you are developing high-end CCTV surveillance cameras, automotive surround-view configurations, drone vision systems, or machine vision hardware, this robust M12 wide angle lens ensures maximum spatial awareness without blind spots.
Product Highlights
- 8MP 4K Forensic Resolution: Optimized for high-density 8-megapixel sensors to deliver crystal-clear, text-readable details even at the panoramic edges.
- 180° Complete Hemisphere View: Provides full 180-degree diagonal, horizontal, and vertical coverage, replacing multi-camera arrays to save layout costs.
- Advanced Day/Night IR Correction: Incorporates specialized optical glass elements to lock visible and infrared light onto the same plane, avoiding focus drift.
- 0.1m Macro Minimum Object Distance: Achieves crisp, sharp close-up focus at just 10cm, resolving close-range tracking pain points for advanced robotics.
- Bright F2.2 Large Aperture: Captures significant light intake on big-format sensors, ensuring excellent night-vision performance and minimizing noise.

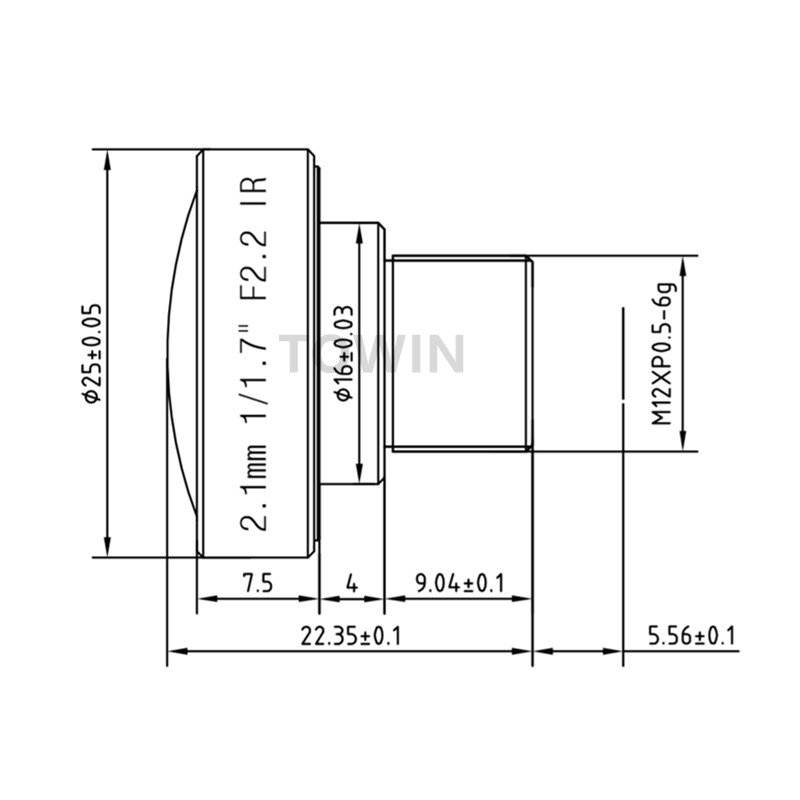

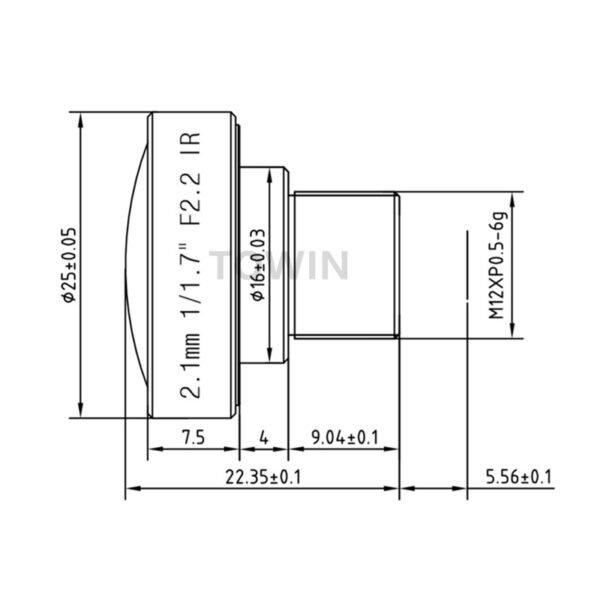

Technical Specifications
| Parameter | Specifications |
|---|---|
| Image Format | Φ5.6mm (1/1.8″ Large Format) |
| Focal Length | 2.1mm |
| Aperture | F2.2 |
| Field of View (F.O.V.) | 180° (D) / 180° (H) / 180° (V) |
| Resolution | 8 Megapixel (8 MP / 4K UHD) |
| Distortion | -94% (Fisheye Distortion) |
| Mount Type | M12 x 0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.1m |
| T.T.L. (Total Track Length) | 27.9mm |
| Infrared Correction | IR Corrected |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This 4K-grade 180° IR corrected fisheye lens is built for extreme visual environments requiring continuous, high-definition panoramic tracking from a single sensor. In public safety, it powers premium ceiling-mounted 360-degree CCTV panoramic dome cameras, high-ceiling logistics sorting hubs, and retail anti-theft matrices. For intelligent transit systems, it provides unparalleled resolution for ITS traffic monitoring lanes and automotive surround-view setups, allowing multi-lane recording and vehicle perimeter tracking. Furthermore, its ultra-short 0.1m M.O.D. and high 8MP clarity make it highly valued for drone & UAV autonomous mapping, autonomous mobile robots (AMR), and factory machine vision automated inspections.
Compatible Device List
- 4K CMOS Sensors: Perfectly optimized for high-end 1/1.8″ 8MP formats, remaining fully backward compatible with 1/2″ and 1/2.8″ sensors (e.g., Sony Starvis 4K series).
- Enterprise Surveillance Hardware: Threads directly into professional wide-angle dome systems, IP security housings, and multi-sensor IoT network platforms.
- Embedded Development Modules: Fully compatible with high-resolution Raspberry Pi modules, NVIDIA Jetson processing kits, and smart custom PCBA boards.
- Industrial Imaging Frameworks: Fits seamlessly into smart factory robotic inspection arms, picking line optical arrays, and AGV positioning boxes.
- Custom OEM Service Tranches: We provide volume tailoring for specific anti-scratch lens coatings, alternative infrared filter bands, and modified mechanical BFL depths.
“Designed for 4K panoramic surveillance and automotive surround-view applications.”
Frequently Asked Questions
Q: Why do I need an IR Corrected lens for this 8MP camera setup?
A: Standard high-resolution lenses experience heavy blur or focus drift when switching between daylight and nighttime IR illumination. This IR corrected lens uses specialized glass element combinations to focus both wavelengths onto the exact same sensor plane, keeping your 8MP images crisp 24/7.
Q: Can this 1/1.8″ large format lens fit onto smaller sensors like 1/2.8″?
A: Yes, it is fully backward compatible. However, because a 1/2.8″ sensor crops the outer edges of the Φ5.6mm optical circle, your actual horizontal and vertical field of view will be tighter than the full 180 degrees.
Q: What type of software processing does a -94% distortion require?
A: A -94% distortion means the lens creates a classic spherical fisheye image view. To transform this into a standard flat rectangular video screen for users, your system ISP or software backend will need to apply a standard de-warping algorithm.
Q: How does the 0.1m M.O.D. benefit automated industrial inspections?
A: The 0.1m Minimum Object Distance allows the camera module to be placed exceptionally close (10cm) to moving production line components while maintaining crystal-clear focus, perfect for tight robotic sorting cages.
Q: Is the construction durable enough for outdoor automotive tracking?
A: Absolutely. The entire barrel is manufactured using high-stability metal alloys that house premium multi-layer glass elements, preventing the focus shifting or image degrading common in cheap plastic optics under harsh sun or frost.
Q: Do you offer bulk customization for the internal filters?
A: Yes, for B2B wholesale orders we can provide tailored adjustments, including integrating specific 650nm IR-cut glass, 850nm/940nm pass filters, or completely clear optical glass depending on your product matrix.
