Description
Upgrade your optical tracking and surveillance systems with this high-performance 3MP 184° Fisheye M12 Lens. Engineered with a 2.4mm fixed focal length and optimized for a large 1/1.8″ image format, this lens delivers seamless 184-degree panoramic coverage across diagonal, horizontal, and vertical planes, completely eliminating blind spots. Featuring advanced IR corrected optics and a bright F2.3 aperture, it ensures crystal-clear, high-contrast 3-megapixel imaging under both daylight and infrared environments without thermal focus shift. Designed as a rugged M12 wide angle lens, it is the perfect solution for CCTV security, automotive surround-view setups, drone & UAV navigation, and machine vision applications.
Product Highlights
- 184° Full Panoramic Hemisphere: Captures a continuous 184-degree field of view across all vectors, allowing a single camera to replace multi-lens arrays and reduce hardware deployment costs.
- 1/1.8″ Large Image Format Optimization: Specially designed to match larger, high-sensitivity CMOS sensors, maximizing light intake and significantly reducing edge dimming or vignetting.
- Day/Night IR Corrected Technology: Features specialized multi-layer optical coatings that align visible and near-infrared focal points on the exact same plane, eliminating nighttime blur.
- 0.1m Macro Minimum Object Distance: Achieves crisp, sharp close-up focus at just 10cm, making it highly effective for close-range industrial scanning and robotic spatial alignment.
- Durable Low-Profile 24mm TTL: Engineered with a compact 24mm Total Track Length (TTL) and a fixed iris mechanism, ensuring high stability in high-vibration automotive and industrial settings.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Image Format | Φ5.4mm (1/1.8″ Large Format) |
| Focal Length | 2.4mm |
| Aperture | F2.3 |
| Field of View (F.O.V.) | 184° (D) / 184° (H) / 184° (V) |
| Resolution | 3 Megapixel (3 MP) |
| Distortion | -99% (Fisheye Distortion) |
| Mount Type | M12 x 0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.1m |

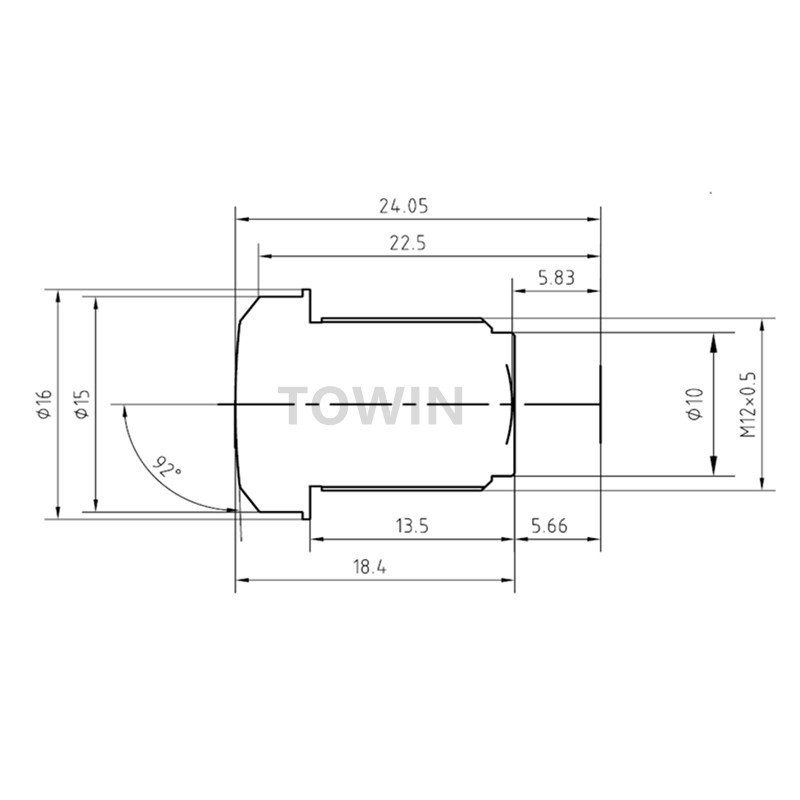

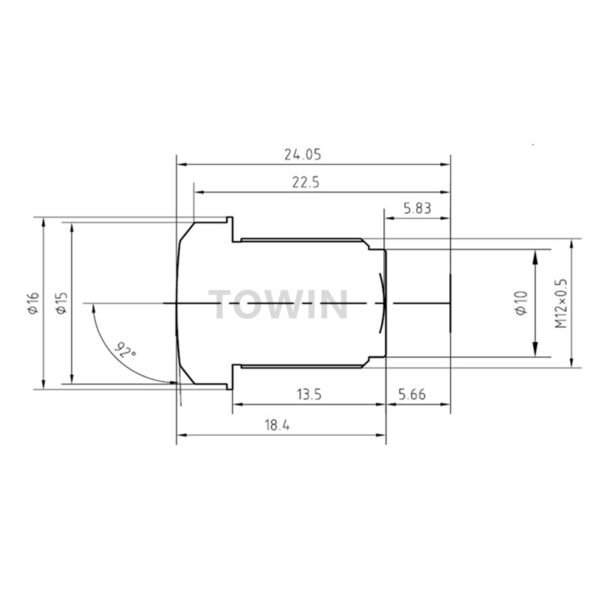

| T.T.L. (Total Track Length) | 24mm |
| Infrared Correction | IR Corrected |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This industrial-grade 184° IR corrected fisheye lens is built for extreme monitoring environments requiring an expanded spatial field from a single sensor placement. In commercial sectors, it powers ceiling-mounted 360-degree CCTV panoramic security cameras, high-ceiling logistics sorting warehouses, and retail anti-theft matrices. For intelligent transit systems, it provides exceptional stability for ITS traffic monitoring lanes and automotive surround-view setups, providing continuous perimeter tracking for larger commercial fleets and heavy machinery. Additionally, its tight 0.1m M.O.D. renders it invaluable for drone & UAV autonomous navigation, automated guided vehicle (AGV) path mapping, and high-speed robotic machine vision sorting assemblies.
Compatible Device List
- Large CMOS Sensors: Optimally configured for premium 1/1.8″ formats while remaining fully backward compatible with 1/2″ and 1/2.8″ high-density sensors (including Sony Starvis and OmniVision series).
- Security Camera Frameworks: Threads natively into wide-angle outdoor dome housings, IP security camera assemblies, and multi-sensor IoT network platforms.
- Embedded & Smart Devices: Compatible with Raspberry Pi HQ camera modules, NVIDIA Jetson developer kits, and mainstream smart video doorbell enclosures without bracket modifications.
- Industrial Automation Rigs: Fits seamlessly into smart factory inspection lines, autonomous logistics sensors, and custom robotic vision arms.
- Flexible OEM/ODM Customization: We offer tailored production runs adjusting specific IR-cut parameters, anti-reflection layer coatings, and custom mechanical back focal lengths (BFL) for bulk orders.
“Designed for 360-degree panoramic surveillance and automotive surround-view applications.”
Frequently Asked Questions
Q: Why is an IR Corrected lens necessary for my 3MP camera setup?
A: Standard lenses suffer from focus drift when switching from daytime light to nighttime infrared light because different light wavelengths refract differently. This IR corrected lens uses specialized optics to lock both focal points on the exact same plane, keeping your 3MP images crisp 24/7.
Q: Can this 1/1.8″ large format lens fit onto smaller sensors like 1/2.8″?
A: Yes, it is fully backward compatible with 1/2.7″ and 1/2.8″ sensors. Smaller sensors crop Φ5.4mm optical circle, narrowing diagonal, horizontal & vertical FOV below 184°.
Q: What type of software processing does a -99% distortion require?
A: A -99% distortion means the lens creates a classic spherical fisheye image view. Your ISP/software backend needs a standard de‑warping algorithm for flat rectangular video streams.
Q: How does the 0.1m M.O.D. benefit automated industrial inspections?
A: The 0.1m Minimum Object Distance allows the camera module to be placed exceptionally close (10cm) to moving production line components while maintaining crystal-clear focus, perfect for tight robotic sorting cages.
Q: Is the construction durable enough for outdoor automotive tracking?
A: Absolutely. The entire barrel is manufactured using high-stability metal alloys that house premium multi-layer glass elements, preventing the focus shifting or image degrading common in cheap plastic optics under harsh sun or frost.
Q: Do you offer bulk customization for the internal filters?
A: Yes, for B2B wholesale orders we can provide tailored adjustments, including integrating specific 650nm IR-cut glass, 850nm/940nm pass filters, or completely clear optical glass depending on your product matrix.
