Description
Upgrade your optical systems with this premium 3MP 190° Fisheye M12 Lens, precision-engineered for advanced panoramic capture. Featuring a short 1.9mm fixed focal length and optimized for a large 1/1.8″ image format, this lens provides an extraordinary 190-degree field of view to eliminate critical blind spots. Designed with state-of-the-art IR corrected optics, it ensures flawless, high-contrast 3-megapixel imaging during both day and night transitions without thermal focus shift. Whether integrated into CCTV security setups, automotive surround-view cameras, drone vision systems, or machine vision equipment, this rugged M12 wide angle lens provides unmatched panoramic performance.
Product Highlights
- 190° Hemispherical Coverage: Captures a continuous 190-degree ultra-wide scene, replacing multiple camera setups to cut down hardware and deployment costs.
- 1/1.8″ Large Format Integration: Fully optimized for premium big-format CMOS sensors, ensuring maximum light transmission and reducing edge dimming.
- Day/Night IR Corrected Optics: Eliminates color aberration under near-infrared lighting, guaranteeing perfectly focused night vision imaging without focus drift.
- 0.1m Extreme Close Focus: Features an ultra-short 0.1m Minimum Object Distance, making it highly effective for close-range industrial scanning and low-profile tracking.
- Rugged Fixed-Focal Reliability: Built with durable optical materials and a fixed iris/focal mechanism to withstand the continuous vibrations of harsh industrial environments.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Image Format | Φ5.4mm (1/1.8″ Large Format) |
| Focal Length | 1.9mm |
| Aperture | F2.3 |
| Field of View (F.O.V.) | @Φ5.4: 190° / @Φ4.22: 132° |
| Resolution | 3 Megapixel (3 MP) |
| Distortion | -105% (Fisheye Distortion) |
| Mount Type | M12 x 0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.1m |

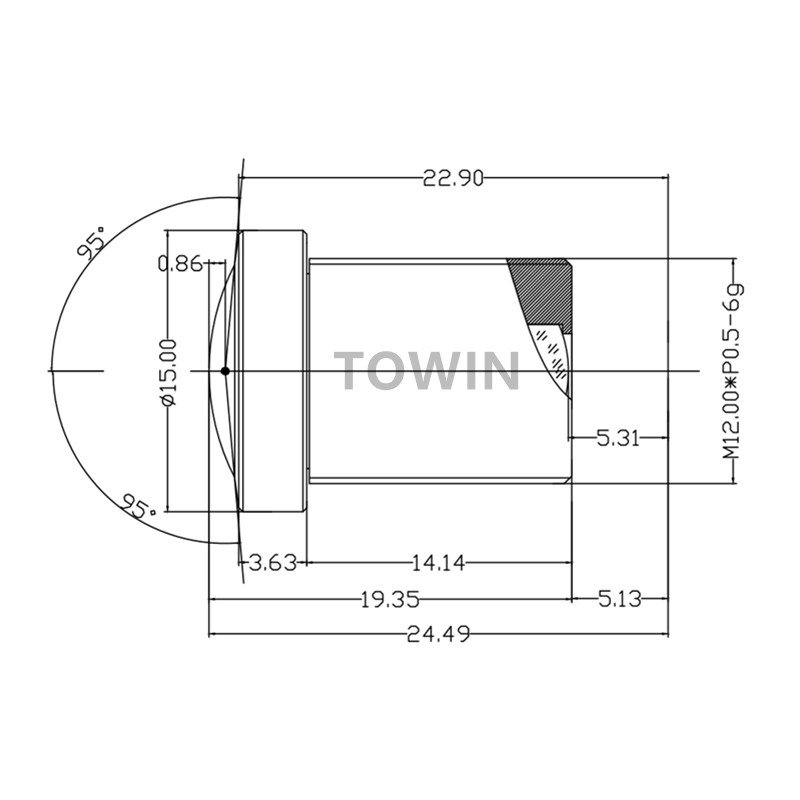

| T.T.L. (Total Track Length) | 24.49mm |
| Infrared Correction | IR Corrected |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This industrial-grade 190° IR corrected fisheye lens is built for extreme monitoring environments requiring an expanded spatial field from a single sensor placement. In commercial spaces, it powers ceiling-mounted 360-degree CCTV panoramic security cameras, high-ceiling warehouse tracking, and smart video doorbells. For transportation sectors, it delivers optimal performance for ITS intelligent traffic monitoring, 360 ADAS bird’s-eye automotive arrays, and heavy machinery blind-spot safety recording. Additionally, its tight 0.1m M.O.D. renders it invaluable for drone & UAV autonomous navigation, automated guided vehicle (AGV) path mapping, and high-speed robotic machine vision sorting assemblies.
Compatible Device List
- High-End CMOS Sensors: Perfectly matched with premium 1/1.8″ image formats while remaining completely backward compatible with 1/2″ and 1/2.8″ high-density sensors (such as Sony Starvis and OmniVision series).
- Enterprise Surveillance Kits: Directly threads into wide-angle outdoor dome housings, IP security camera assemblies, and multi-sensor IoT frameworks.
- Embedded & Smart Devices: Compatible with Raspberry Pi HQ modules, NVIDIA Jetson processing setups, and mainstream smart video doorbell housings without modifying the lens mount.
- Industrial Automation Rigs: Fits seamlessly into smart factory inspection lines, autonomous logistics sensors, and custom robotic vision mounts.
- Tailored B2B Customization: We offer tailored production runs adjusting specific IR-cut parameters, anti-reflection layer coatings, and custom mechanical back focal lengths (BFL).
“Designed for 360-degree panoramic surveillance and automotive surround-view applications.”
Frequently Asked Questions
Q: Why is the IR Corrected feature important for this 1.9mm lens?
A: Standard lenses suffer from focus drift when switching from daytime light to nighttime infrared light because different light wavelengths refract differently. This IR corrected lens uses specialized optics to lock the focal point on the exact same plane, guaranteeing sharp day and night video.
Q: How does the field of view (F.O.V.) change based on the sensor image circle?
A: At a full Φ5.4mm image circle coverage, this lens delivers its maximum 190° F.O.V. If your camera sensor crops the image to a Φ4.22mm field, the field of view naturally transitions to a tighter 132° F.O.V.
Q: Can this 1/1.8″ format lens fit onto a 1/2.8″ security sensor?
A: Yes, it is fully backward compatible with 1/2.7″ and 1/2.8″ sensors. However, because a smaller sensor uses a smaller area of the optical field, the outer edges of the 190° view will be cropped.
Q: What type of image processing does a -105% distortion require?
A: A -105% distortion profile generates a curved, ultra-wide fisheye circular effect. To view it as a flat rectangular video stream, your backend software or ISP will need to apply a standard de-warping algorithm.
Q: Can this lens handle close-up item inspections in factory automation?
A: Absolutely. Thanks to its 0.1m Minimum Object Distance (M.O.D.), it can easily focus on objects just 10cm away from the lens tip, making it ideal for compact robotic assembly lines.
Q: Is this lens rugged enough for external automotive installations?
A: Yes. The lens barrel is built with high-stability metal alloys that withstand weather shifts and operational vibration, maintaining strict alignment across extreme temperature cycles.
