Description

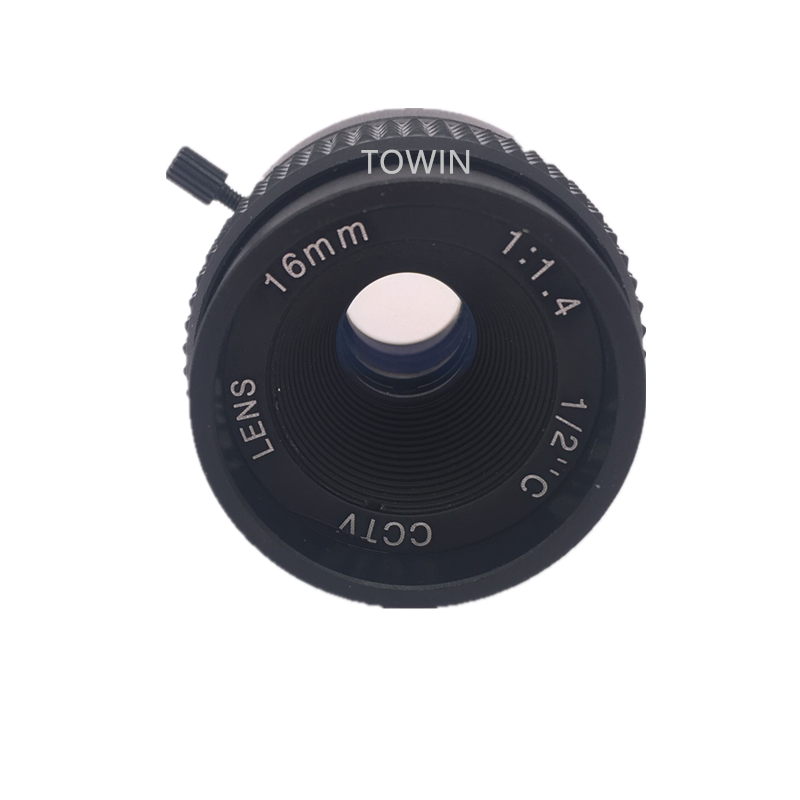

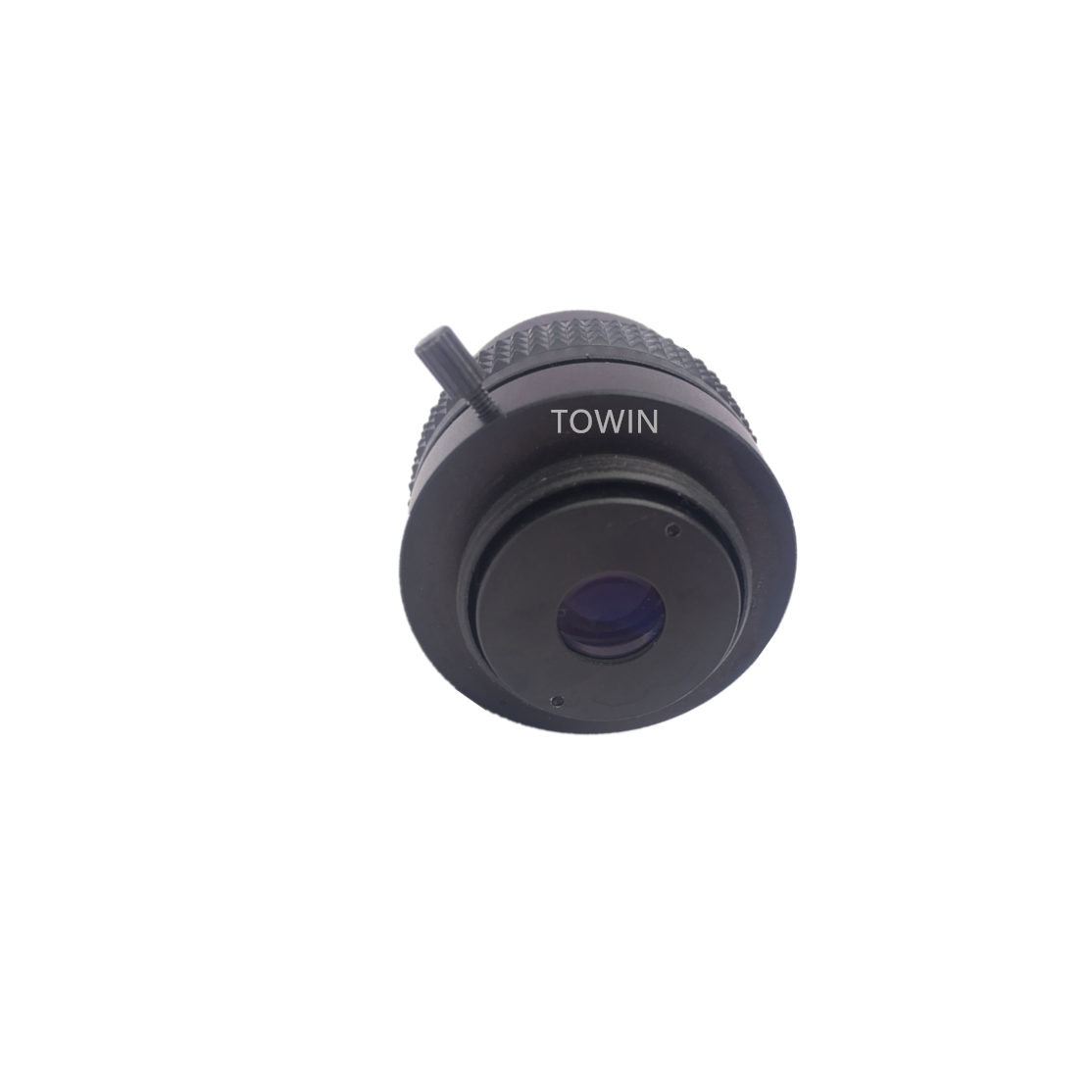

This 1/2″ 16mm fixed focal C-Mount lens features F1.4 large aperture and 23° H.F.O.V., adopting manual iris and manual focus design with compact body size. Optimized for industrial machine vision, CCTV surveillance, ITS traffic monitoring and factory automation scenarios, this C-Mount lens delivers stable low-light performance, clear imaging and high compatibility with mainstream CMOS sensors, being a cost-effective choice for industrial and security optical systems.
Product Core Highlights
- F1.4 large aperture boosts low-light imaging, solving dim environment blurriness
- 16mm fixed focal with 23° narrow H.F.O.V., ideal for long-distance target capture
- Standard C-mount design, plug-and-play with most industrial vision and surveillance cameras
- 0.3m short M.O.D., supports close-range precision detection and focusing
- Compact Φ37×36.9mm size, easy installation in limited equipment space
Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Format | 1/2″ |
| Focal Length | 16mm |
| H.F.O.V. | 23° |
| Resolution | MP |
| Aperture | F1.4 |
| Mount | C |
| Iris | Manual |
| Focus | Manual |
| Zoom | Fixed |
| M.O.D. | 0.3m |

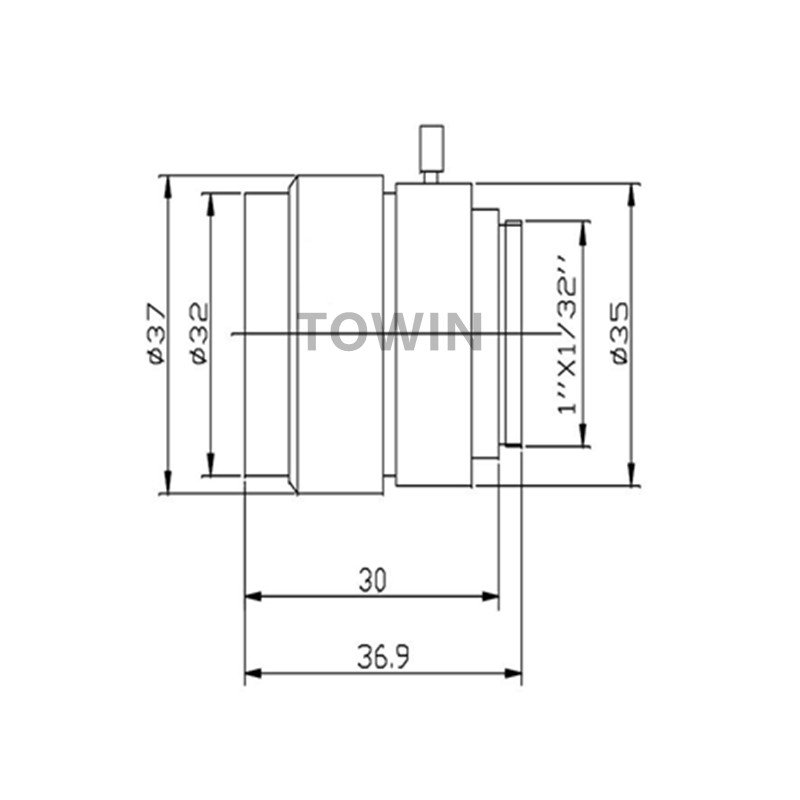

| Dimension | Φ37×36.9mm |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
Core Application Scenarios
This Machine Vision Lens and FA lens is specially designed for long-distance fixed-point monitoring and high-precision industrial detection. It is widely used in highway traffic license plate recognition, factory assembly line part size inspection, workshop safety monitoring, industrial robot visual positioning, and outdoor fixed-point security surveillance. The 23° narrow viewing angle effectively avoids redundant surrounding interference, ensures centralized imaging of target objects, and maintains clear picture details even in weak light workshops and outdoor dusk environments. Its fixed focal and manual adjustment structure adapts to long-term stable operation in harsh industrial and outdoor scenes, no frequent parameter calibration required.
Compatible Equipment List
Compatible with 1/2″ mainstream CMOS image sensors, perfectly matching industrial machine vision cameras, ITS traffic monitoring cameras, high-definition CCTV surveillance cameras, and factory automation visual detection modules. It supports direct assembly with standard C-mount equipment without additional adapter brackets, and can be flexibly embedded in small-sized industrial detection devices and fixed-point security monitoring equipment. Custom parameter adaptation is available for special industrial vision system needs.
Designed for industrial machine vision and traffic surveillance application.
FAQs
Q: What sensor size does this C-Mount lens support?
A: It perfectly matches 1/2″ image format and is compatible with mainstream MP CMOS sensors.
Q: Is this lens a varifocal or fixed focal type?
A: It is a Fixed Focal Lens with 16mm fixed focal length, no zoom function.
Q: Can it work in low light conditions?
A: Yes, F1.4 large aperture greatly improves light intake for clear low-light imaging.
Q: What is the minimum object distance for focusing?
A: The M.O.D. is 0.3m, supporting close-range precision focusing and detection.
Q: Does this industrial lens comply with international certification standards?
A: It passes RoHS and ISO9001 certification, meeting EU and domestic security access norms.
