Description

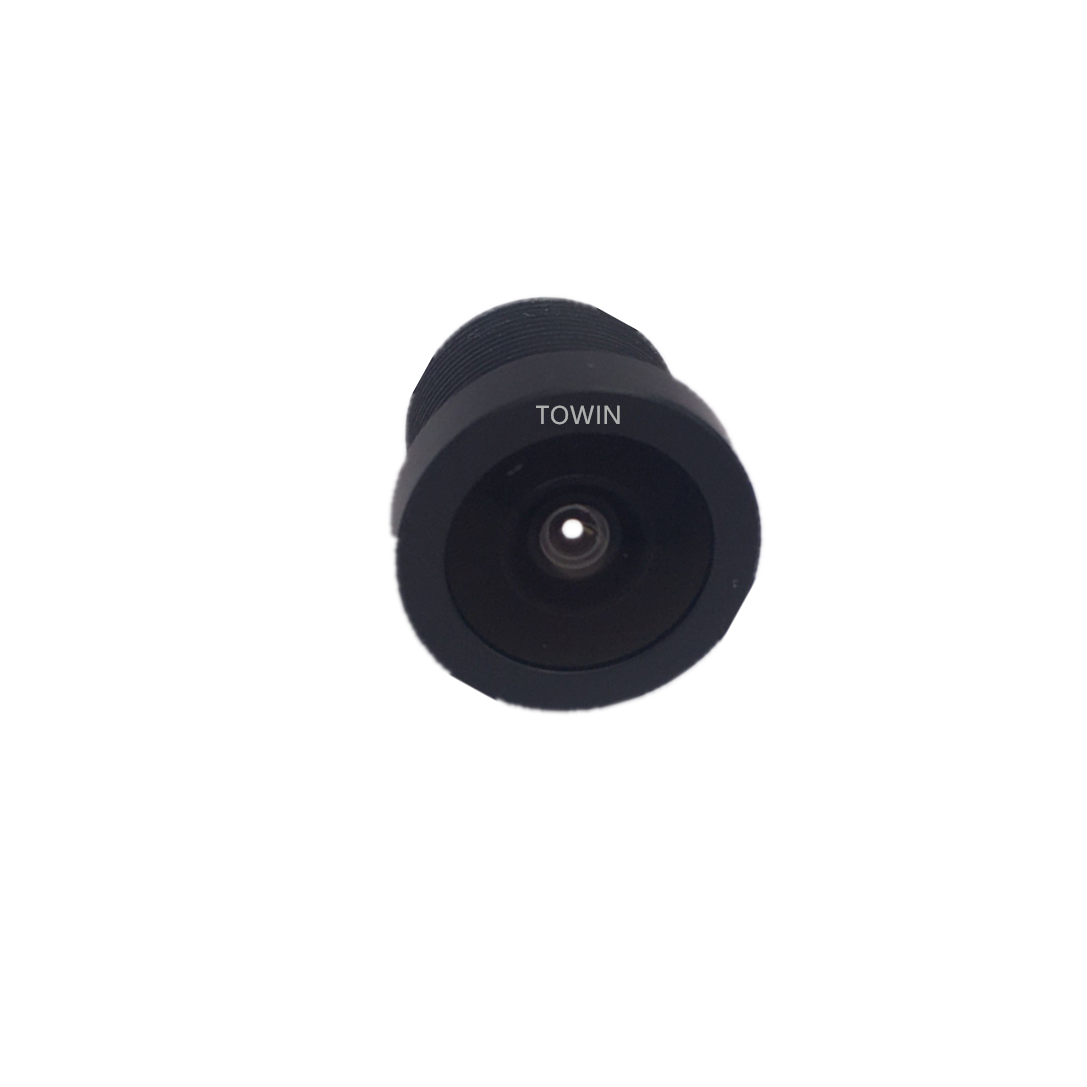

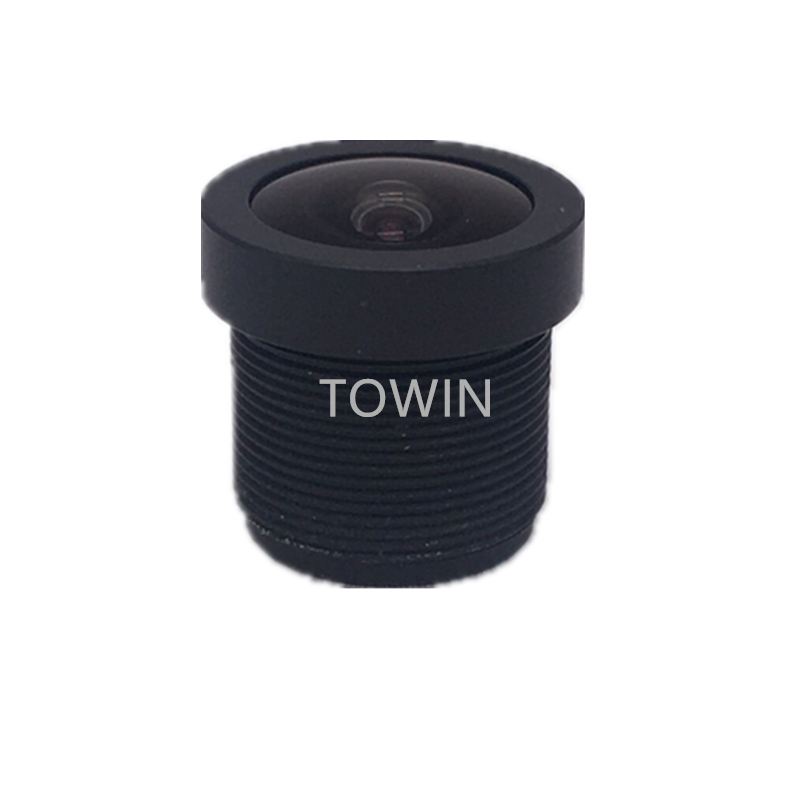

This 1/3″ 2.1mm M12 wide angle lens features a 149° ultra-wide field of view and 6G optical construction, delivering clear distortion-controlled imaging for compact smart devices. Designed for CCTV Lens, Machine Vision Lens and Automotive Lens applications, it supports manual focus and fixed iris, perfectly matching mainstream CMOS sensors for mass device integration.
Product Core Highlights
- 149° ultra-wide viewing angle covers no-blind-area monitoring, solving narrow space installation limitation
- 6G optical structure improves light transmission and reduces image distortion for sharper imaging
- F2.5 large aperture ensures stable imaging performance in low-light indoor and outdoor environments
- Standard M12X0.5 mount, plug-and-play with most smart camera modules without bracket modification
- Fixed focal & fixed zoom design, stable parameter output for long-term industrial and surveillance use

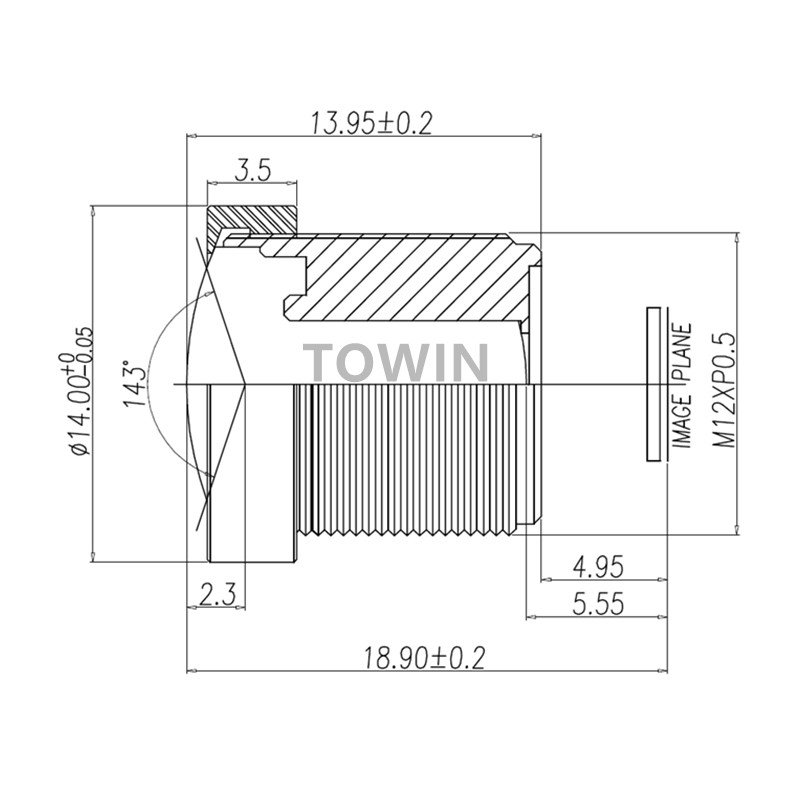

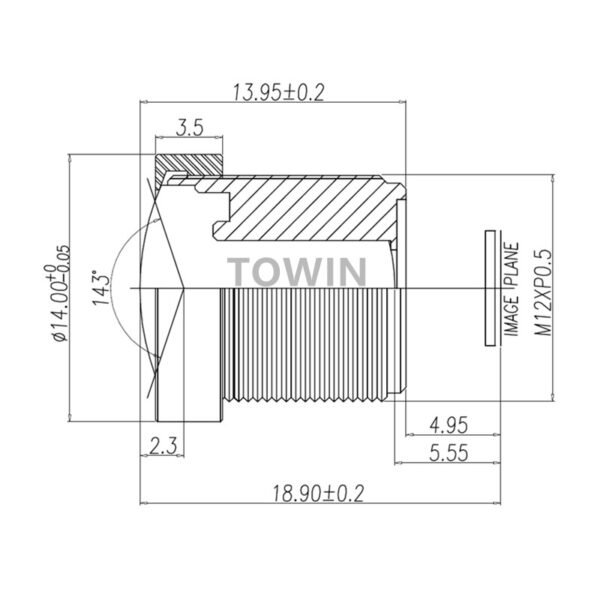

Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Format | 1/3″ |
| Focal Length | 2.1mm |
| Field of View (D/H/V) | 149° / 117° / 86° |
| FOV (@AR0330) | 143° / 109° / 81° |
| Resolution | Megapixel Level |
| Aperture | F2.5 |
| Mount | M12X0.5 |
| Iris | Fixed |
| Focus | Manual |
| Zoom | Fixed |
| B.F.L. | 5.55mm |
| M.O.D. | 0.1m |
| Construction | 6G |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
This ultra-wide angle M12 lens is tailored for scenarios requiring panoramic coverage and miniaturized installation. It is widely used in home smart video doorbells, community access control monitoring, indoor and outdoor CCTV surveillance, automotive rear view and panoramic surround imaging, industrial machine vision detection, as well as drone aerial photography and terrain mapping. The 0.1m minimum object distance supports close-range detail capture, ideal for narrow spaces such as elevators, warehouses, and small IoT device built-in imaging. Its 6G optical design maintains stable picture quality in long-time continuous working environments, perfectly adapting to commercial and industrial all-weather use demands.
Compatible Devices:
- Compatible with 1/3″ mainstream CMOS sensors including AR0330
- Matches smart doorbell modules, mini CCTV cameras, industrial vision sensors
- Adapts UAV aerial modules, automotive panoramic camera kits, small medical auxiliary imaging equipment
- Supports custom integration for IoT smart monitoring and factory automation vision systems
Designed for wide angle surveillance, machine vision, automotive and drone imaging application.
FAQs
Q: What sensor size does this M12 lens support?
A: It is optimized for 1/3″ image format and perfectly compatible with AR0330 sensor.
Q: Is this lens suitable for low-light environment use?
A: Yes, F2.5 large aperture enhances light intake for clear night imaging.
Q: Can it be used for automotive rear view cameras?
A: Absolutely, 149° ultra-wide angle provides full panoramic view for vehicle safety monitoring.
Q: Does this lens support zoom adjustment?
A: No, it is a fixed focal and fixed zoom lens with stable constant parameters.
Q: What is the minimum working distance of the lens?
A: The minimum object distance is 0.1m, suitable for close-range machine vision detection.
