Description
Maximize your visual coverage with our 1/2.5″ 5MP 3mm M12 Fisheye Wide Angle Lens. Engineered for high-definition surveillance, automotive safety, and aerial monitoring, this premium optical component delivers a crisp 5-Megapixel resolution across a sweeping 110° diagonal field of view. Featuring a compact Φ14mm form factor, an optimized F2.5 aperture, and integrated IR technology, it ensures superior low-light performance and eliminates blind spots effectively. It serves as the ultimate high-reliability selection for developers upgrading security dome modules, automotive backup systems, and ultra-wide compact camera installations.
Key Features & Product Highlights
- 110° Ultra-Wide Coverage: Provides an expansive 110° diagonal and 95° horizontal field of view, significantly expanding the monitoring area to eliminate critical blind spots.
- 5MP High-Definition Clarity: Tailored precisely for high-density 1/2.5″ CMOS sensors, ensuring razor-sharp details and rich color reproduction without distortion blurring.
- Day & Night IR Optimization: Features built-in infrared cross-focus tuning (+IR) to prevent focus drift when switching between natural daylight and night vision modes.
- Rugged 2G2P Hybrid Optics: Combines 2 premium glass elements and 2 specialized plastic elements to deliver excellent light transmission while minimizing thermal focus shift.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.5″ |
| Focal Length | 3mm |
| Field of View (F.O.V.) | 110°(D) / 95°(H) / 74°(V) |
| Resolution | 5 Megapixel (5 MP) |
| Optical Distortion | < -18% (Barrel/Fisheye Distortion) |
| Aperture | F2.5 |
| Mount Type | M12 × 0.5 |
| Iris Type | Fixed |
| M.O.D. (Minimum Object Distance) | 0.1m |
| T.T.L. (Total Track Length) | 14.52mm |

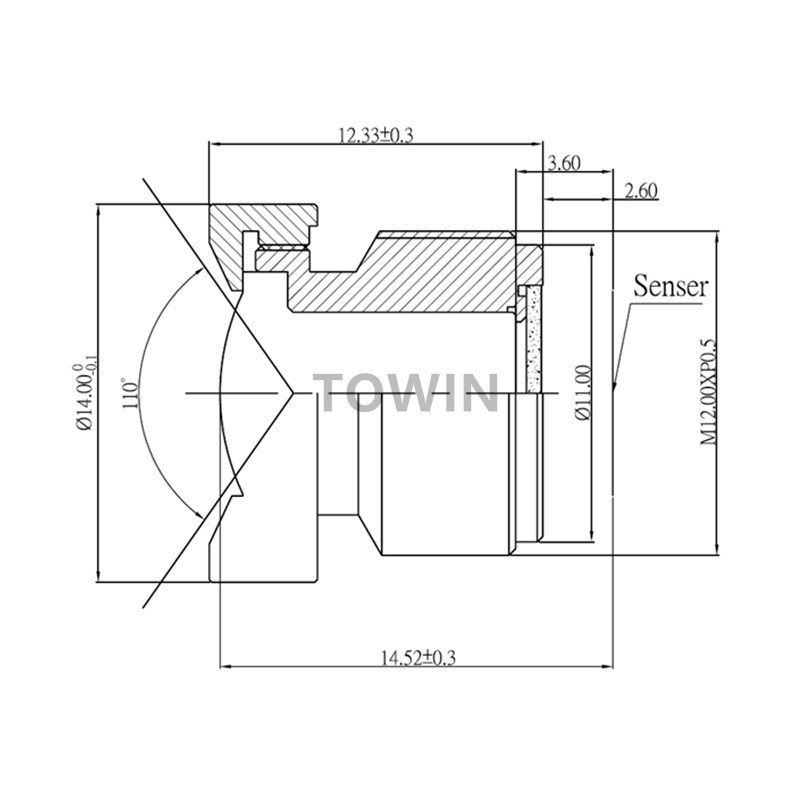

| Dimensions | Φ14 × 12.33mm |
| Lens Component | 2G + 2P + IR (2 Glass + 2 Plastic Elements + Infrared Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This 5MP ultra-wide M12 lens is purpose-built for applications requiring maximum area capture within space-constrained hardware environments. It excels as a high-performance panoramic optical module for smart home security hardware, such as smart video doorbells, courtyard security cameras, and apartment entryway intercoms. Its resilient 2G2P hybrid design withstands severe outdoor temperature variations, making it highly dependable for automotive safety networks, including rear-view backup cameras, 360-degree around-view monitoring (AVM) systems, and fleet dashcams. Additionally, its wide-angle fisheye characteristic provides extensive horizontal situational awareness for lightweight drone photography, consumer action cameras, and panoramic warehouse surveillance setups.
Compatible Device List
- Sensors: Fully compatible with mainstream 1/2.5″, 1/2.7″, and 1/3″ CMOS image sensors (including Sony IMX series, Onsemi, and OmniVision platforms).
- Smart Home Hardware: Perfectly integrates with Tuya Smart IoT cameras, Xiaomi smart doorbells, and high-end video intercom camera boards.
- Automotive & Security Modules: Seamlessly fits standard aftermarket vehicle camera shells and mainstream commercial dome/bullet IP camera modules.
- Customization: Supports bespoke tailoring for anti-vibration barrels, alternative IR-cut filter coatings, or custom field-of-view tuning to match exact project requirements.
“Designed for Panoramic Security Surveillance, Automotive Rear-View, and Ultra-Wide IoT application.”
Frequently Asked Questions
Q: Why does this lens have an optical distortion rating of <-18%?
A: This lens is an ultra-wide angle/fisheye lens. To achieve a massive 110° diagonal coverage in a compact design, a certain level of barrel distortion is optically necessary. This allows the camera to maximize tracking coverage and capture entire rooms or multi-lane road entryways, which can be easily corrected digitally if needed.
Q: What is the benefit of the 2G2P lens component structure?
A: The hybrid 2 Glass + 2 Plastic element construction balances cost and performance. The 2 glass elements provide high scratch resistance and thermal stability to prevent image defocusing under direct summer sunlight, while the 2 plastic elements utilize precision molding to correct optical aberrations.
Q: Will this lens maintain sharp focus during nighttime operation?
A: Yes. This lens features an integrated IR filter structure and specialized optical coatings designed to minimize focus shifts between visible light and infrared light. When paired with external 850nm or 940nm infrared LEDs, it delivers clear and crisp night vision.
Q: Can I use this 1/2.5″ format lens on a smaller 1/3″ sensor module?
A: Absolutely. It is fully backward-compatible. When installed on a smaller 1/3″ sensor, the image crop factor will reduce the field of view slightly (acting like a crop mechanism), but you will gain excellent center resolution with zero corner vignetting.
Q: How close can this wide-angle lens focus on a target?
A: The Minimum Object Distance (M.O.D.) is 0.1 meters (10 cm). This allows the camera module to capture extremely sharp images of nearby objects or hand-held IDs, which is essential for video doorbells and biometric access turnstiles.
Q: Is the F2.5 aperture suitable for outdoor low-light conditions?
A: Yes, an F2.5 aperture is relatively bright for an ultra-wide board lens. It permits a high volume of light transmission to the CMOS sensor, which reduces digital image noise and ensures bright, low-noise footage at dusk or in dimly lit hallways.
