Description
Achieve professional-grade 4K imaging precision with our 1/2.5″ 8MP 3.4mm M12 Low Distortion Lens. Expertly engineered for high-resolution machine vision, factory automation (FA), and advanced drone photography, this industrial-grade optical lens offers a full 8-Megapixel resolving power. Delivering a wide 94° diagonal field of view alongside an exceptional ultra-low television distortion profile (<1%), it guarantees geometrically accurate data capture with virtually no edge warping or barrel bending. Featuring a standard M12x0.5 mount and a robust 8G all-glass premium optical structure, it provides the perfect compact solution for upgrading smart vision systems that demand strict measurement accuracy and reliable environmental stability.
Key Features & Product Highlights
- 8MP 4K Ultra-HD Resolving Power: Optically optimized for high-density 1/2.5″ CMOS sensors (like IMX274) to deliver ultra-sharp imaging and crisp contrast without pixel degradation.
- 94° Wide Angle with <1% Distortion: Achieves an expansive 94° diagonal view while suppressing geometric distortion below 1% for flat, realistic images that require zero digital correction.
- 8G All-Glass Premium Optics: Constructed with 8 high-grade precision glass elements (8G) to ensure superior light transmission, excellent clarity, and total prevention of thermal focus drift.
- 0.1m Minimum Object Distance: Boasts a remarkably short M.O.D. of 0.1m, enabling crystal-clear close-up macro scanning and wide background depth concurrently for versatile tracking.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.5″ |
| Focal Length | 3.4mm |
| Field of View (F.O.V. @ IMX274) | 94°(D) / 84°(H) / 55°(V) |
| Resolution | 8 Megapixel (8 MP / 4K UHD) |
| TV Distortion | < 1% |
| Aperture | F2.8 |
| Mount Type | M12 × 0.5 |
| Iris Type | Fixed |
| M.O.D. (Minimum Object Distance) | 0.1m |

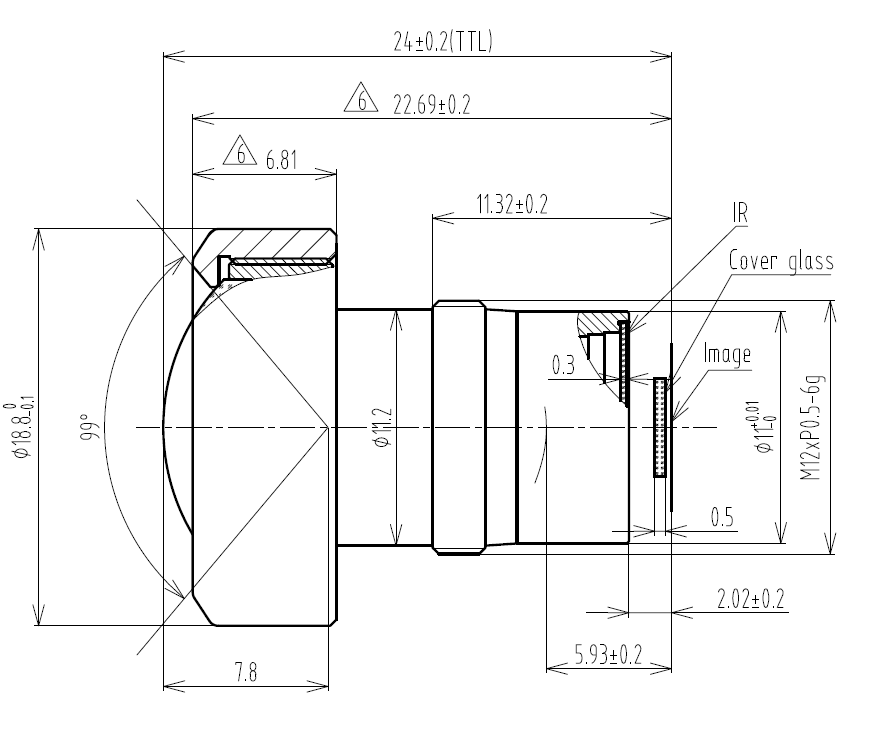

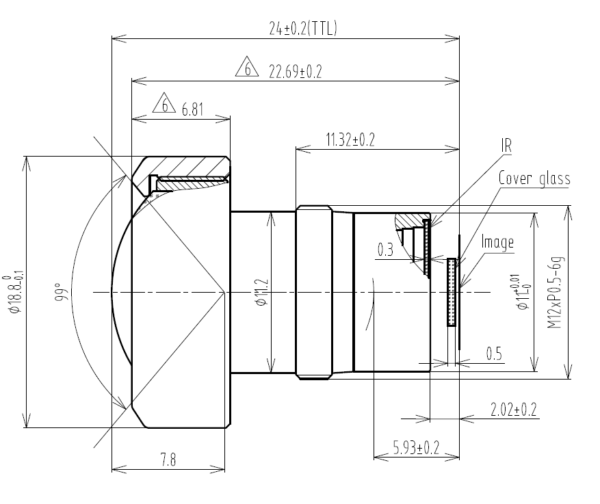

| T.T.L. (Total Track Length) | 24mm |
| Lens Construction | 8G + IRF (8 All-Glass Elements + Infrared Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This 8MP low distortion fixed focal lens is meticulously tailored for high-end optical systems where spatial dimensions and data accuracy are paramount. It serves as an exceptional choice for industrial machine vision setups, such as PCB component solder joint inspection, automatic optical inspection (AOI) bench-tops, and high-precision robotic picking arms. The wide 94° field of view and 4K capability make it highly reliable for Drone & UAV aerial photogrammetry, GIS land surveying, and agricultural remote sensing. Furthermore, its rugged 8G all-glass structure withstands extreme outdoor temperature variations smoothly, making it excellent for intelligent traffic systems (ITS), commercial facial recognition gates, and smart city perimeter safety networks.
Compatible Device List
- Sensors: Perfectly optimized for high-density 1/2.5″ and 1/3″ CMOS image sensors, seamlessly matching Sony IMX274, IMX317, and similar premium OmniVision or Onsemi platforms.
- Industrial Cameras: Fits standard GigE/USB3.0 industrial board cameras, smart vision sensors, and high-resolution embedded developer kits like Raspberry Pi HQ cameras.
- Aerial Hardware: Directly compatible with specialized lightweight drone camera modules, commercial action cameras, and customized sports DV boards.
- OEM Customization: Supports tailored changes for anti-reflective coatings, specific dual-band pass filters, or specialized metal barrel threads to match custom enclosures.
“Designed for Drone Aerial Mapping, High-Resolution Machine Vision, and 4K Industrial Inspection applications.”
Frequently Asked Questions
Q: What makes a <1% TV distortion profile critical for this lens?
A: Standard wide-angle lenses suffer from severe barrel distortion where straight edges appear curved. A profile under 1% means the image is virtually distortion-free, allowing AI vision algorithms and mapping software to measure distances accurately without CPU-heavy digital lens corrections.
Q: Why is an 8G all-glass structure better than hybrid or plastic options?
A: Plastic components can slightly deform or shift focus when exposed to heat. An 8G all-glass construction provides excellent thermal stability, ensuring the camera stays in sharp 8MP focus under direct outdoor sunlight, harsh factory environments, or high automotive temperatures.
Q: Can this 1/2.5″ lens be used on a smaller 1/3″ sensor module?
A: Yes, it is fully backward-compatible with smaller sensors like 1/2.7″, 1/2.8″, and 1/3″ models.
Q: What is the benefit of the integrated IRF (IR-cut filter)?
A: The built-in Infrared Cut Filter (IRF) blocks unwanted infrared light wavelengths during daylight hours. This prevents the camera sensor from suffering color distortion or red tints, ensuring color-accurate imaging for commercial inspection and outdoor mapping.
Q: How close can an object be for this lens to achieve sharp focus?
A: The Minimum Object Distance (M.O.D.) is 0.1 meters (10 cm). This exceptionally short working distance allows the lens to achieve ultra-sharp focus on nearby objects or passing targets, making it highly effective for macro inspection and conveyor belt tracking.
Q: Is the F2.8 aperture suitable for outdoor or factory lighting conditions?
A: Yes, an F2.8 aperture strikes a perfect balance. It provides a deeper depth of field (DoF), meaning a larger vertical zone in front of the camera remains perfectly in focus at the same time, while still letting in ample light for 8MP high-speed sensors.
