Description
Achieve exceptional panoramic clarity and micro-precision with our 1/2.5″ 5MP 2.9mm M12 Low Distortion Lens. Expertly engineered for high-resolution machine vision, factory automation (FA), and advanced industrial inspection, this commercial-grade optical component delivers a full 5-Megapixel resolving power. Featuring a sweeping 102° diagonal wide-angle field of view alongside an ultra-low optical distortion profile (<-1%), it ensures clean, true-to-life geometric tracking with virtually zero edge warping. Built with a 6E all-element premium structure and an integrated IR-cut filter, this lens also boasts a groundbreaking 0.01m minimum object distance, making it the ultimate solution for compact systems demanding wide-area coverage and extreme close-up clarity.
Key Features & Product Highlights
- 102° Wide View with <1% Distortion: Delivers a sweeping 102° diagonal field of view while suppressing geometric distortion below 1% for flat, realistic imagery.
- Extreme 1cm Micro Focusing: Features a groundbreaking Minimum Object Distance (M.O.D.) of just 0.01m, allowing razor-sharp focus for macro industrial scanning.
- 5MP HD Optical Performance: Optimized specifically for 1/2.5″ high-density CMOS sensors to deliver ultra-sharp imaging and rich detail capture across the entire frame.
- Integrated IR-Cut Filter: Equipped with a premium 6E composition and built-in IR-cut filter to eliminate color shift and provide accurate daytime color fidelity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.5″ |
| Focal Length | 2.9mm |
| Field of View (F.O.V.) | 102°(D) / 85°(H) / 68°(V) |
| Resolution | 5 Megapixel (5 MP) |
| Optical Distortion | < -1% |
| Aperture | F4.0 |
| Mount Type | M12 × 0.5 |
| Iris Type | Fixed |
| M.O.D. (Minimum Object Distance) | 0.01m (1cm) |
| T.T.L. (Total Track Length) | 20.9mm |

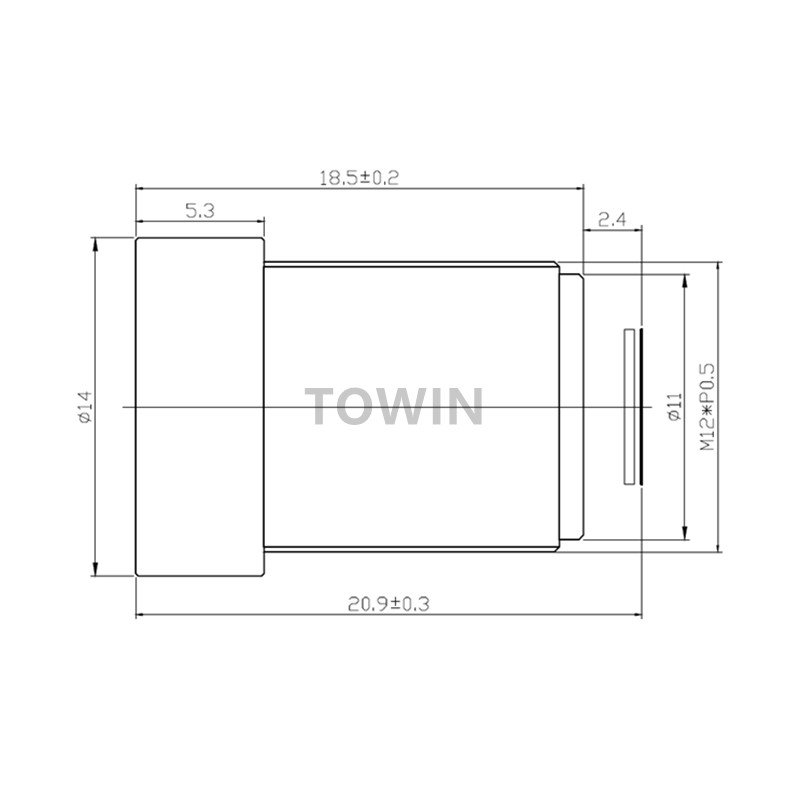

| Dimensions | Φ14 × 18.5mm |
| Lens Component | 6E + IR cut (6 All-Element Structure + Infrared Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This 5MP low distortion wide-angle lens is meticulously tailored for applications requiring a combination of broad field coverage and close-up geometric precision. Its defining 1cm micro focus and 85° horizontal view make it exceptionally effective for industrial machine vision setups, such as PCB solder joint inspection, automatic optical inspection (AOI) bench-tops, and handheld high-density 2D barcode scanners. Additionally, its low distortion profile is perfect for premium biometric facial recognition terminals, smart retail self-checkout kiosk systems, and multi-lens panoramic stitching arrays where edge-warping would corrupt database accuracy.
Compatible Device List
- Sensors: Optimized for premium 1/2.5″ and 1/3″ CMOS image sensors, seamlessly matching Sony IMX series, Onsemi, and OmniVision platforms.
- Industrial Cameras: Fits compact USB3.0/GigE industrial board cameras, smart vision sensors, and embedded developer kits like Raspberry Pi HQ cameras.
- Smart Terminals: Drop-in upgrade for high-end optical ID scanners, commercial turnstile access modules, and medical desktop imaging sub-assemblies.
- OEM Customization: Supports tailored changes for specific bandpass filters, specialized lens coatings, or custom-length metal barrels to suit compact enclosures.
“Designed for Macro Industrial Inspection, Machine Vision, and Low-Distortion Wide-Angle applications.”
Frequently Asked Questions
Q: What makes the 0.01m Minimum Object Distance (M.O.D.) special?
A: Most wide-angle M12 lenses cannot focus on objects closer than 10cm or 20cm without blurring. An M.O.D. of 0.01m (1cm) means this lens can be positioned almost touching a circuit board, document, or biological sample and still achieve a perfectly sharp image, which is a major advantage for macro industrial scanning.
Q: How does a wide 102° field of view achieve less than 1% distortion?
A: Standard wide-angle lenses suffer from fish-eye distortion where straight lines curve aggressively. This lens utilizes high-precision optical element mapping to correct incoming light rays, keeping geometric distortion under 1% so that rectangles and lines remain flat and true-to-life on the sensor.
Q: What is the benefit of the integrated IR-cut filter?
A: The built-in IR-cut filter blocks unwanted infrared light wavelengths during daylight hours. This prevents the camera sensor from suffering color distortion or red tints, ensuring color-accurate imaging for commercial and automated scanning systems.
Q: Can I use this 1/2.5″ lens on a 1/3″ sensor module?
A: Yes, it is fully backward-compatible with smaller sensors like 1/2.7″, 1/2.8″, and 1/3″ models. When paired with a smaller sensor, your field of view will simply narrow slightly due to the sensor crop factor, but you will experience outstanding center sharpness and completely zero corner vignetting.
Q: Is the F4.0 aperture suitable for my vision system?
A: An F4.0 aperture is ideal for industrial environments, automated factories, and well-lit kiosks. It provides a deeper depth of field (DoF), meaning a larger vertical zone in front of the camera remains perfectly in focus at the same time, reducing the need for constant refocusing.
Q: What does the “6E” configuration signify?
A: “6E” refers to a robust six-element optical layout designed to maximize resolution and eliminate optical aberrations. This premium construction ensures that the 5-Megapixel clarity is sharp from the absolute center to the very corners of your image.
