CCL125060MPR2F

Description

This 6mm 3MP M12 fixed focal lens features 1/2.5″ image format, F1.8 large aperture and wide viewing angle, adopting 6G+IRF professional optical construction. It supports 1/2.5″ and 1/3″ sensor compatibility, with manual focus and fixed iris design. Ideal for CCTV Lens, Machine Vision Lens, Industrial Lens and ITS Lens mainstream applications, delivering sharp, low-distortion and IR-corrected imaging performance for compact intelligent devices.

Core Highlights at a Glance

• 73° wide FOV covers large monitoring areas without blind spots
• F1.8 large aperture boosts light intake for low-light clear imaging
• 3MP high resolution retains fine details for vision detection
• Standard M12×0.5 mount easy for quick embedded installation
• 6G+IRF optical structure realizes IR correction and stable imaging

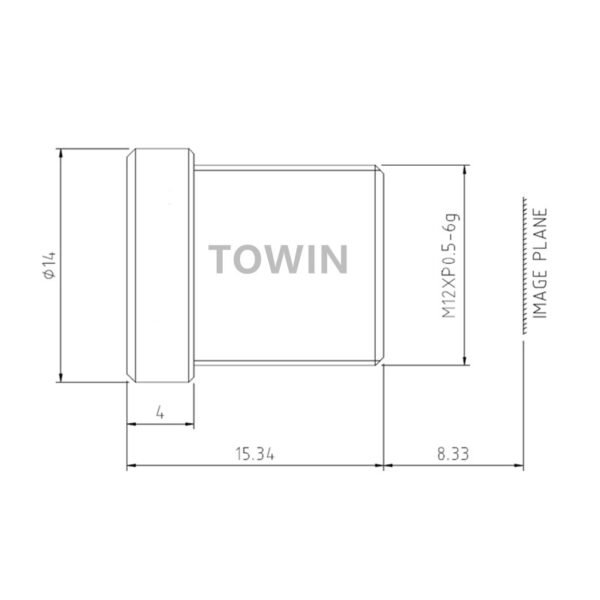

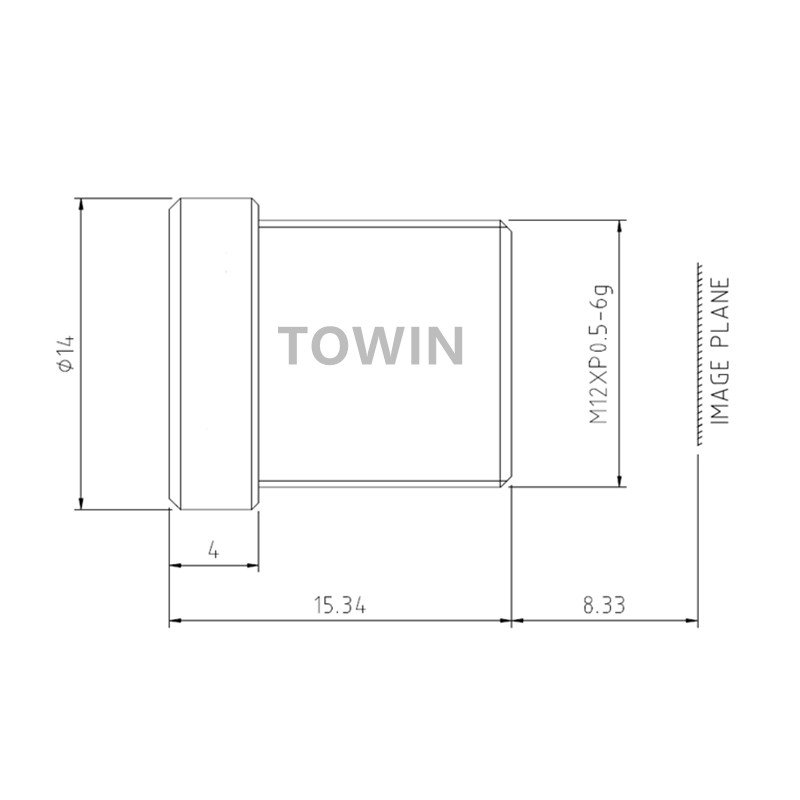

Detailed Lens Parameters

This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.

Application Scenarios & Compatible Devices

Application Scenarios

This Wide Angle Lens and IR Corrected Lens is specially designed for civil and industrial imaging scenarios, covering community security monitoring, intelligent traffic ITS system capture, factory automated FA visual inspection, industrial machine vision defect detection, and small embedded IoT camera imaging. It performs excellently in indoor closed monitoring, outdoor road observation and short-distance industrial sampling environments. With a minimum object distance of 0.1m, it adapts to close-range shooting needs, and the compact overall structure fits narrow installation space of small equipment, no need for complicated bracket modification, maintaining stable imaging effect all day long.

Compatible Devices

It is compatible with 1/2.5″ and 1/3″ mainstream CMOS image sensors, perfectly matching mainstream surveillance camera modules, industrial machine vision cameras, intelligent traffic monitoring equipment, home security IoT cameras and factory automation visual sensing devices. Standard M12 interface is universally applicable to most small camera modules on the market, supporting batch assembly and customized secondary development.

Designed for industrial, security and ITS application

FAQs

What sensor sizes does this M12 lens support?

It fits 1/2.5″ and 1/3″ image format sensors for mainstream CMOS modules.

Is this lens suitable for low-light environments?

Yes, F1.8 large aperture and IRF infrared filter ensure clear imaging in weak light.

Does it support zoom adjustment?

No, it is a Fixed Focal Lens with fixed 6mm focal length and fixed zoom.

What is the minimum working distance?

The minimum object distance reaches 0.1m, ideal for close-range machine vision detection.

Is the lens compliant with EU safety standards?

It passes RoHS and ISO9001 certification and meets EU access requirements.
