Description

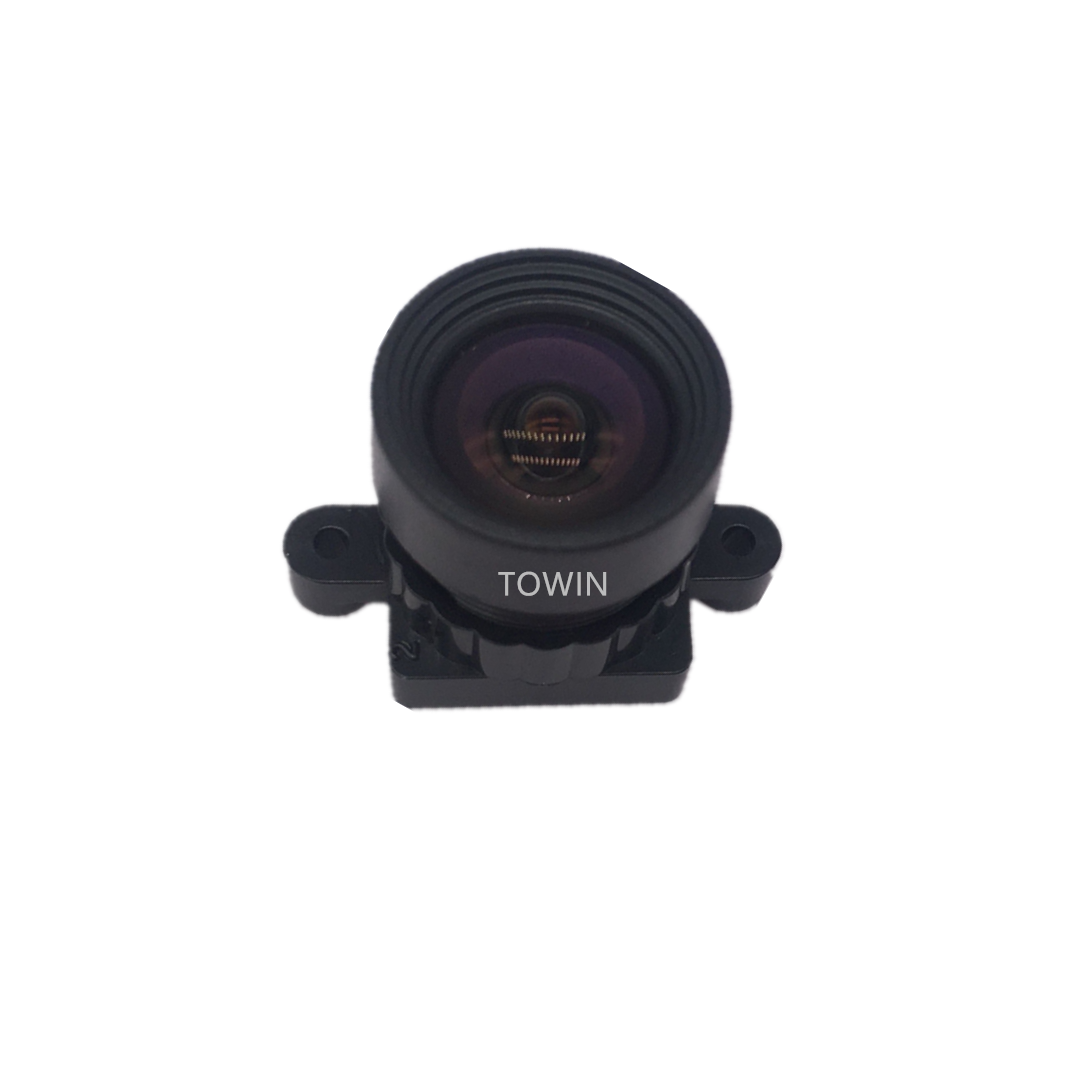

This 1/4″ 2.0mm 5MP M12 fixed focal lens features a 95° wide field of view and ultra-low distortion design. Built with premium 2G2P optical structure and F2.2 large aperture, it delivers sharp, high-definition imaging day and night. Compact body size with standard M12x0.5 mount perfectly fits limited installation space, widely compatible with CCTV Lens, Automotive Lens, Machine Vision Lens and industrial vision devices for commercial and smart IoT applications.
Core Product Highlights
95° wide viewing angle covers larger monitoring area without blind spots
Ultra-low distortion below -2% restores real scene without image warping
5MP high resolution captures clear details for identification and detection
F2.2 fixed aperture ensures stable light intake in dim environments
Mini Φ14×12.87mm compact size fits narrow installation space perfectly
Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Format | 1/4″ |
| Focal Length | 2.0mm |
| Field of View | 95°(D) / 83°(H) / 66°(V) |
| Resolution | 5 MP |
| TV Distortion | ＜-2% |
| Aperture | F2.2 |
| Mount | M12x0.5 |
| Iris | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 14.21mm |

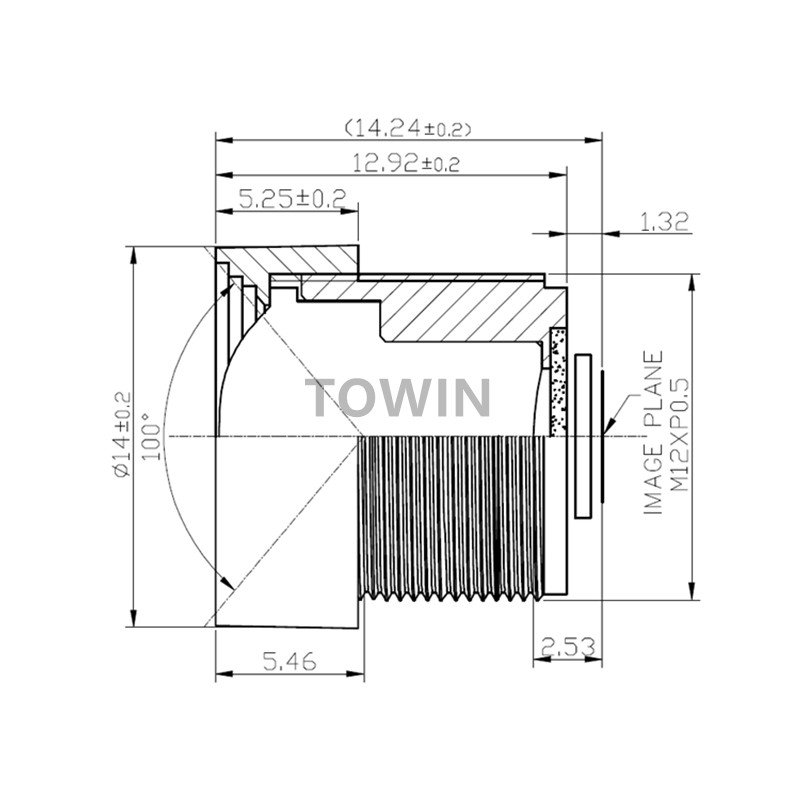

| Dimension | Φ14×12.87mm |
| Lens Component | 2G2P |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
Core Application Scenarios
This low distortion wide angle M12 lens is ideal for residential and commercial security monitoring, automotive rear view imaging, intelligent doorbell visual shooting, industrial machine vision detection, ITS traffic monitoring and drone lightweight aerial photography. It performs excellently in narrow-space installation environments such as smart home IoT devices, small industrial detection modules and vehicle embedded cameras. The 0.1m short minimum object distance supports close-range shooting, while ultra-low distortion effectively solves edge image deformation pain points of ordinary wide angle lenses, maintaining accurate scene restoration for long-term outdoor and indoor operation.
Compatible Device List
Compatible with mainstream 1/4 inch CMOS image sensors, perfectly matching smart visual doorbells, mini CCTV surveillance cameras, vehicle dash cams, industrial robot vision modules, traffic road monitoring equipment and lightweight drone cameras. Standard M12x0.5 thread mount requires no extra bracket modification, plug-and-play for fast assembly. Custom optical parameters are acceptable to meet personalized matching demands of different vision devices.
Designed for industrial, automotive and security vision application.
FAQs
Q1: What sensor size does this lens support?
A1: It is perfectly matched with 1/4 inch image sensor, stable imaging and high compatibility.
Q2: Is this lens suitable for outdoor long-term use?
A2: Yes, with industrial-grade optical structure and compliant certification, it adapts to indoor and outdoor complex temperature and humidity environments.
Q3: Does this lens support night vision imaging?
A3: The 2G2P IR corrected structure guarantees clear infrared night vision effect for day&night monitoring.
Q4: Can it be used for machine vision detection?
A4: Absolutely, 5MP resolution and<-2% low distortion meet precision detection and size measurement requirements.
