Description
Unlock unmatched imaging fidelity with our 1/2.3″ 12MP 4.4mm M12 Low Distortion Wide Angle Lens. Engineered to meet the rigorous demands of professional aerial photography, automotive sensing, and high-resolution industrial inspection, this premium optical component fully supports 12-Megapixel sensor resolutions. Delivering a sweeping 84° diagonal wide-angle field of view alongside an ultra-low optical distortion profile (<1%), it ensures clean, true-to-life geometric layouts from edge to edge. Constructed with a resilient 4G2P hybrid structure and an integrated infrared filter, it stands as the ideal replacement lens for upgrading high-density compact camera modules.
Key Features & Product Highlights
- 12MP Ultra-HD Resolving Power: Optically optimized for high-density 1/2.3″ CMOS sensors to deliver ultra-sharp imaging without pixel degradation.
- 84° Wide Angle with <1% Distortion: Achieves an expansive 84° diagonal view while suppressing geometric distortion below 1% for flat, realistic images.
- 4G2P Thermal-Stable Optics: Utilizes an advanced 4 Glass + 2 Plastic element hybrid configuration to balance excellent light transmission with thermal drift prevention.
- 0.1m Minimum Object Distance: Boasts a very short M.O.D. of 0.1m, enabling crystal-clear close-up macro scanning and wide background depth concurrently.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.3″ |
| Focal Length | 4.4mm |
| Field of View (F.O.V.) | 84°(D) / 72°(H) / 56°(V) |
| Resolution | 12 Megapixel (12 MP) |
| Optical Distortion | < 1% |
| Aperture | F2.8 |
| Mount Type | M12 × 0.5 |
| Iris Type | Fixed |
| M.O.D. (Minimum Object Distance) | 0.1m |

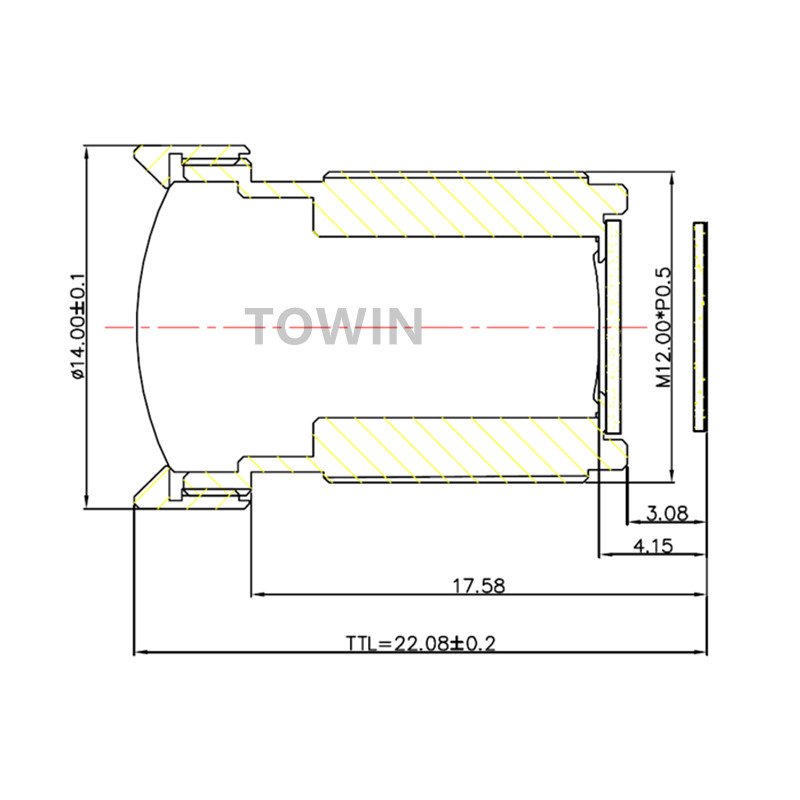

| T.T.L. (Total Track Length) | 22.08mm |
| Dimensions | Φ14 × 19mm |
| Lens Component | 4G2P + IRF (4 Glass + 2 Plastic Elements + Infrared Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This 12MP low distortion fixed focal lens is engineered for high-performance applications where wide coverage and geometric precision are required simultaneously. It serves as a superior choice for Drone & UAV aerial photogrammetry, where precise mapping and survey accurate tracking cannot tolerate fish-eye warping. The durable 4G2P structure handles extreme temperature shifts smoothly, making it highly effective for automotive electronic systems like high-resolution dash cams, lane departure warning setups, and blind-spot monitors. Additionally, it provides pristine clarity for industrial machine vision systems, automated surface inspection, and biometric identity scanners used in high-traffic commercial hubs.
Compatible Device List
- Sensors: Optimized for premium 1/2.3″ and 1/2.5″ CMOS image sensors, seamlessly matching Sony IMX series, Onsemi, and OmniVision platforms.
- Smart Terminals: Tailored for retail kiosks with facial recognition, security biometric turnstiles, and handheld barcode scanning computers.
- Action Cameras & Boards: Direct drop-in upgrade or mod component for commercial action cameras, customized sports DV boards, and embedded USB3.0 board modules.
- OEM Customization: Supports modifications for dual-band pass coatings or alternative mechanical barrel finishes to fit specialized housing footprints.
“Designed for Drone Aerial Mapping, Automotive Sensing, and Low-Distortion Machine Vision applications.”
Frequently Asked Questions
Q: What are the main benefits of a <1% low distortion rating?
A: Standard wide-angle lenses usually cause straight lines to bend like a fish-eye. A distortion profile under 1% ensures that walls, horizons, and mechanical parts appear straight and true to life, which is mandatory for machine vision processing and accurate drone mapping.
Q: Will this lens fit a standard M12 board camera?
A: Yes, it features a metric M12x0.5 thread design, making it globally compatible with standard S-mount boards, compact security modules, and industrial camera housings without modifications.
Q: Why does this lens use a 4G2P configuration instead of all-plastic?
A: The 4 glass elements provide exceptional scratch resistance, superior light transmission, and high thermal stability, meaning your image won’t drift out of focus when exposed to direct sunlight or high engine temperatures in automotive environments. The 2 plastic elements allow for precision aspherical tuning to eliminate chromatic aberrations cost-effectively.
Q: Does this lens include an infrared filter?
A: Yes, it has an integrated IRF (Infrared Filter). It works by blocking infrared light rays during the day to prevent color anomalies, ensuring highly accurate color balance for security surveillance and commercial imaging.
Q: Can I focus on objects that are very close to the lens?
A: Absolutely. With a Minimum Object Distance (M.O.D.) of just 0.1 meters (10 cm), this lens can maintain incredibly sharp focus on nearby text, barcodes, or small circuit boards, making it ideal for macro inspection.
Q: What happens if I use this lens on a smaller 1/3″ sensor?
A: This lens is fully backward-compatible with smaller sensors like 1/2.5″, 1/2.7″, or 1/3″ models. When using a smaller sensor, your field of view will simply become slightly narrower due to the sensor crop factor, but you will experience completely zero corner vignetting.
