Description
Unlock the full potential of high-resolution imaging with our 1/2.3″ 16MP 4.3mm M12 Low Distortion Wide Angle Lens. Purpose-built for high-end aerial photography, action sports, and precision machine vision, this premium optical lens supports an incredible 16-Megapixel resolution. Featuring a 90° diagonal wide-angle field of view and an advanced 8G (8 glass elements) construction, it delivers sharp, crystal-clear images from edge to edge while keeping optical distortion under 1%. With its standard M12x0.5 mount, it is the perfect upgrade for compact, high-performance camera modules.
Key Features & Product Highlights
- 16MP Ultra-HD Clarity: Specifically optical-engineered to support 16-Megapixel sensors, delivering pristine details without pixel blurring.
- 90° Wide Angle, <1% Distortion: Provides a sweeping 90° diagonal field of view while suppressing optical distortion to under 1% for straight, realistic lines.
- 8G All-Glass Premium Optics: Constructed with 8 high-grade precision glass elements (8G) to ensure superior light transmission and minimal thermal drift.
- Macro Focus Capability: Offers a remarkably short Minimum Object Distance (M.O.D.) of 0.1m, capturing sharp close-ups and wide backgrounds simultaneously.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.3″ (Also optimized for 1/2.5″) |
| Focal Length | 4.3mm |
| Field of View (F.O.V.) | 1/2.3″: 90°(D) / 72°(H) / 54°(V) 1/2.5″: 65°(H) |
| Resolution | 16 Megapixel (16 MP) |
| Optical Distortion | < 1% |
| Aperture | F2.8 |
| Mount Type | M12 × 0.5 |
| Iris Type | Fixed |
| M.O.D. (Minimum Object Distance) | 0.1m |

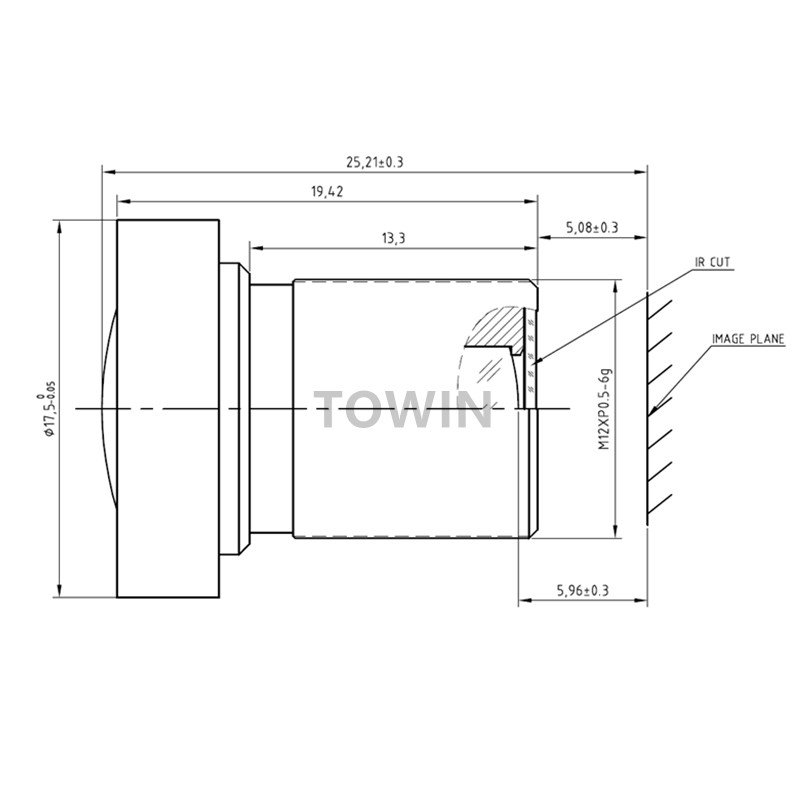

| T.T.L. (Total Track Length) | 25.1mm |
| Lens Construction | 8G + IRF (8 All-Glass Elements + Infrared Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This 16MP 4.3mm wide-angle lens is engineered for professional-grade, distortion-free aerial and mobile imaging. It serves as an exceptional choice for Drone & UAV aerial mapping, where precise geometric measurements are required without fish-eye warping. The high resolving power also makes it ideal for action cameras, high-definition sports DV recorders, panoramic stitching rigs, and advanced machine vision inspection systems. Furthermore, its rugged 8G all-glass structure ensures optimal performance in harsh outdoor environments, smart city traffic scanning (ITS), and automotive dashcam setups prone to extreme temperature variations.
Compatible Device List
- Sensors: Perfectly optimized for high-density 1/2.3″ and 1/2.5″ CMOS image sensors, such as the Sony IMX117, IMX206, IMX377, and OmniVision series.
- Action Cameras & Drones: Drop-in upgrade or replacement lens for GoPro Hero series mod kits, DJI drone camera modules, and YI action cameras.
- Industrial Hardware: Fully compatible with high-resolution USB3.0/GigE board cameras and embedded ARM/Raspberry Pi vision platforms.
- OEM Customization: Available with customized IR-cut or dual-band pass filters to adapt to specialized multi-spectral or night-vision imaging.
“Designed for Drone Aerial Photography, Action Cameras, and Low-Distortion Machine Vision applications.”
Frequently Asked Questions
Q: Will this lens fit my standard action camera or drone?
A: Yes, as long as your camera module uses a standard M12x0.5 thread mount and houses a 1/2.3″ or smaller sensor. It is widely used by developers to replace stock fish-eye lenses with a flat, distortion-free view.
Q: What is the advantage of the 8G (8 Glass) construction?
A: Unlike plastic lenses that deform under heat, an 8G all-glass construction provides excellent thermal stability, ensuring the camera stays in sharp focus under direct sunlight. It also maximizes light throughput and enhances contrast for 16MP sensors.
Q: Does this lens produce a fish-eye effect?
A: No, despite its wide 90° diagonal field of view, this lens is a low distortion lens with less than 1% optical distortion. Lines that are straight in reality will appear straight in your images, making it completely different from fish-eye optics.
Q: What does the integrated IRF (IR Filter) do?
A: The built-in Infrared Filter (IRF) blocks unwanted infrared light wavelengths during daylight. This prevents red color shifts and artifacts, ensuring accurate color reproduction for consumer electronics and industrial inspection alike.
Q: Can I use this lens on a smaller 1/2.5″ or 1/3″ sensor?
A: Yes, it is fully compatible with smaller formats. When paired with a 1/2.5″ sensor, the horizontal field of view (H.O.V.) will narrow slightly to 65°, acting as a clean cropping mechanism with zero vignetting.
Q: How close can an object be for the camera to still focus?
A: The Minimum Object Distance (M.O.D.) is 0.1 meters (10 cm). This allows the lens to achieve ultra-sharp focus on nearby objects, making it highly effective for macro scanning and close-up quality control.
