Description

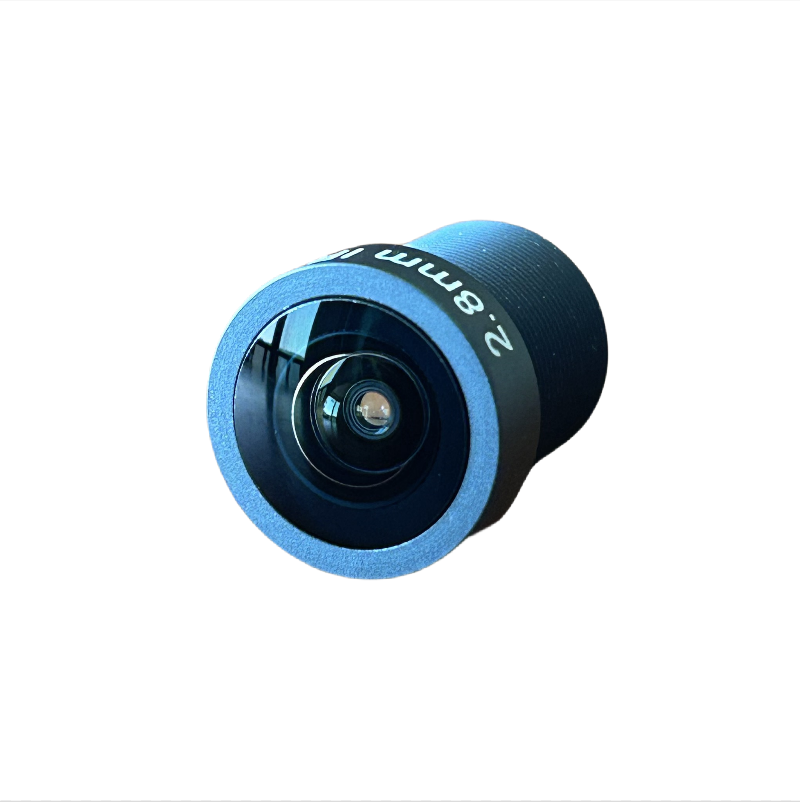

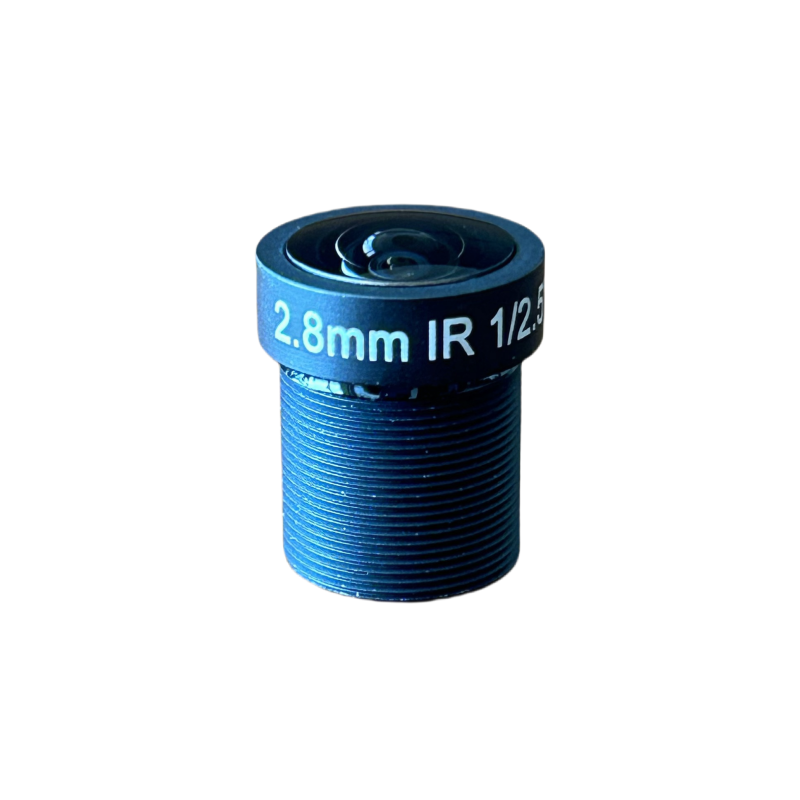

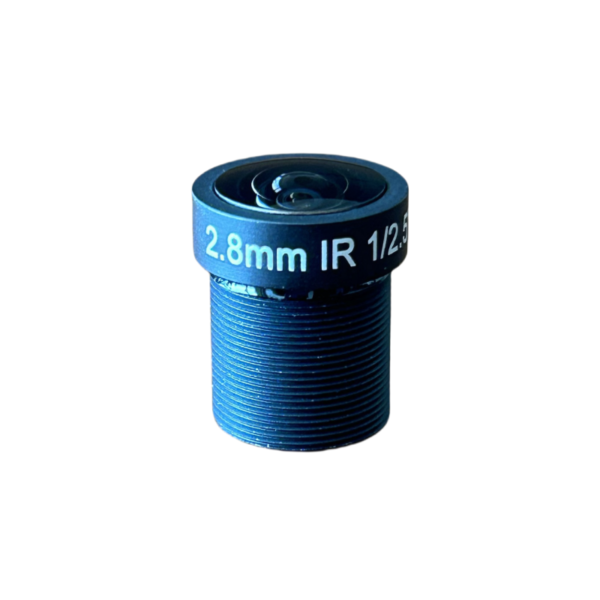

Expand your visual horizons with our professional 5MP 2.8mm M12 fisheye lens. Perfectly optimized for mainstream 1/2.5″ and 1/3″ image sensors, this high-definition fixed focal lens delivers stunning 5 Megapixel clarity paired with an ultra-wide diagonal field of view up to 170°. Featuring a fast F1.8 aperture and a built-in optical filter, this compact wide angle lens ensures exceptional light gathering and vivid color replication, making it the ultimate solution for compact security, smart transit, and aerial vision systems.
Key Product Highlights
-
- 170° Panoramic Fisheye View: Delivers a sweeping 170° diagonal (120° horizontal) view on 1/2.5″ sensors, serving as a true fisheye lens that captures immense situational detail in a single frame.
- 5MP Ultra-HD Resolving Power: Engineered with precision multi-coated optics to support 5 Megapixel resolutions, ensuring elite image sharpness and fine detail tracking for digital zoom.
- Bright F1.8 Large Aperture: Allows massive light transmission to the sensor, significantly improving image brightness and reducing digital noise in low-light or twilight environments.
- Integrated Filter & Compact Build: Comes pre-installed with a high-performance optical filter (Structure: With filter) within a miniature 22.76mm TTL chassis, streamlining setup for space-limited enclosures.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.5″, 1/3″ |
| Focal Length | 2.8mm |
| F.O.V. (1/2.5″) | 170° (D) / 120° (H) / 86° (V) |
| F.O.V. (1/3″) | 127° (D) / 96° (H) / 71° (V) |
| Resolution | 5 Megapixel |
| Optical Distortion | < -86% |
| Aperture | F1.8 |
| Mount Type | M12X0.5 |

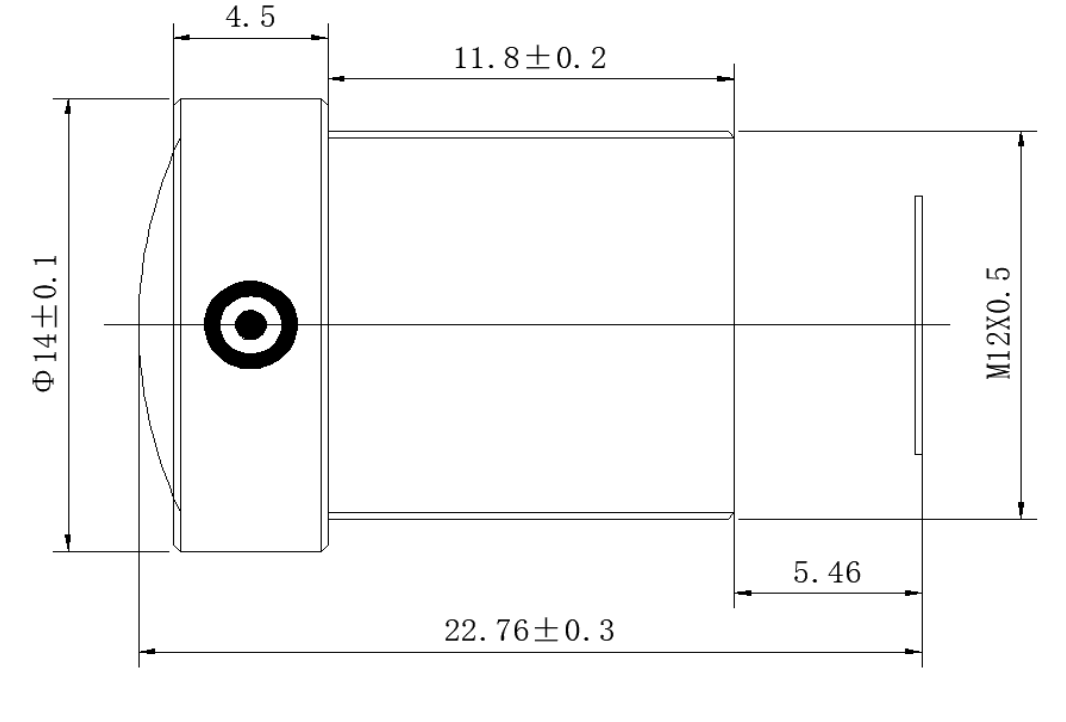

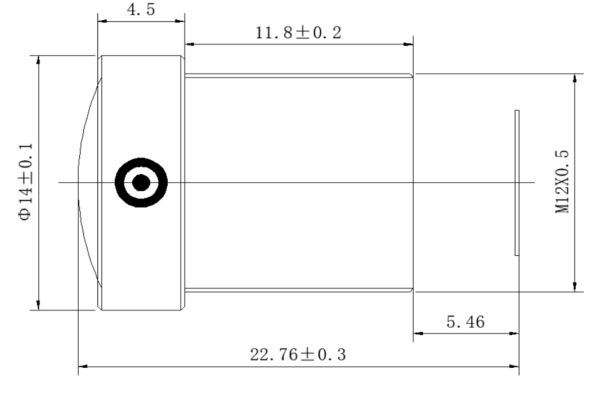

| T.T.L. (Total Track Length) | 22.76mm |
| Optical Structure | With filter (e.g., 650nm IR-cut / dual-band) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Equipment
This versatile mini M12 lens is custom-designed for multi-industry applications where an expansive field of view and miniature device footprint are mandatory. It functions flawlessly as an automotive lens for panoramic dashcams, electronic mirrors, and cabin passenger monitoring systems. Its rugged, lightweight design makes it a highly sought-after component for drone & UAV lenses used in FPV racing and robotic collision avoidance. Additionally, it excels as a high-resolution CCTV lens for smart video doorbells, ATM kiosks, and warehouse panoramic ceiling cameras where broad perimeter protection is required.
Compatible Equipment List:
-
- Sensors: Fully compatible with 1/2.5″, 1/2.7″, 1/2.8″, and 1/3″ industry-standard CMOS/CCD sensors.
- Surveillance Systems: Fits smart video doorbells, home IoT cameras, and miniature network dome housings.
- Embedded & Aerial Vision: Perfectly matches standard FPV drone cameras, action cameras, and embedded AI development boards (e.g., Raspberry Pi, Jetson Nano).
- Industrial Hardwares: Seamlessly screws into M12 smart board cameras and industrial automated guided vehicle (AGV) sensor pods.
“Designed for high-definition panoramic security, compact drone flight, and automotive vision applications.”
Frequently Asked Questions
-
- Q: What type of filter is integrated into this lens structure?
-
- A: The lens is designed “With filter.” Depending on your ordering requirements, it can be pre-fitted with a standard 650nm IR-cut filter for true-to-life daytime color video, or an IR-pass/dual-band filter for day and night security applications.
-
- Q: How does the field of view differ between 1/2.5″ and 1/3″ sensors?
-
- A: Because a 1/2.5″ sensor has a larger physical surface area, it utilizes more of the lens’s optics, providing a wider 170° diagonal view. On a smaller 1/3″ sensor, the image is slightly cropped, resulting in a 127° diagonal view.
-
- Q: Can this 5MP lens be used on a 2MP (1080P) camera board?
-
- A: Yes, it is fully backward compatible. Mounting a 5 Megapixel optical lens onto a 2MP sensor will enhance edge sharpness, reduce chromatic aberrations, and give you an optically superior image.
-
- Q: Is this a fixed or manual iris lens?
-
- A: This lens has a fixed iris with a large aperture of F1.8. The iris size cannot be adjusted manually or electronically, ensuring a reliably constant flow of light for high-speed imaging.
-
- Q: What is the thread specification for mounting this lens?
-
- A: It features a standard M12x0.5 thread, which is the international standard for board camera optics, often referred to as M12 lenses or S-mount lenses.
-
- Q: What does the T.T.L. measurement represent?
-
- A: T.T.L. stands for Total Track Length, which is 22.76mm for this lens. This is the physical distance from the front tip of the lens to the surface of the image sensor, confirming its ultra-compact profile.
-
