Description

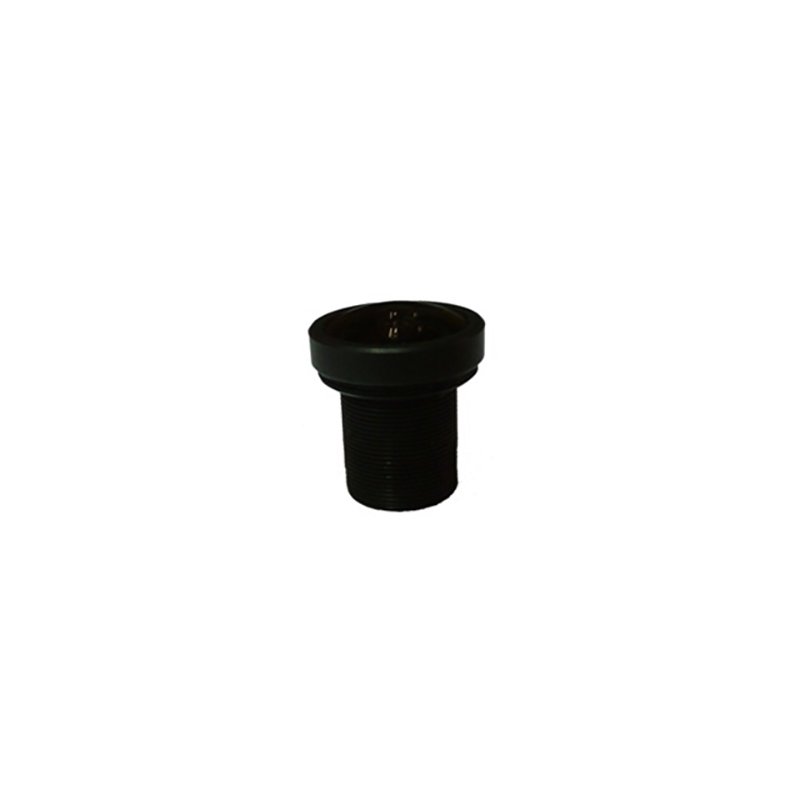

This professional-grade 5-Megapixel Fisheye Lens is engineered for high-definition imaging in demanding environments. Featuring a 170° ultra-wide field of view (FOV) and a 1/2.5″ large format sensor compatibility, it stands out as a versatile solution among M12 Lenses. Whether integrated into advanced Automotive Lens systems for 360° surround view or deployed as a high-clarity CCTV Lens, this optical module delivers edge-to-edge sharpness with 5MP precision.
Scenario-Based Functional Descriptions
170° Ultra-Wide Panoramic Field of View:
Boasting a 170° diagonal FOV, this Fisheye Lens captures expansive environments in a single frame. It is the ideal choice for Automotive Lens applications like AVM (Around View Monitoring) and dash cams, as well as Drone & UAV Lenses, where maximizing situational awareness and minimizing blind spots are critical for safety and navigation.
5MP High-Definition Optical Performance:
Unlike standard wide-angle optics, this 5MP lens is designed to resolve fine details for AI-driven analytics. Its 6G+1IR (Six Glass + 1 Infrared Filter) construction ensures superior light transmission and true-to-life color reproduction. This makes it a preferred CCTV Lens for smart security and a reliable Industrial Lens for machine vision tasks requiring high pixel density.
Compact M12 Mount for Seamless Integration:
With a standard M12x0.5 thread, this lens fits into the category of compact M12 Lenses, allowing for easy installation in space-constrained devices. Its short 22.57mm Total Track Length (TTL) makes it perfect for slim-profile cameras, sleek automotive housings, and handheld medical or industrial inspection tools.
Optimized for Harsh Environments & Close-Range Imaging:
With a Minimum Object Distance (M.O.D) of just 0.1m, this lens excels in close-up monitoring. The robust glass-and-metal build ensures stability under varying temperatures, solidifying its role as a durable Machine Vision Lens for robotics and an all-weather Automotive Lens for external vehicle sensing.
Detailed Parameter Table
| Feature | Specifications | Advantage |
|---|---|---|
| Resolution | 5 Megapixel | Crystal clear image quality for AI recognition |
| Field of View (D/H/V) | 170° / 130° / 98° | Extreme panoramic coverage with zero blind spots |
| Image Format | 1/2.5″ | Large sensor compatibility for better low-light |
| Aperture | F2.8 ± 5% | Balanced light intake for day and night clarity |
| Mount | M12 x 0.5 | Universal interface for standard M12 Lenses |
| Lens Structure | 6G + 1IR | All-glass optics for high thermal stability |
| T.T.L. | 22.57mm | Compact design for low-profile integration |
| M.O.D. | 0.1m | Excellent performance for near-field imaging |
FAQs
Q: Can this lens be used for outdoor security cameras?
A: Yes. As a high-performance CCTV Lens, its 6G structure is highly resistant to environmental aging, and the integrated IR filter ensures optimal performance when paired with IR-corrected sensors for 24/7 monitoring.
Q: Is it compatible with 1/3″ or 1/4″ sensors?
A: Absolutely. While optimized for 1/2.5″, this lens is fully backward compatible with smaller formats (1/3″, 1/4″), providing a slightly narrower but still impressive FOV.
Q: Does the <89% distortion affect AI detection?
A: While all Fisheye Lenses have inherent distortion, the 5MP resolution ensures that even distorted areas retain high data density, allowing dewarping algorithms to easily correct the image for human or machine vision.
