Description
Unlock seamless 360-degree situational awareness with our high-end 14MP 1.5mm M12 Fisheye Lens. Specially designed for next-generation imaging, this premium fixed focal lens boasts a full 190° field of view (D/H/V) to capture expansive environments without missing a single detail. Engineered with a fast F1.8 aperture and a robust 9G all-glass structure, it matches perfectly with high-resolution 1/2.3″ sensors to deliver crystal-clear 14 Megapixel footage. Whether integrated into tactical drones, automated vehicles, or industrial setups, this M12 lens provides unrivaled edge-to-edge optical performance under challenging environments.
Key Product Highlights
- 190° Full Panoramic Coverage: Provides a true 190° hemispherical field of view horizontally and vertically, completely eliminating imaging blind spots with one single camera sensor.
- 14MP Ultra-High Resolution: Engineered with advanced 14 Megapixel optical fidelity to perfectly match modern high-density pixels without losing center or corner sharpness.
- Ultra-Bright F1.8 Aperture: Allows massive light throughput, enabling exceptional low-light imaging and reduced motion blur for fast-moving applications.
- Premium 9G All-Glass Elements: Built with 9 layers of precision-coated glass to ensure high thermal stability, zero plastic warping, and maximum scratch resistance.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Format | Φ4.2mm, 1/2.3″ |
| Focal Length | 1.5mm |
| Field of View (F.O.V.) | 190° (Diagonal) / 190° (Horizontal) / 190° (Vertical) |
| Resolution | 14 Megapixel (14 MP) |
| Optical Distortion | < -99% (Fisheye Projection) |
| Aperture | F1.8 (Fixed Iris) |

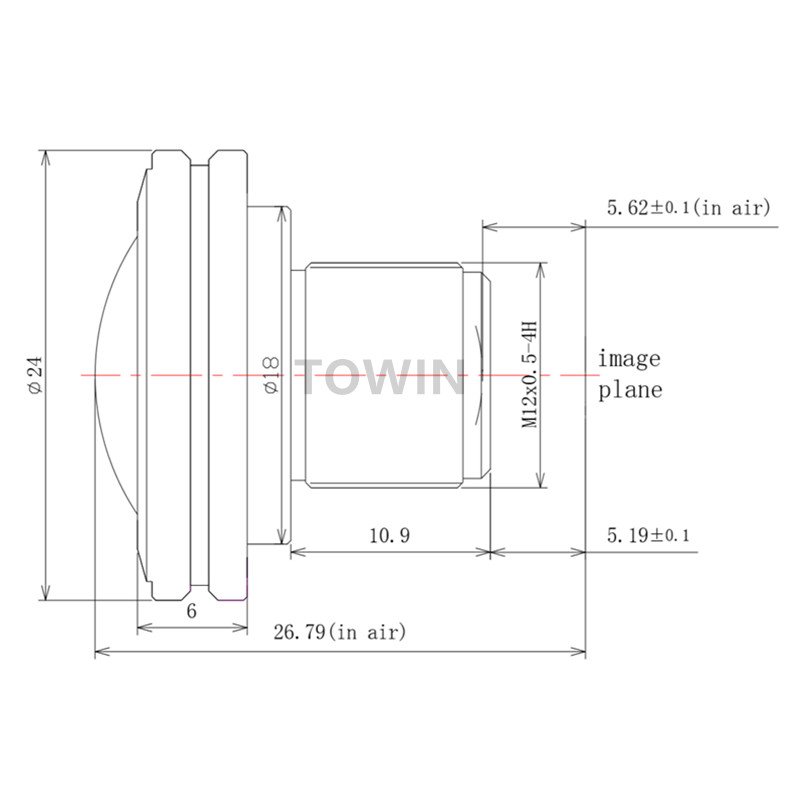

| Mount Type | M12 x 0.5 |
| Back Focal Length (B.F.L.) | 5.62mm |
| Minimum Object Distance (M.O.D.) | 0.1m |
| Total Track Length (T.T.L.) | 26.79mm |
| Lens Construction | 9G (9 All‑Glass Elements) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Devices
Core Application Scenarios
This specialized 190° M12 fisheye lens is primarily developed for advanced Drone & UAV lenses navigation, defense mapping, and smart Automotive lens setups such as 360-degree around-view monitoring (AVM). Thanks to its ultra-short 0.1m minimum object distance and ultra-wide view, it serves as an excellent component for high-precision Machine Vision lens sorting, AI robotic spatial awareness, and VR/AR immersive stitching cameras. Its multi-layer glass matrix excels under continuous outdoor sunlight and vibration, safeguarding clarity for perimeter security, smart traffic systems (ITS), and automated factory floors.
Compatible Device List
- Sensors: Tailored for 1/2.3″ large-format CMOS sensors, while remaining backward compatible with 1/2.5″, 1/2.7″, and 1/3″ sensors (such as Sony IMX formats).
- Hardware: Fits seamlessly into standard M12 lens mount threads on industrial cameras, action cameras, UAV payloads, and embedded Linux/Raspberry Pi vision platforms.
- Customization: Supports custom anti-reflective (AR) coatings, bandpass IR filters, or hardened structural housings to fit unique military, aerospace, or industrial inspection frameworks.
“Designed for Drone Navigation & Machine Vision applications”
Frequently Asked Questions
Q: Why does the lens have a <-99% optical distortion rating?
A: This value is normal for a true fisheye lens. It means the lens uses engineered barrel distortion to squeeze an ultra-wide 190° environment onto a flat image sensor.
Q: Is this lens suitable for outdoor drone mapping or extreme weather?
A: Absolutely. Featuring a 9G all-glass construction, it resists optical shifting and mechanical wear from extreme heat or cold, unlike cheaper plastic alternatives.
Q: Does this M12 lens include a built-in IR-cut filter?
A: This lens features a standard 9G design. We can customize the internal coatings or add specific IR-cut filters at the rear based on your system’s day/night configuration.
: Can I use this lens on a standard 1/2.7″ sensor camera?
A: Yes, it is fully compatible. Using it on a 1/2.7″ or smaller sensor will crop the image format slightly, changing the active horizontal and vertical field of view accordingly.
Q: How do I adjust the focus on this fixed focal lens?
A: Focus is adjusted during camera assembly by threading the M12x0.5 mount barrel up or down in its holder until the live feed achieves peak sharpness, then locking it with a set-screw or glue.
Q: Does the F1.8 aperture change dynamically?
A: No, this is a Fixed Iris lens. The aperture stays locked at F1.8 to ensure constant, maximum light transmission for high-speed tracking and low-light operations.
