Description
Enhance your imaging system with our high-performance 10MP 2.4mm M12 Automotive Fisheye Lens. Featuring a standard M12x0.5 mount and a striking 180° ultra-wide field of view, this premium fixed focal lens is engineered to eliminate blind spots in high-definition surveillance and automation. Designed with a 7G+IRF all-glass structure and a large F2.3 aperture, it delivers crisp, edge-to-edge 10 Megapixel resolution even in low-light environments, making it the definitive choice for next-generation security and industrial vision systems.
Key Product Highlights
- 180° Panoramic Field of View: Captures an ultra-wide 180° fisheye perspective at Φ6.6mm image format, eliminating critical blind spots with a single camera module.
- 10MP Ultra-HD Resolution: Delivers flawless 10 Megapixel optical clarity across the entire frame, tailored for high-density sensor grids.
- Superior Low-Light F2.3 Aperture: Maximizes light intake to ensure bright, sharp imagery under challenging ambient light conditions.
- Compact All-Glass Optical Build: Features a robust 7G+IRF (7 Glass elements + IR Filter) construction, offering exceptional thermal stability and zero focal shift.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Format | Φ6.6mm, 1/2.7″ |
| Focal Length | 2.4mm |
| Field of View (F.O.V.) | 180° @ Φ6.6 / 165° @ Φ6.28 / 119° @ Φ4.7 |
| Resolution | 10 Megapixel (10 MP) |
| Optical Distortion | -100% (Fisheye) |
| Aperture | F2.3 (Fixed Iris) |
| Mount Type | M12 x 0.5 |
| Minimum Object Distance (M.O.D.) | 0.2m |

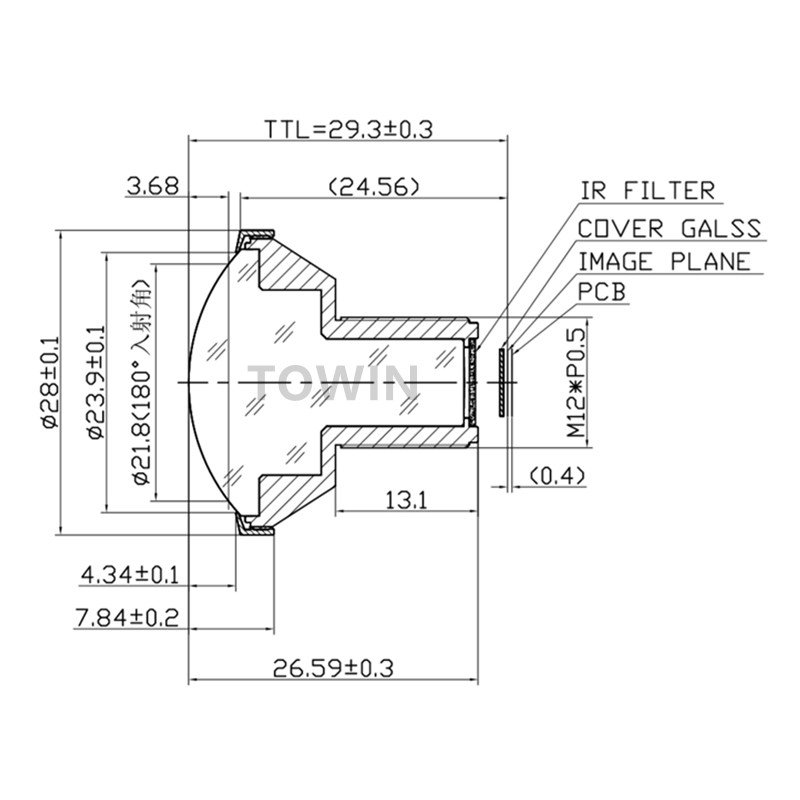

| Total Track Length (T.T.L.) | 29.30mm |
| Dimensions | Φ28 × 26.59mm |
| Lens Construction | 7G + IRF (7 Glass Elements + IR Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Devices
Core Application Scenarios
This 180° M12 Automotive fisheye lens is primarily designed for high-end automotive surround-view systems (360° AVM), smart panoramic video doorbells, and commercial CCTV security cameras. Its ultra-wide perspective is ideal for warehouse drone navigation, UAV mapping, and industrial machine vision inspection where maximizing the spatial viewing area within confined spaces is critical. The optical layout ensures reliable performance in extreme temperatures, making it highly effective for outdoor perimeter defense and automated guided vehicles (AGVs) operating in complex factory environments.
Compatible Device List
- Sensors: Optimized for 1/2.7″, 1/2.8″, and 1/3″ mainstream CMOS image sensors (including Sony IMX and OmniVision series).
- Hardware: Fits standard M12 lens mount housings on Hikvision and Dahua IP camera modules, smart IoT cameras, and embedded ARM/Raspberry Pi vision boards.
- Customization: Supports custom modifications for specific IR pass/cut filter coatings and adjusted track lengths to seamless integrate into specialized aerospace or medical enclosures.
“Designed for Panoramic Surveillance & Machine Vision applications”
Frequently Asked Questions
Q: Does this lens support night vision imaging?
A: Yes. The lens includes an integrated IR Filter (IRF) and features a large F2.3 aperture, which allows significant light transmission for high-resolution imaging when paired with external infrared illuminators.
Q: Can this lens be used on a standard C-mount or CS-mount camera?
A: This is a native M12 mount lens. To use it on a C-mount or CS-mount camera body, you will need a mechanical M12-to-CS adapter ring.
Q: What does the -100% distortion value signify?
A: A distortion of -100% is the optical standard for a barrel-distorted fisheye lens. It indicates the lens intentionally creates a panoramic, curved projection to capture a full 180° field of view.
Q: Is the housing made of plastic or metal?
A: The lens barrel is constructed from precision-machined metal to match the premium 7G all-glass optics, ensuring high durability and resistance to structural warping.
Q: Can I adjust the focus or the iris manually?
A: This is a fixed focal lens with a fixed F2.3 iris. Focus is set permanently during installation by threading the lens into the M12 mount holder until the image sharpens.
Q: What is the benefit of the 7G optical construction?
A: The 7-layer all-glass (7G) design offers vastly superior light transmission, sharper resolution, and better scratch resistance compared to cheaper plastic lenses, preventing aging under sunlight.
