Description
Enhance your optical system with our premium 8MP 4.2mm M12 Low Distortion Lens. Specifically engineered for 1/2.5″ large format sensors, this high-performance wide angle lens delivers exceptional 8 Megapixel clarity with an impressive <3.8% low distortion profile. Featuring a robust 7G (all-glass) construction and a compact M12x0.5 mount, it is the ideal choice for developers seeking uncompromising image precision in demanding machine vision, CCTV, and industrial FA applications.
Product Highlights
- 8MP Crystal-Clear Resolution: Resolves fine details without blurring, perfectly matching 4K high-density sensors to prevent pixel-dropping in critical inspection tasks.
- Ultra-Low Optical Distortion: Keeps image geometric distortion under 3.8%, eliminating the severe “fish-eye” bending common in wide-angle lenses to ensure precise edge-to-edge measurements.
- Optimized 1/2.5″ Sensor Format: Offers a generous 83° diagonal field of view, maximizing sensor utilization on 1/2.5″, 1/2.7″, and 1/3″ CMOS chips without dark corners or vignetting.
- Rugged All-Glass 7G Construction: Utilizing 7 layers of precision-coated glass elements to guarantee high thermal stability, optimal light transmission, and zero degradation under harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.5″ |
| Focal Length | 4.2mm |
| F.O.V. (Field of View) | 83°(D) / 66°(H) / 49°(V) |
| Resolution | 8 Megapixel (8 MP) |
| Optical Distortion | < 3.8% |
| Aperture | F2.8 (Fixed Iris) |
| Mount Type | M12 x 0.5 (Board Lens) |
| M.O.D. (Min. Object Distance) | 0.2 meters |

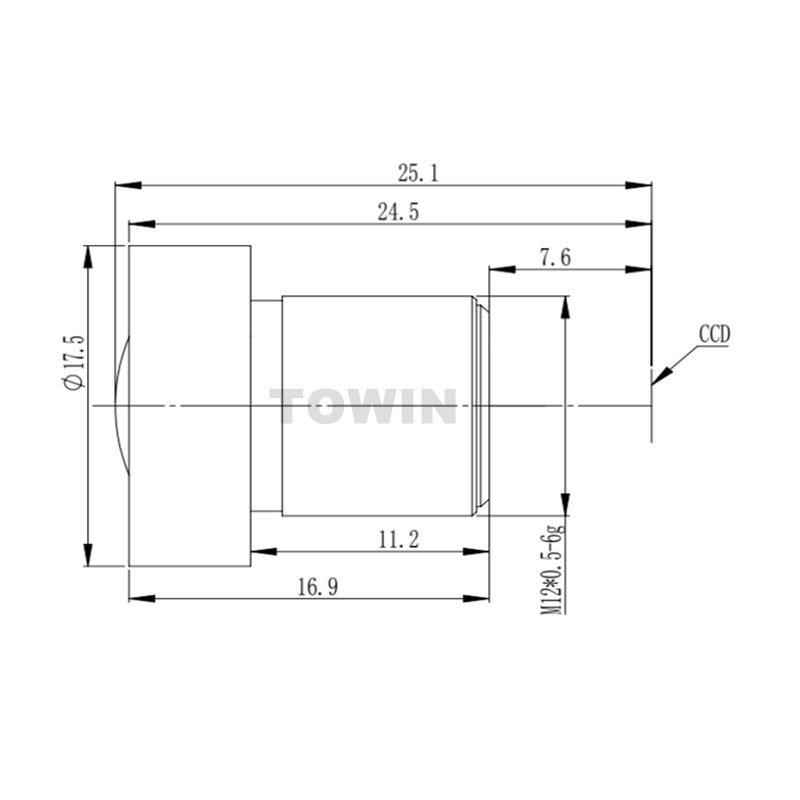

| T.T.L. (Total Track Length) | 25.1mm |
| B.F.L. (Back Focal Length) | 8.13mm |
| Lens Construction | 7G (7 Glass Elements) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Core Application Scenarios
This low distortion M12 lens is optimized for high-end automated inspection and intelligent monitoring environments. It excels in factory automation line auditing, PCB component scanning, surface defect detection, and automated optical inspection (AOI) where dimensional accuracy is critical. Additionally, its wide 83° field of view and 8MP resolution make it highly effective for high-definition facial recognition access control, ITS traffic lane surveillance, intelligent delivery kiosk tracking, and robotic arm guidance systems operating under variable indoor and outdoor lighting.
Compatible Device List
- Sensors & Modules: Fully compatible with 1/2.5″, 1/2.7″, and 1/3″ mainstream CMOS sensors (including Sony IMX series and OmniVision 8MP modules).
- Industrial Hardware: Seamlessly integrates with industrial smart cameras, machine vision systems, and specialized FA lens mounts.
- Security & IoT Platforms: Fits high-definition IP cameras, smart city surveillance modules, and custom IoT edge-imaging hardware.
- Customization Options: Supports tailored modifications for specific Back Focal Lengths (BFL), custom anti-reflective coatings, or alternative IR cut filters based on volume requirements.
Designed for high-accuracy industrial inspection and ultra-HD surveillance applications.
Frequently Asked Questions
Q: Does this 8MP M12 lens support day and night imaging with IR lighting?
A: This lens is built with a high-performance 7G all-glass construction that provides excellent light transmission. Depending on your project requirements, it can be ordered with a standard 650nm IR-cut filter for daytime color fidelity or a dual-band/no-filter option for infrared night vision integration.
Q: What makes this “Low Distortion” compared to standard wide-angle lenses?
A: Standard 4.2mm lenses often exhibit noticeable barrel distortion (image bending at the edges). This lens uses an advanced 7-element optical design to suppress geometric distortion to less than 3.8%, ensuring lines remain straight for algorithm-based image processing.
Q: Can I use this 1/2.5″ format lens on a smaller 1/3″ CMOS sensor?
A: Yes, it is fully backward compatible with smaller sensor sizes such as 1/2.7″, 1/2.8″, and 1/3″. Please note that using a smaller sensor will result in a narrower crop factor (smaller Field of View) than the rated 83°(D).
Q: Is the iris adjustable for changing light conditions?
A: No, this lens features a Fixed Iris at F2.8. This fixed design maximizes mechanical reliability, lowers cost, and is ideal for environments where light levels are controlled or managed via camera electronic shutter speed.
Q: Does the lens come with a pre-installed mount holder?
A: This product listing is for the optical lens element only, featuring a standard M12x0.5 thread. We can provide matching lens holders or mount adapters separately upon request.
Q: Is this lens compliant with environmental and quality standards for global export?
A: Yes, our manufacturing processes are ISO9001 certified, and this specific lens is fully compliant with RoHS directives, making it cleared for seamless import and distribution in the EU and American markets.
