Description

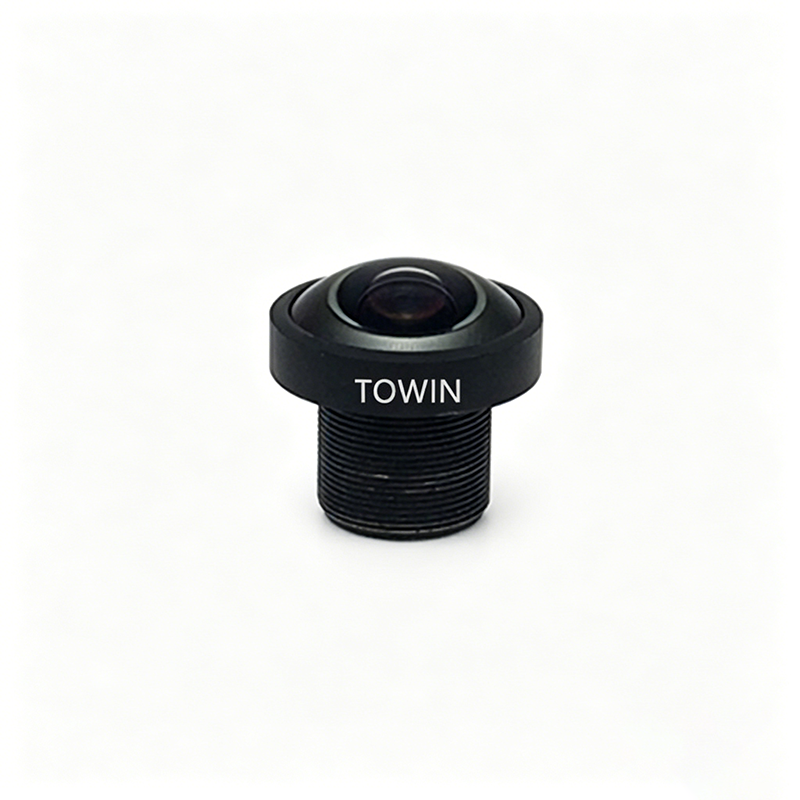

This premium 10MP Fisheye Lens is engineered for high-precision imaging, featuring a stunning 190° Field of View and a high-performance 7G+IR cut optical construction. Designed with a standard M12 mount, it stands out among top-tier M12 Lenses for its ability to deliver ultra-sharp, 10-Megapixel resolution. Whether you are developing advanced Automotive Lens solutions for surround-view or seeking a rugged Industrial Lens for machine vision, this optical module provides the clarity and reliability required for next-generation AI perception.
Scenario-Based Functional Descriptions
190° Ultra-Panoramic Vision for Zero-Blind-Spot Monitoring:
Featuring a 190° diagonal FOV, this Fisheye Lens provides comprehensive coverage that exceeds a standard hemisphere. It is an ideal Wide Angle Lens for automotive AVM (Around View Monitoring) and Drone & UAV Lenses, where capturing the maximum environment in a single frame is critical for safety and navigation.
10MP Resolution for Precision Machine Vision:
Unlike standard wide-angle optics, this lens supports up to 10MP resolution, ensuring that even the edges of the fisheye image remain crisp. This makes it a superior Machine Vision Lens and FA lens, allowing AI algorithms to identify small defects or distant objects with high confidence, even after image dewarping.
Low F-Theta Distortion for Accurate Mapping:
With an F-Theta distortion of only -4.9%, this lens is optimized for geometric accuracy. It is highly sought after as an ITS Lens (Intelligent Transportation) and for Medical & Endoscope Lenses applications, where maintaining the spatial relationship of objects is essential for distance measurement and 3D reconstruction.
Robust 7G Optical Glass & IR Cut Filter:
The 7G (7-element glass) construction ensures thermal stability and long-term durability, positioning it as a reliable CCTV Lens for outdoor surveillance. The integrated IR cut filter eliminates infrared interference during the day, providing true-to-life color reproduction for high-end security and industrial imaging.
Detailed Parameter Table
| Feature | Specifications | Advantage |
|---|---|---|
| Resolution | 10 Megapixel | Ultra-high definition for AI & human analysis |
| Image Format | Φ6.0mm | Compatible with high-end 1/1.8″ & 1/2″ sensors |
| Field of View (FOV) | 190° @ Φ6.0 | Eliminates blind spots with panoramic coverage |
| Focal Length | 2.0mm | Optimized for ultra-wide angle performance |
| Distortion (F-Theta) | -4.9% | Superior linearity for mapping and measurement |
| Aperture | F2.5 | Balanced light intake for clear day/night imaging |

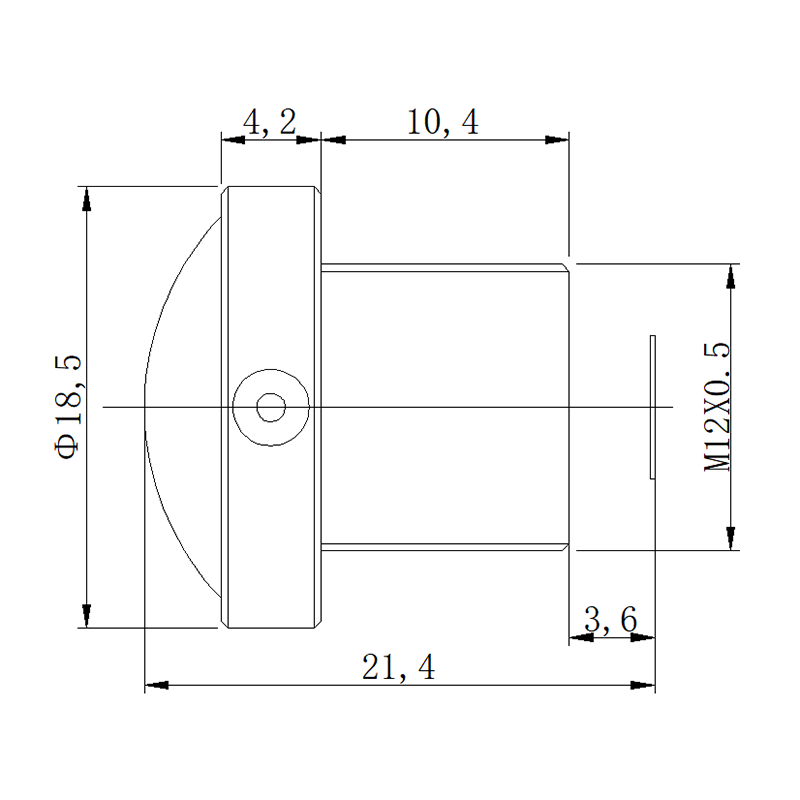

| Mount | M12 x 0.5 | Industry-standard for easy embedded integration |
| Construction | 7G + IR Cut | All-glass optics for extreme durability & clarity |
FAQs
Q: Is this 10MP lens compatible with standard M12 sensors?
A: Yes, it is a high-performance M12 Lens designed to fit standard M12x0.5 mounts. It is compatible with large format sensors up to Φ6.0mm.
Q: Can this be used as an Automotive Lens for 360° cameras?
A: Absolutely. The 190° FOV is perfect for 4-camera 360° surround-view systems, providing ample overlap for seamless image stitching.
Q: Does it support night vision?
A: This version includes an IR cut filter for superior daytime color. For specialized IR night vision, we can provide a version without the filter to work with 850nm/940nm light sources.
