Description
Upgrade your optical system with this high-performance 8MP 4.1mm M12 Lens. Engineered with a 1/2.5″ image format and an ultra-low distortion profile of less than 0.4%, this fixed focal lens delivers crisp, true-to-life images without geometric warping. Its robust 3G2P (3 Glass + 2 Plastic) optical structure combined with an integrated IR cut filter ensures superior thermal stability and color accuracy, making it the premier choice for demanding industrial, automotive, and smart vision applications.
Key Product Highlights
- 8MP Crystal-Clear Resolution: Captures ultra-sharp details to satisfy high-density sensor requirements, eliminating pixelation in critical inspections.
- Ultra-Low Distortion (< -0.4%): Eliminates geometric warping across the entire 83° diagonal field of view, saving algorithm calibration time in machine vision.
- Short 0.1m Minimum Object Distance: Enables precise close-up imaging and macro inspection without losing focus or resolution clarity.
- Compact M12 Mount Design: Measuring just Φ14×17.2mm, it fits seamlessly into space-constrained housings and miniature camera modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.5″ |
| Focal Length | 4.1mm |
| Aperture (F/No.) | F2.8 |
| Field of View (F.O.V.) | 83° (D) / 66° (H) / 49° (V) |
| Resolution | 8 Megapixel (8 MP) |
| Optical Distortion | < -0.4% |
| Mount Type | M12 x 0.5 |
| Iris Type | Fixed |
| Minimum Object Distance (M.O.D.) | 0.1m |
| Total Track Length (T.T.L.) | 19.7mm |

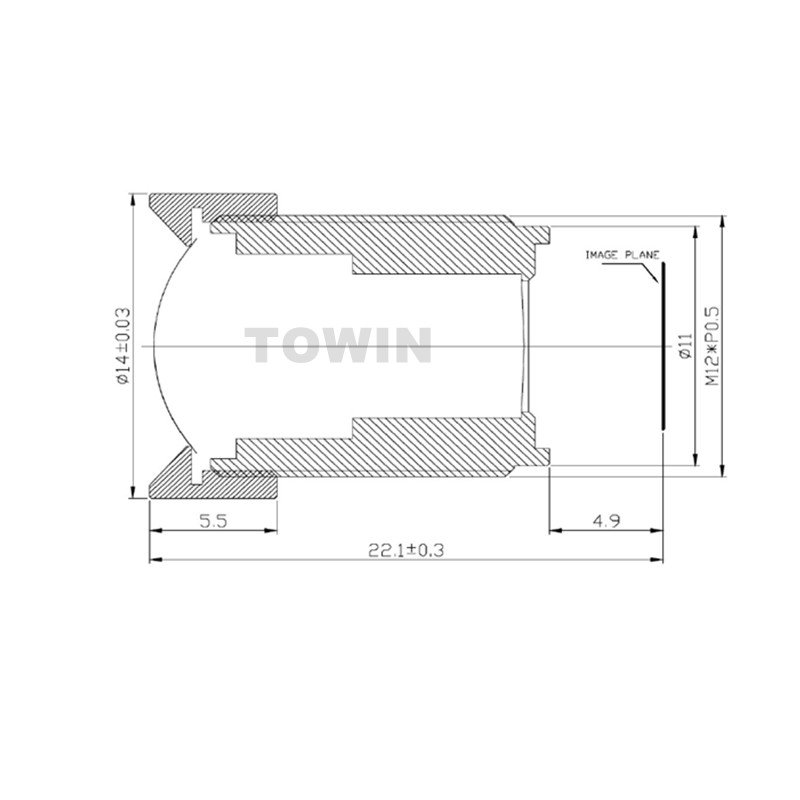

| Dimensions | Φ14 × 17.2mm |
| Lens Construction | 3G2P + IR Cut Filter |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Target Equipment
This 8MP low-distortion lens is purposely built for high-precision environments where visual accuracy cannot be compromised. It excels in factory automation (FA), where it provides sharp tracking for high-speed robotic arms, PCB inspection alignment, and automated optical inspection (AOI) systems. Thanks to its wide-angle coverage and robust 3G2P glass-plastic hybrid design, it delivers outstanding reliability under fluctuating outdoor temperatures, making it highly effective for automotive advanced driver assistance systems (ADAS), blind-spot monitoring, and smart traffic enforcement (ITS) cameras.
Compatible Equipment List:
- Industrial & FA Cameras: Fits high-resolution 1/2.5″, 1/2.8″, and 1/3″ CMOS sensors from Sony, Onsemi, and OmniVision.
- Automotive Modules: Seamlessly integrates with vehicle rear-view cameras and surrounding-view monitor (SVM) systems.
- Smart Security & IoT: Enhances premium biometrics, facial recognition terminals, and high-end smart video doorbells.
- Embedded Vision Systems: Perfect for Raspberry Pi, Jetson Nano camera modules, and custom drone/UAV mapping payloads.
Designed for high-precision machine vision and rugged automotive applications.
Frequently Asked Questions
Q: Can this 8MP M12 lens be used on a sensor smaller than 1/2.5″?
A: Yes, it is fully backward compatible with smaller sensor sizes such as 1/2.7″, 1/2.8″, and 1/3″. Please note that using a smaller sensor will narrow the final field of view (F.O.V.).
Q: What does the “<-0.4% Distortion” mean for my image quality?
A: This indicates an ultra-low distortion optical design. Images will have virtually zero noticeable barrel or pincushion warping, allowing your software to perform precise measurements without digital geometric correction.
Q: Does this lens feature an integrated IR cut filter?
A: Yes, the lens comes built-in with an IR cut filter (650nm standard) to block infrared interference during daylight, ensuring accurate and vivid color reproduction.
Q: Is the 3G2P construction suitable for outdoor automotive environments?
A: Absolutely. The 3 Glass and 2 Plastic element hybrid configuration provides excellent thermal stability, preventing focus shift or image degradation when exposed to extreme outdoor temperatures.
Q: Can I request a customization for the IR filter or mechanical dimensions?
A: Yes, we offer tailored optical solutions. We can customize the IR filter coatings (e.g., dual-band or specific bandpasses) and modify mechanical mounts to meet your hardware requirements.
Q: What is the benefit of the 0.1m M.O.D. (Minimum Object Distance)?
A: It allows the camera to focus on objects as close as 10 cm away from the lens. This is critical for compact medical devices, close-range barcode scanners, and robotic components inspection.
