Description

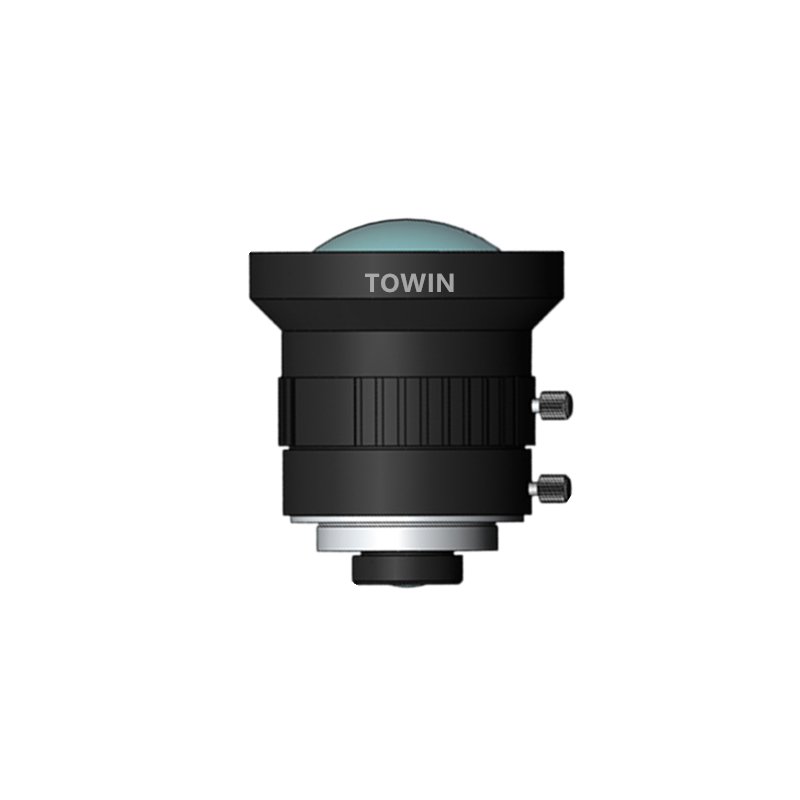

This 4.5mm fixed focal C-Mount lens features 5MP high resolution, ultra-low distortion and wide-angle field of view, perfectly built for industrial machine vision, CCTV surveillance and ITS traffic monitoring. Designed for 1/1.8″ image sensor, it delivers sharp, undistorted and high-clarity imaging in daily and industrial working environments. With manual focus and manual iris adjustment, this low distortion lens offers flexible parameter tuning to match diverse shooting distances and light conditions, a cost-effective option for industrial and security optical systems.
Core Product Highlights
- 89° wide-angle coverage: Eliminates blind spots for large-area monitoring and visual detection.
- <1.2% low distortion rate: Restores real scene and avoids image stretching deviation.
- 5MP high-definition resolution: Captures fine details for accurate machine vision analysis.
- C-Mount universal compatibility: Easy installation with mainstream industrial and surveillance cameras.
- Adjustable F2.8~F16 aperture: Adapts strong light and low-light complex environments.
Detailed Product Specifications
| Item | Parameter |
|---|---|
| Image Format | 1/1.8″ |
| Focal Length | 4.5mm |
| Diagonal FOV (16:9) | 89°(D) |
| Horizontal FOV | 82°(H) |
| Vertical FOV | 52°(V) |
| Resolution | 5 MP |
| Aperture Range | F2.8~16 |
| Distortion | ＜1.2% |
| Mount Type | C-Mount |
| B.F.L. | 8.4mm |
| Iris Mode | Manual |
| Focus Mode | Manual |
| Zoom Mode | Manual |
| M.O.D | 0.1m |
This product complies with RoHS certification and ISO9001 quality control standards, supports third-party professional testing, and meets EU and domestic security equipment access standards to fully guarantee long-term stable use and product safety.
Application Scenarios & Compatible Devices
This high-performance industrial lens and machine vision lens is widely applicable to industrial automated detection, factory assembly line visual inspection, outdoor CCTV security monitoring, intelligent traffic ITS monitoring, factory perimeter protection and precision image collection scenarios. Its 0.1m short minimum object distance supports close-range shooting, suitable for small part detection, product defect inspection and on-site real-time monitoring. The low-distortion design ensures accurate data output, effectively solving the problem of picture distortion in traditional wide-angle lenses and improving detection and monitoring accuracy in industrial and security fields.
It is perfectly compatible with 1/1.8-inch mainstream CMOS and CCD image sensors, matches C-Mount industrial cameras, machine vision acquisition equipment, network surveillance cameras and intelligent traffic shooting modules. Standard C-Mount interface requires no additional adapter bracket, realizing quick installation and disassembly. Custom parameter support is available to meet personalized matching needs of different industrial vision and security equipment.
Designed for industrial machine vision & CCTV surveillance application.
FAQs
Q1: What sensor size does this C-Mount lens support?
A1: It is optimized for 1/1.8″ image sensors and compatible with matched mainstream sensor models.
Q2: Is this wide-angle lens suitable for close-range shooting?
A2: Yes, the M.O.D is 0.1m, ideal for short-distance detection and close-range monitoring tasks.
Q3: Can I adjust the focus and aperture manually?
A3: Equipped with manual focus and manual iris design, you can freely adjust according to ambient light and shooting distance.
Q4: What is the distortion level of this industrial lens?
A4: The distortion is controlled below 1.2%, belonging to low distortion lens for high-restoration imaging.
Q5: What fields can this ITS lens be used in?
A5: It covers machine vision, industrial detection, CCTV security, intelligent traffic and other core scenarios.
