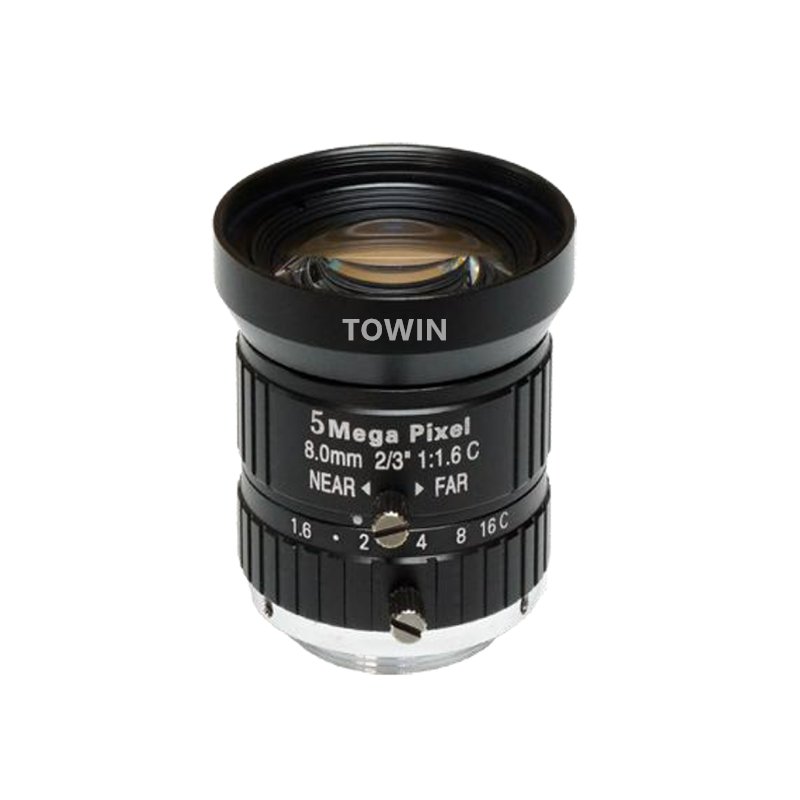

This 8mm 5MP low distortion C-Mount lens is engineered for industrial machine vision and security monitoring scenarios. Featured with 2/3” large image format, F1.6 large aperture and ultra-low distortion design, it delivers sharp, high-clarity imaging in both bright and low-light environments. Compatible with mainstream industrial cameras and surveillance devices, this fixed focal wide angle C-Mount lens balances performance, compatibility and cost-effectiveness for long-term industrial and commercial use.
Core Product Highlights
- 67° wide field of view: Covers larger monitoring and detection areas to reduce blind spots for vision tasks.
- <0.75% low distortion: Ensures straight image restoration, avoiding visual distortion for precision detection.
- 5MP high resolution: Captures detailed footage to meet high-definition identification and analysis needs.
- F1.6 adjustable aperture: Boosts low-light adaptability for stable imaging in complex light conditions.
- Standard C-Mount interface: Quick installation and strong compatibility with industrial vision equipment.
Detailed Product Specifications
| Item | Parameter |
|---|---|
| Image Format | 2/3″ |
| Focal Length | 8mm |
| Diagonal FOV | 67°(D) |
| Horizontal FOV | 56°(H) |
| Vertical FOV | 43°(V) |
| Resolution | 5 MP |
| Aperture | F1.6~C |
| Distortion | ＜0.75% |
| Mount | C-Mount |
| B.F.L. | 5mm |
| Iris Type | Manual |
| Focus Type | Manual |
| Zoom Type | Manual |
| M.O.D. | 0.1m |
This lens complies with RoHS certification and ISO9001 quality control standards. It supports third-party professional testing and meets EU and domestic security equipment access standards, fully eliminating customers’ concerns about product quality and compliance.
Application Scenarios & Compatible Devices
Core Application Scenarios
This C-Mount industrial lens is specially developed for machine vision detection, factory automated production line inspection, industrial defect screening, municipal traffic ITS monitoring, high-definition CCTV security surveillance and on-site visual recognition. Thanks to its low distortion and wide-angle performance, it performs excellently in precision workpiece detection, real-time environmental monitoring and fixed-point video recording. The minimum object distance of 0.1m supports close-range shooting, solving the pain point of short-distance blurring in industrial detection, and the manual focus & iris design allows flexible adjustment to adapt to different shooting distances and light intensity changes in complex industrial environments.
Compatible Equipment List
It perfectly matches 2/3-inch image sensors and is widely compatible with industrial machine vision cameras, FA automated vision modules, ITS traffic monitoring cameras, high-definition CCTV surveillance cameras and various industrial image acquisition equipment. The standard C-Mount structure requires no additional adapter brackets, realizing plug-and-play installation. It can be freely matched with mainstream brand industrial cameras and surveillance accessories to meet diversified equipment upgrading and replacement demands.
Designed for industrial machine vision and CCTV security application.
FAQs
Q1: Is this a low distortion lens for machine vision?
A1: Yes. The optical distortion is controlled below 0.75%, fully meeting precision machine vision detection requirements.
Q2: What mount type does this lens adopt?
A2: It adopts standard C-Mount, easy to install and replace for most industrial cameras.
Q3: Does it support low-light environment shooting?
A3: Equipped with F1.6 large adjustable aperture, it greatly improves light intake for stable low-light imaging.
Q4: What is the effective resolution of this lens?
A4: 5MP high-definition resolution, suitable for clear shooting and detail capture.
Q5: What is the minimum focusing distance?
A5: The M.O.D is 0.1m, ideal for close-range industrial detection and observation.
