Description
Enhance your imaging system with our premium 12MP 2.2mm M12 Drone Fisheye Lens. Specially engineered for 1/2.3″ sensors, this ultra-high-resolution fixed focal lens delivers an immersive 180° ultra-wide field of view (FOV). Combining a bright F2.0 aperture with a compact M12 mount design, it captures sharp, cinematic, edge-to-edge details even in low-light environments, making it the definitive choice for next-generation panoramic vision.
Key Product Features
- 180° Ultra-Wide Panoramic FOV: Captures a complete 180-degree blind-spot-free perspective to maximize situational awareness with a single camera module.
- 12MP Ultra-High Resolution: Crystal-clear optical performance specifically optimized for 4K and 12-Megapixel sensors, preventing pixelation and blurring.
- 1/2.3″ Large Format Compatibility: Supports premium large-format CMOS sensors, offering better light transmission and SNR than standard smaller lenses.
- Compact M12 Mount Integration: Rugged Lens+Holder construction allows seamless, drop-in integration into space-constrained devices without mechanical modification.
Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | Φ7.0mm, 1/2.3″ |
| Focal Length | 2.2mm |
| Field of View (F.O.V.) | 180° @ Φ7.0mm / 158° @ Φ6.28mm / 118° @ Φ4.7mm |
| Resolution | 12 Megapixel (MP) |
| Optical Distortion | -97% (Fisheye) |
| Aperture | F2.0 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.2m |
| B.F.L. (Back Focal Length) | 5.84mm |

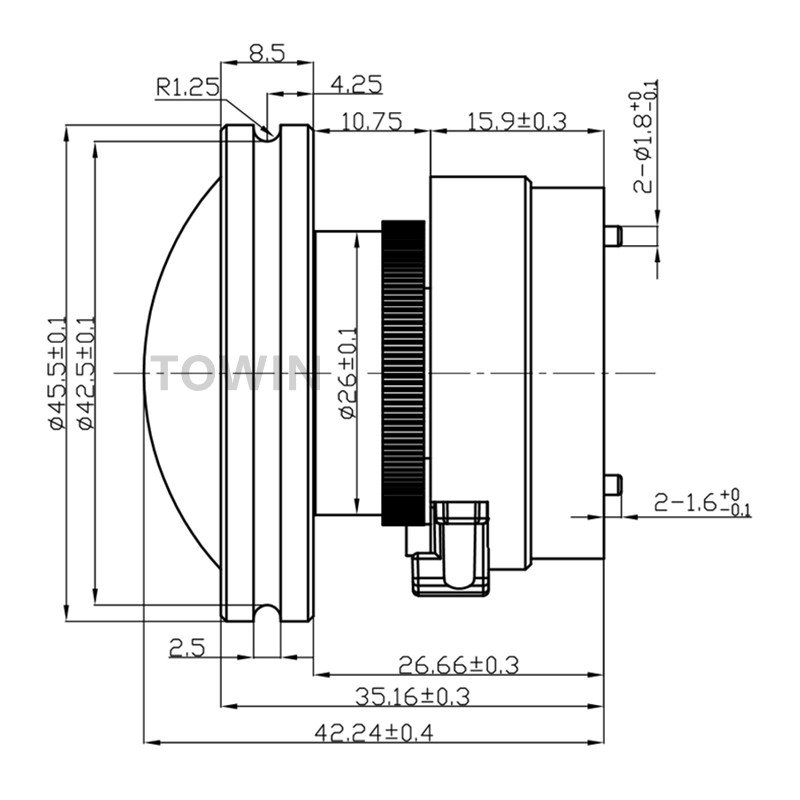

| TTL (Total Track Length) | 42.24mm |
| Mount Type | M12 x P0.5 |
| Construction | Lens + Holder |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This industrial-grade M12 wide-angle lens is purpose-built for applications requiring an expansive field of view within an ultra-compact footprint. It excels in Drone & UAV aerial photography, providing pilots with immersive, sweeping panoramic shots. In Automotive electronics, it serves as the core optical component for 360° surround-view systems and backup cameras. Additionally, its high 12MP resolving power makes it highly effective for Machine Vision automated inspection lines and high-end CCTV smart security setups, where capturing expansive areas with high pixel density eliminates the need for multiple camera deployments.
Compatible Device List
- Sensors: Native support for 1/2.3″ format sensors, backward compatible with 1/2.5″, 1/2.8″, and 1/3″ mainstream CMOS sensors (Sony IMX series, OmniVision, etc.).
- UAV & Action Cameras: Directly compatible with GoPro-style action camera replacement blocks, custom racing drones, and mapping UAV payloads.
- Smart Security & IoT: Perfect fit for AI-powered panoramic IP cameras, smart video doorbells, and wide-angle biometric access control terminals.
- Industrial Vision: Integrates smoothly with Raspberry Pi high-quality camera modules, Jetson Nano vision kits, and industrial smart cameras.
“Designed for panoramic surveillance, drone vision, and automotive surround-view applications.”
Frequently Asked Questions
Q: What does the -97% distortion rate mean?
A: This value indicates a deliberate optical design for a fisheye lens. It compresses an ultra-wide 180-degree view into a circular or panoramic image format, which can be de-warped via software into a flat image if required.
Q: Is this lens compatible with smaller sensors like the 1/2.8″ or 1/3″?
A: Yes, it is backward compatible. However, please note that using a smaller sensor will crop the image format, resulting in a narrower horizontal field of view (e.g., 158° or 118° as detailed in our specs).
Q: Does this M12 lens come with an IR-cut filter?
A: This standard configuration is a standalone optical lens with a holder. We can customize the integration of 650nm IR-cut filters or day/night dual-pass filters on the rear lens element based on your project requirements.
Q: Can we adjust the focus or iris on this model?
A: No, this model is a fixed focal lens with a fixed F2.0 iris. Focusing is achieved by threading the lens into your camera module’s mount during factory calibration, then locking it in place with a set screw or glue.
Q: Does this lens support 4K video recording?
A: Absolutely. With its high-performance 12 Megapixel optical resolution, it easily outclasses the resolving power needed for standard 4K (8.3MP) video streams, ensuring sharp, uncompressed details.
Q: Do you support custom modifications for bulk orders?
A: Yes. As an ISO9001 certified manufacturer, we offer full OEM/ODM customization, including altering the BFL, integrating custom holders, or adapting the lens casing for specific rugged environments.
