Description
This 1/2.7″ 3.1mm M12 Wide Angle lens delivers 2MP full HD resolution with an ultra-wide 133° diagonal field of view, designed for CCTV Lens, Automotive Lens and Machine Vision Lens scenarios. Built with 2G5P optical structure and F1.6 large aperture, it balances high-definition imaging, wide coverage and compact installation, perfectly matching OV2710 sensor and various miniature intelligent camera devices.
Product Core Highlights
- Ultra-wide 133° DFOV eliminates blind spots for full-scene monitoring
- F1.6 large aperture enhances low-light imaging performance day and night
- 2MP 1080P resolution supports clear and delicate video output
- M12X0.5 standard mount for fast and universal installation
- Compact 22.34mm T.T.L design fits narrow miniature device space
Detailed Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.7″ |
| Focal Length | 3.1mm |
| F.O.V(OV2710) | 133°(D) / 111°(H) / 60°(V) |
| Resolution | 2MP (1920×1080) |
| TV Distortion | <-14% |
| Aperture | F1.6 |
| Mount | M12X0.5 |
| Iris | Fixed |
| Focus | Manual |
| Zoom | Fixed |

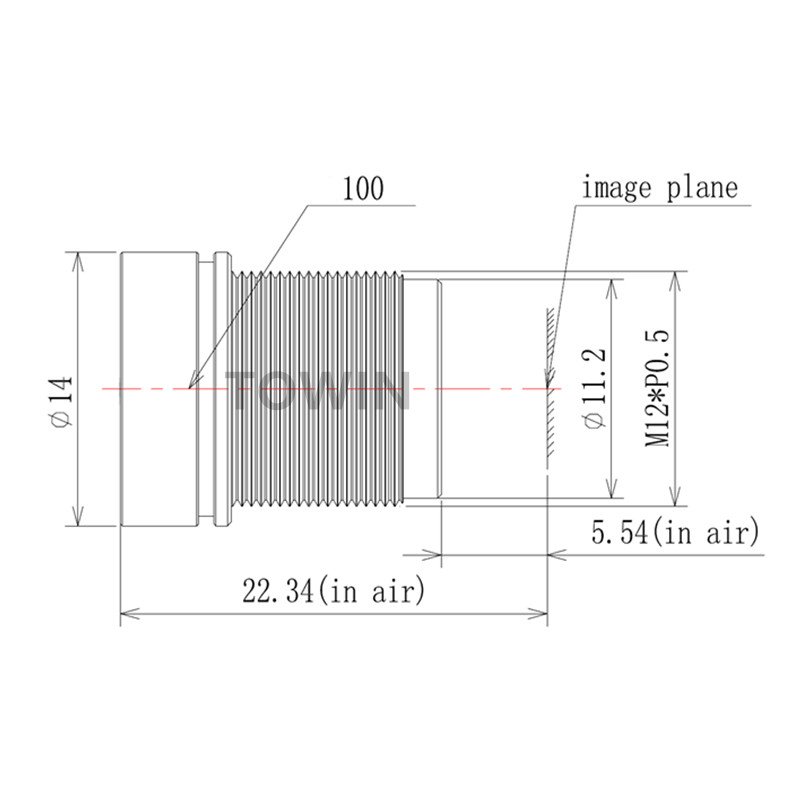

| T.T.L | 22.34mm |
| Construction | 2G5P |
| FOV Point | 2.29mm |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
This ultra-wide angle Wide Angle Lens is widely applied in vehicle driving recorders, automotive rear view monitoring, home smart doorbells, indoor and outdoor CCTV security cameras, small industrial machine vision detection, intelligent traffic ITS monitoring and miniature drone auxiliary imaging scenarios. Featuring ultra-large viewing angle and miniaturized size, it perfectly solves the problem of limited installation space and insufficient monitoring range of small intelligent devices, maintaining stable high-definition imaging in indoor low-light and outdoor complex light environments, and adapting to long-term continuous working conditions of IoT intelligent equipment.
Compatible Device List:
- Compatible with 1/2.7″ mainstream CMOS sensors like OV2710
- Adaptable to automotive dash cam modules, smart home doorbell cameras
- Matches miniature CCTV monitoring modules and small machine vision equipment
- Supports custom focusing adjustment for special visual detection demands
Designed for smart security and automotive vision application.
FAQs
Q1: What sensor does this M12 lens match?
A1: It is perfectly optimized for OV2710 sensor and compatible with 1/2.7″ inch mainstream CMOS sensors.
Q2: Is this lens suitable for automotive monitoring?
A2: Yes, it belongs to Automotive Lens with 133° ultra-wide view, ideal for dash cam and car rear view systems.
Q3: Does this lens support low-light imaging?
A3: The F1.6 large aperture greatly improves light intake, ensuring clear imaging in low-light indoor and night environments.
Q4: Can the focal length or zoom be adjusted?
A4: It is a Fixed Focal Lens with fixed focus and fixed zoom, manual focusing is available.
