Description
This 1.6mm M12 fisheye lens features an ultra-wide 205° horizontal field of view, 2MP high resolution and 6G+IRF optical construction. Designed with fixed aperture and manual focus, it delivers panoramic imaging, clear day and night performance, and compact overall size. It is widely compatible with mainstream CMOS sensors and ideal for automotive, CCTV, industrial machine vision and intelligent monitoring applications.
Product Core Highlights
- 205° super wide FOV eliminates monitoring blind spots for full panoramic coverage
- 2MP resolution ensures sharp and detailed imaging for daily monitoring needs
- 6G+IRF optical structure realizes accurate infrared correction and low light performance
- M12X0.5 standard mount easy installation with no extra bracket modification
- F2.0 large aperture improves light intake for stable low-light shooting
Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Size | Φ5.8mm |
| Focal Length | 1.6mm |
| Horizontal FOV | 205°@5.8mm / 143°@4.3mm |
| Vertical FOV | 105°@3.2mm / 72°@2.2mm |
| Resolution | 2 MegaPixel |
| Distortion | ＜99% |
| Aperture | F2.0 Fixed |
| Mount | M12X0.5 |
| Iris | Fixed |
| Focus Mode | Manual |
| Zoom Mode | Fixed |

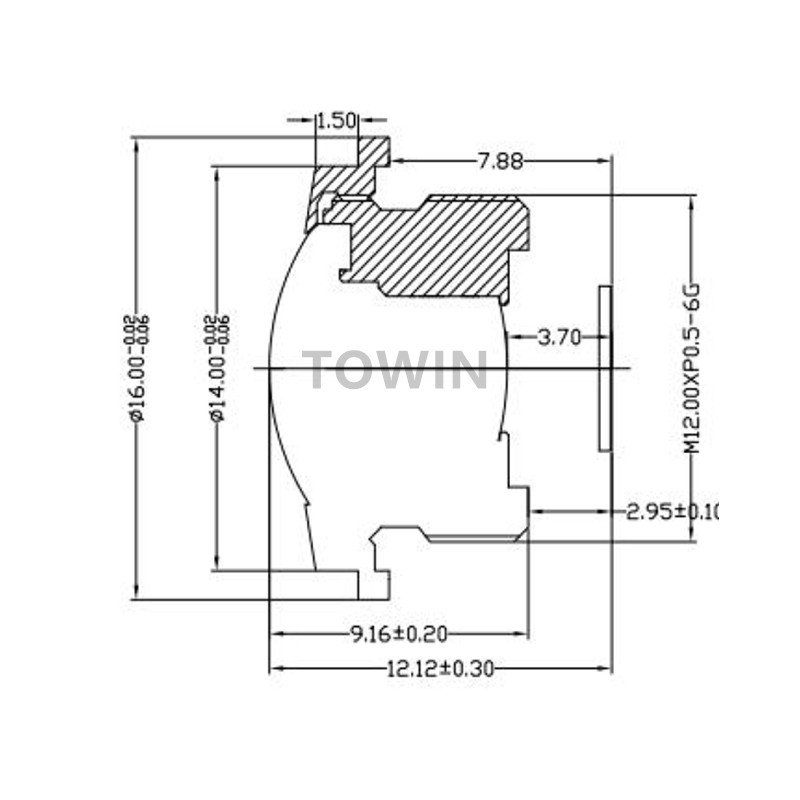

| T.T.L. | 12.12mm |
| Optical Construction | 6G+IRF |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
This ultra-wide angle M12 fisheye lens is perfectly tailored for automotive panoramic surround view, vehicle rear view monitoring, residential and commercial CCTV security, intelligent doorbell camera, industrial miniature machine vision detection, ITS traffic road monitoring and smart IoT sensing devices. Its 205° panoramic viewing angle completely covers dead corners that ordinary lenses cannot capture, and the compact 12.12mm total length fits narrow installation spaces perfectly. It maintains stable imaging performance in indoor low-light, outdoor all-weather and vehicle high-vibration environments, meeting long-term continuous working demands of smart monitoring and industrial vision systems.
Compatible with mainstream 1/2.8 and 1/3 inch CMOS image sensors, it matches automotive panoramic camera modules, smart visual doorbells, DIY security cameras, industrial robot vision modules and traffic monitoring cameras. The standard M12X0.5 thread mount enables direct assembly without adapter rings, supporting batch equipment matching and customized project deployment.
Designed for automotive, CCTV and industrial machine vision application.
FAQs
Q1: What is the field of view of this fisheye lens?
A1: It offers 205° horizontal FOV at 5.8mm image size, plus multiple vertical and horizontal FOV options for different mounting demands.
Q2: Does this lens support infrared night vision?
A2: Yes, built with 6G+IRF optical structure, it achieves professional IR correction and clear night imaging.
Q3: What mount type does this lens adopt?
A3: Standard M12X0.5 thread mount, compatible with most M12 base camera modules on the market.
Q4: Is this a zoom or fixed focal lens?
A4: It is a fixed focal & fixed zoom lens with 1.6mm fixed focal length, no zoom adjustment needed.
