Description

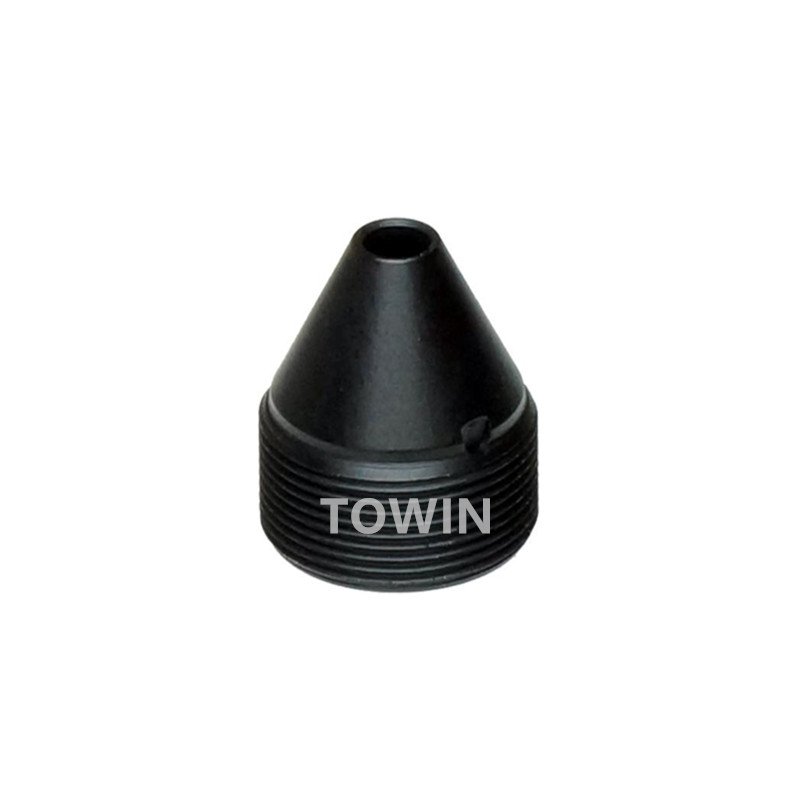

Optimize your precision imaging systems with our high-performance Megapixel 10mm M12 Pinhole Lens. Engineered with a premium fixed focal lens design and a standard M12x0.5 mount, this optical solution provides a narrow, highly focused 40° diagonal field of view on large-format 1/2″ sensors. Featuring manual focus adjustment and a bright F2.0 aperture, it delivers exceptional clarity and a low distortion lens profile. It is the perfect choice for industrial automation, high-end surveillance, and factory inspection tasks that require sharp details without geometric image warping.
Key Product Highlights
- Narrow 40° Field of View: Features a 10mm mid-telephoto focal length that excels at distance narrow-angle captures, providing detailed close-ups without wide-angle curvature.
- Large 1/2″ Sensor Format Coverage: Perfectly matches larger image sensors to maximize light transmission and pixel resolution across the entire frame.
- Precise Manual Focus Control: Offers tactile manual focusing with a short 0.2m minimum object distance, giving engineers precise control over the depth of field.
- Ultra-Compact TTL Profile: Measures only 16.8mm in Total Track Length, offering a powerful long-focal solution inside an incredibly space-saving micro chassis.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2″ |
| Focal Length | 10mm |
| Field of View (F.O.V.) | 40° (Diagonal) / 33° (Horizontal) / 25° (Vertical) |
| Resolution | Megapixel (High‑Definition Optical Clarity) |
| Optical Distortion | Minimal (Low Distortion Optical Alignment) |
| Aperture | F2.0 (Fixed Iris) |
| Mount Type | M12 x 0.5 |
| Focus Type | Manual |
| Zoom Type | Fixed |
| Total Track Length (T.T.L.) | 16.8mm |
| Minimum Object Distance (M.O.D.) | 0.2m |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Devices
Core Application Scenarios
This 10mm M12 Pinhole lens is primarily developed for factory automation (FA lens environments), industrial barcode scanning, and precise Machine Vision lens dimension measurement systems. Thanks to its native low-distortion profile and tight 40-degree field of view, it is ideal for license plate recognition (LPR/ANPR) in intelligent transportation setups (ITS lens), automated optical inspection (AOI), and PCB defect sorting. The short 16.8mm TTL footprint ensures seamless integration into compact robotic arms and smart CCTV lens enclosures where long-distance, high-contrast imagery is mandatory.
Compatible Device List
- Sensors: Optimized for larger 1/2″ CMOS sensors, and backwards compatible with 1/2.5″, 1/2.7″, and 1/3″ sensor chips (such as Sony IMX and Onsemi series).
- Hardware: Fits standard industrial camera housings, smart IoT security frameworks, embedded Raspberry Pi/Arduino high-definition camera blocks, and smart factory code readers.
- Customization: Supports specific mechanical modifications, anti-vibration locking glue application, or specialized optical coatings to match harsh chemical or high-vibration manufacturing lines.
“Designed for Machine Vision & Factory Automation applications”
Frequently Asked Questions
Q: Why should I choose a 10mm lens over a 2.1mm or 2.8mm lens?
A: Standard 2.1mm or 2.8mm lenses are ultra-wide lenses that cause geometric distortion. This 10mm lens acts as a mid-telephoto lens, offering a narrower 40° view that isolates objects at a distance with straight, unwarped lines.
Q: Is this lens compatible with standard C-mount industrial cameras?
A: This is a native M12 lens. To utilize it on a professional C-mount or CS-mount industrial camera, you simply need to screw it into a low-profile M12-to-C/CS mechanical adapter.
Q: How do I adjust the focus on this lens?
A: It features a Manual Focus interface. You calibrate focus during installation by threading the lens barrel further into or out of the M12 holder until your image plane is completely sharp, then securing it.
Q: Can this lens handle low-light industrial environments?
A: Yes. The bright F2.0 aperture captures a substantial volume of light, minimizing digital noise and allowing fast shutter speeds on automated factory assembly lines.
Q: What does the 16.8mm TTL specification mean for my design?
A: The 16.8mm Total Track Length indicates that the lens is structurally shallow. It allows you to build exceptionally compact camera setups that still retain long-focal tracking capabilities.
Q: Does this lens include a motorized or adjustable iris?
A: No, this is a Fixed Iris lens. The aperture is mechanically locked at F2.0 to eliminate moving components, drastically boosting its longevity and resistance to heavy industrial vibrations.
