Description
Achieve flawless visual precision and elite clarity with our state-of-the-art 12.5MP 4.25mm M12 low distortion lens. Specially engineered for large-format image sensors up to Max Φ9.1mm (including 1/2.3″ and 1/2.5″), this ultra-high-definition fixed focal lens outputs a perfectly calibrated 73° horizontal field of view with a stunning TV distortion of less than 1%. Featuring a robust 7G+IRCF (7 layers of glass plus an integrated infrared cut filter) construction and a wide temperature tolerance, it delivers unmatched geometric accuracy required for professional aerial surveying and automated inspections.
Key Product Highlights
- Virtually Distortion-Free Imagery (<1%): Engineered with a advanced 7-layer all-glass optical structure to limit TV distortion under 1%, eliminating the need for digital edge de-warping.
- Elite 12.5MP Ultra-HD Resolution: Resolves extreme fine details on high-density 4K/8K sensors, ensuring sharp edge-to-edge contrast and superior digital zoom capabilities.
- Rugged All-Glass 7G+IRCF Structure: Premium multi-coated glass elements provide exceptional scratch resistance and light transmission, while the built-in IRCF prevents daylight color wash.
- Extreme Weather Performance (-20°C to +80°C): Maintains absolute focus stability and optical resolution under severe thermal environments, making it ideal for continuous outdoor deployments.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Format | Max Φ9.1mm (Highly compatible with 1/2.3″, 1/2.5″, etc.) |
| Focal Length | 4.25mm |
| F.O.V. (1/2.3″) | 86° (D) / 73° (H) / 59° (V) |
| Resolution | 12.5 Megapixel |
| TV Distortion | < -1% |
| Aperture | F2.8 |

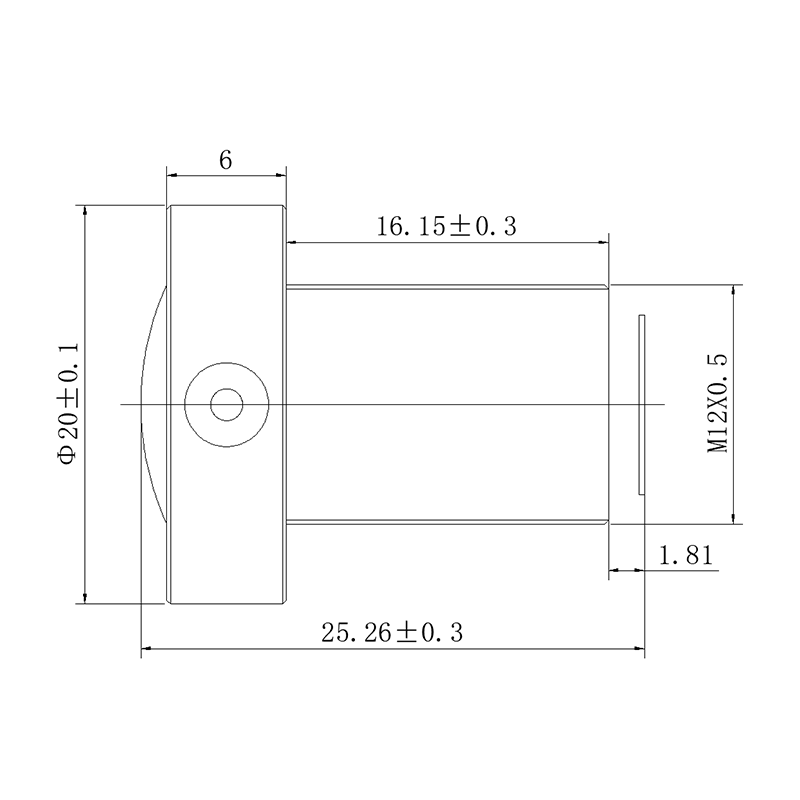

| Mount Type | M12X0.5 (Board Mount) |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.2m |
| M.B.F.L. (Mechanical Back Focus) | 1.81mm |
| Working Temperature | -20°C ~ +80°C |
| Optical Construction | 7 Glass Layers + IR Cut Filter (7G+IRCF) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Equipment
This professional low distortion lens is meticulously custom-designed for multi-industry applications where linear accuracy and lightweight structure are paramount. It serves as an exceptional choice for drone & UAV lenses tasked with agricultural surveying, geographic 3D mapping, and high-resolution aerial photography, where curved horizons are unacceptable. Furthermore, its 12.5MP resolving power makes it an ideal machine vision lens for factory automation (FA), smart sorting arms, OCR text scanning, high-speed PCB matrix inspection, and automated guided vehicles (AGVs) requiring compact M12 lenses to track parts with flawless accuracy.
Compatible Equipment List:
- Sensors: Optimized for large format sensors up to Max Φ9.1mm, seamlessly matching Sony IMX series (e.g., IMX377, IMX477) and other 1/2.3″/1/2.5″ CMOS imaging chips.
- Camera Hardware: Fits standard M12 board cameras, high-end action cameras, drone gimbals, and aerial mapping payloads.
- Industrial Vision Systems: Seamlessly screws into M12 smart board cameras, USB3.0/GigE industrial camera modules, and high-speed GMSL2/MIPI electronics.
- Embedded Platforms: Fully compatible with custom developer kits using Raspberry Pi High Quality camera modules, Nvidia Jetson developer packs, or custom PCBA blocks.
“Designed for ultra-high-definition low-distortion machine vision and aerial surveying applications.”
Frequently Asked Questions
- Q: Why is “<1% TV Distortion” crucial for mapping and industrial vision?
- A: Standard wide-angle lenses suffer from barrel distortion (curved lines). A TV distortion of less than 1% means this low distortion lens keeps straight lines straight, which is absolutely vital for accurate 3D mapping, measurement, and automated industrial inspection software.
- Q: What are the main benefits of the 7G all-glass structure over plastic lenses?
- A: Plastic lenses degrade, warp, and shift focus when heated up by direct outdoor sunlight or internal electronics. The 7G all-glass layout ensures incredible thermal stability across its -20°C to +80°C working range, ensuring your image stays perfectly sharp.
- Q: What type of filter is integrated into the “7G+IRCF” design?
- A: It includes a pre-installed IRCF (Infrared Cut Filter), typically a 650nm filter. This blocks unwanted infrared wavelengths during the day to ensure true-to-life, natural color accuracy for your 12.5MP video stream or photography.
- Q: Can this lens focus on objects that are very close?
- A: Yes. The Minimum Object Distance (M.O.D.) is only 0.2 meters (20cm / approx. 8 inches). This allows the lens to capture crystal-clear macro imagery, making it ideal for close-range assembly line scanning or robotic component tracking.
- Q: Will this lens fit a standard 1/2.5″ sensor camera module?
- A: Yes, it will work beautifully. Since its maximum image circle format is Max Φ9.1mm (1/2.3″), mounting it to a slightly smaller 1/2.5″ sensor will crop the field of view slightly but will yield outstanding edge-to-edge sharpness with zero vignetting.
- Q: Is the iris adjustable on this 12.5 Megapixel lens?
- A: No, it features a fixed iris locked at an aperture of F2.8. A fixed iris is highly preferred for automated industrial lenses and drone gimbals because it removes moving parts, ensuring maximum durability under high vibrations while your camera’s electronic shutter manages exposure dynamically.
