Description
Empower your automated driving and high-end security platforms with our state-of-the-art 7MP 4mm M12 automotive lens. Perfectly optimized for large-format 1/1.7″ image sensors—specifically matching the high-dynamic-range Sony IMX324—this high-definition fixed focal lens outputs an ultra-wide 125° horizontal field of view with an elite 7 Megapixel resolution. Featuring a bright F2.0 aperture and a rugged 6G+IRF (6 layers of glass plus an integrated infrared cut filter) construction, it delivers unparalleled visual accuracy and contrast required for advanced vehicular sensing, aerial flight, and professional panoramic monitoring.
Key Product Highlights
-
- Tailored for Pro-Grade IMX324 Sensing: Specifically designed to resolve the full matrix of premium 1/1.7″ sensors, ensuring maximum light gathering, wider dynamic range, and elite edge-to-edge resolution.
- Elite 7MP Ultra-HD Resolving Power: Engineered with a premium multi-coated all-glass structure to effortlessly resolve high-density pixels, capturing minute forensic details for digital recognition software.
- 144° Panoramic Wide-Angle Vision: Offers a sprawling 144° diagonal and 125° horizontal viewing field, working as a high-performance wide angle lens to eliminate environmental blind spots.
- Rugged All-Glass 6G+IRF Construction: Built with 6 layers of optical glass to secure incredible thermal stability under direct sun, while the pre-installed IRF blocks infrared glare for natural color replication.
Detailed Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/1.7″ (Optimized for large formats like 1/1.8″, 1/2″, etc.) |
| Focal Length | 4mm |
| Field of View (F.O.V. @ IMX324) | 144° (D) / 125° (H) / 63° (V) |
| Resolution | 7 Megapixel |
| Optical Distortion | < -63% |
| Aperture | F2.0 |

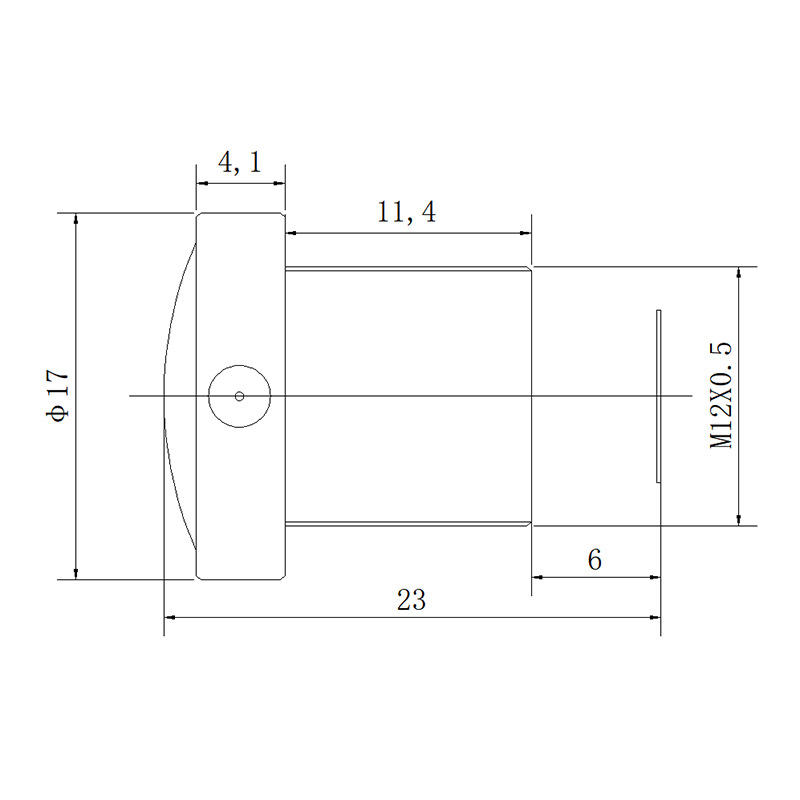

| Mount Type | M12 (Board Mount standard thread) |
| Iris Type | Fixed |
| Focus Control | Manual |
| Zoom Control | Fixed (Fixed Focal Length) |
| B.F.L. (Back Focal Length) | 7.5mm |
| Optical Structure | 6 Layers of All-Glass + IR Filter (6G+IRF) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Equipment
This professional-grade automotive lens is custom-built for high-speed vehicular sensing, aerial mapping, and perimeter protection. It functions as an indispensable asset for forward-facing ADAS cameras, driver monitoring systems (DMS), and electronic surround-view arrays that require robust structural resilience against vehicle vibrations. Furthermore, its light weight and wide 144° diagonal profile make it an exceptional drone & UAV lens for autonomous obstacle avoidance, industrial survey gimbals, and mapping rigs. It also perfectly fits high-end panoramic CCTV lens modules deployed in large public squares and corporate lobbies.
Compatible Equipment List:
-
- Sensors: Custom-tailored for Sony IMX324 sensor boards and highly backward compatible with other 1/1.7″, 1/1.8″, and 1/2″ high-resolution CMOS arrays.
- Automotive Tech: Integrates smoothly into GMSL2/GMSL3 camera modules, vehicular dashcams, and autonomous driving computing chassis.
- Aerial & Security Hardware: Fits high-definition FPV drone cameras, compact mapping payloads, and smart IP dome housings.
- Embedded Solutions: Universally screws into standard M12 smart board cameras hooked up to industrial AI rigs like Nvidia Jetson or custom PCBA blocks.
“Designed for high-performance automotive ADAS sensing, 7MP drone vision, and premium wide-angle surveillance applications.”
Frequently Asked Questions
-
- Q: Why does the spec sheet explicitly optimize for the IMX324 sensor?
-
- A: The Sony IMX324 is a prominent automotive sensor used widely in forward-facing ADAS and self-driving arrays. Mapping this lens directly to it ensures you get the exact field of view values (144° Diagonal / 125° Horizontal) required for active vehicular algorithmic calculations.
-
- Q: What is the main benefit of the 6G all-glass structure for automotive and drone use?
-
- A: Cheap plastic lenses expand or contract under intense heat, causing the camera to go out of focus. This lens uses a 6G glass lens blueprint, which guarantees total thermal stability across severe temperature swings, perfect for vehicle dashboards and outdoor flight.
-
- Q: Does this 144° lens experience massive fish-eye warping?
-
- A: This model has an optical distortion of <-63% to achieve its sweeping panoramic view. While it introduces a classic wide curve characteristic of a fisheye lens, its sharp 7MP resolution ensures that vehicle AI models or computer de-warping software can trace geometric shapes flawlessly.
-
- Q: What type of filter is integrated into the “6G+IRF” structure?
-
- A: It includes a pre-glued IRF (Infrared Filter), usually a 650nm IR-cut filter. This filter blocks unwanted infrared light wavelengths from ruining daytime exposure, ensuring highly natural, true-to-life color accuracy for security and vehicular footage.
-
- Q: Can this M12 lens mount directly to a standard CS-mount box camera?
-
- A: This lens features a native M12 board thread, which is smaller than a CS mount. To lock it onto a standard CS-mount camera frame, you will simply need a standard M12-to-CS thread adapter ring.
-
- Q: Is the iris adjustable on this 7 Megapixel model?
-
- A: No, it features a fixed iris with a bright aperture of F2.0. A fixed iris is standard and highly preferred for automated industrial lenses, drones, and vehicle modules because it removes moving parts, maximizing product lifetime under intense vibrations while the camera shutter dynamically adapts exposure.
-
