Description

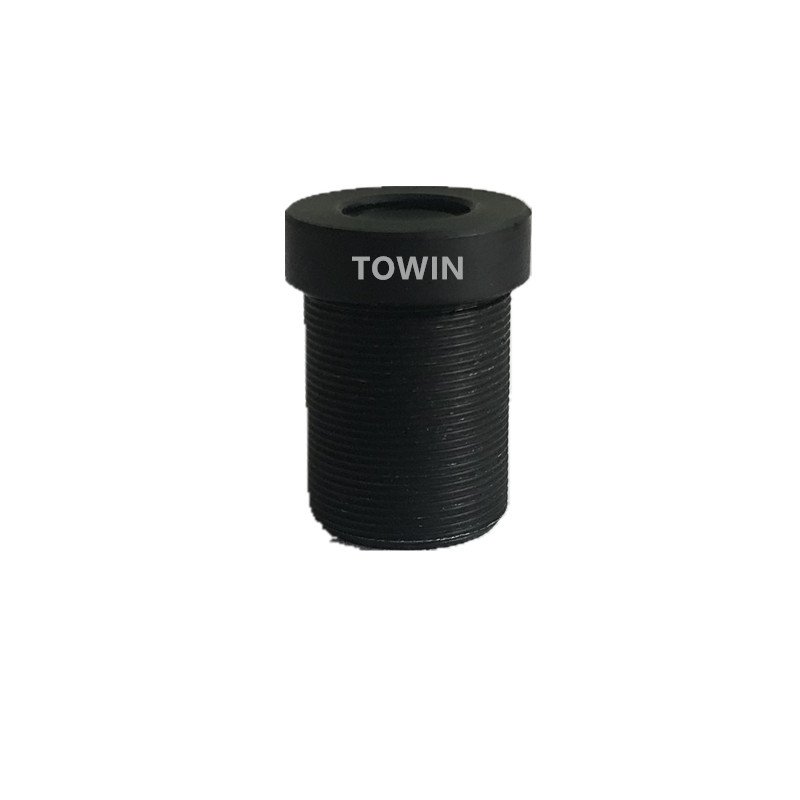

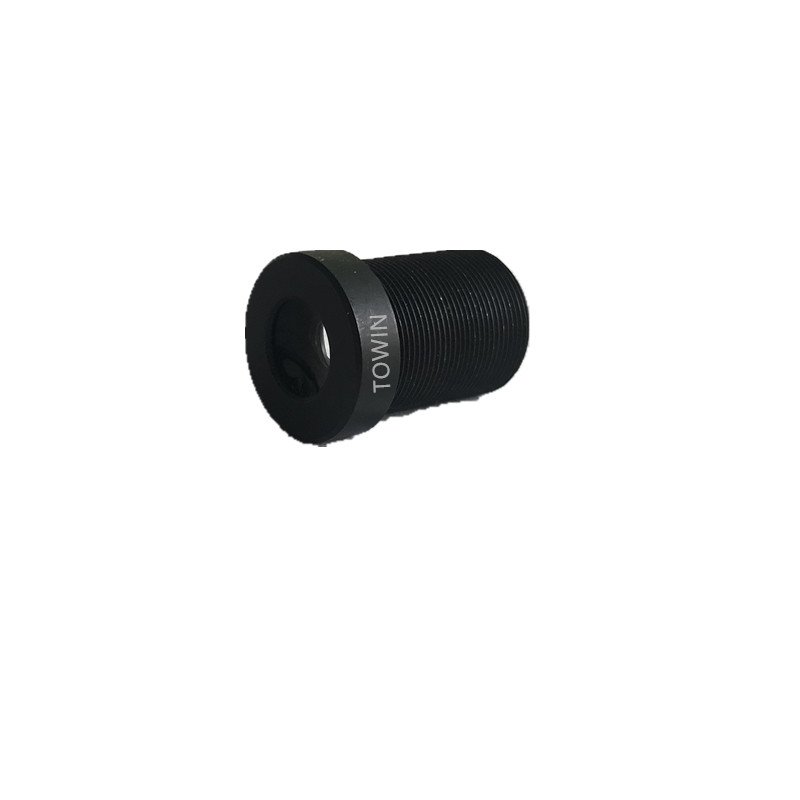

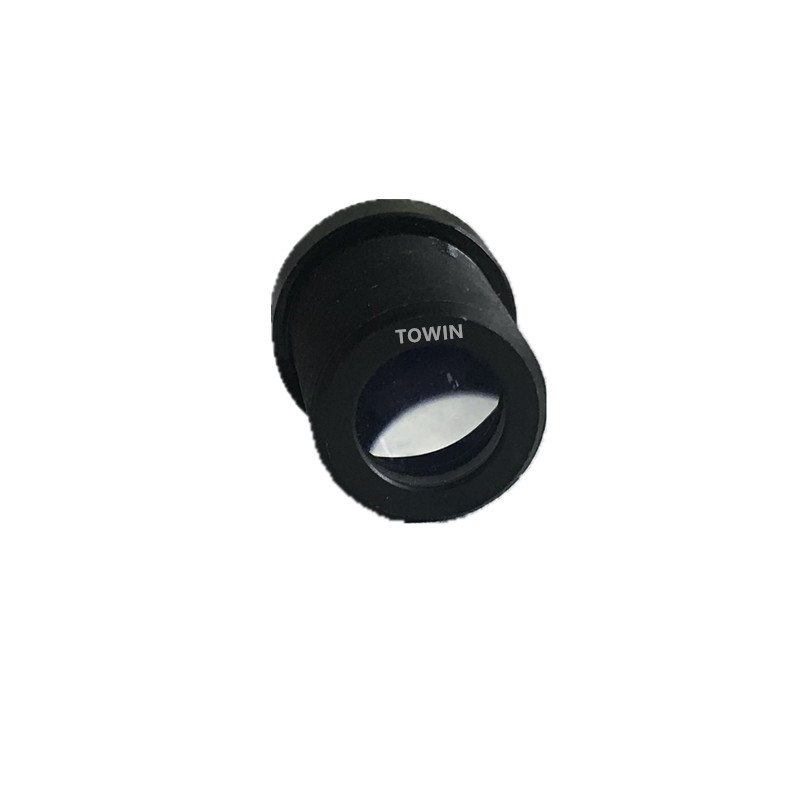

This 6mm F1.4 M12 fixed focal wide-angle lens is purpose-built for 2MP security cameras, industrial vision, and IoT devices. It delivers sharp low-light imaging, wide field of view, and compact dimensions for seamless integration into space-constrained installations.
Key Product Highlights
- F1.4 large aperture captures clear footage day and night (solves blurry night vision in low-light monitoring)
- 75° diagonal wide angle covers more scene area (reduces blind spots for security & machine vision)
- M12 mount universal fit for quick device integration (no custom bracket needed, lowers installation cost)
- 5G optical design ensures stable 2MP high-resolution imaging (minimizes distortion for accurate visual detection)
- Ultra-compact Φ14×19.5mm body fits tight spaces (ideal for mini cameras & embedded industrial equipment)
Detailed Specifications
| Item | Specification |
|---|---|
| Image Format | 1/2.7″ |
| Focal Length | 6mm |
| F.O.V. | 75°(D), 63°(H), 44°(V) |
| Resolution | 2 MP |
| Aperture | F1.4 |
| Mount | M12x0.5 |
| Iris | Fixed |
| M.O.D. | 0.2m |
| Dimension | Φ14×19.5mm |
| Lens Construction | 5G |
This product is RoHS certified, manufactured under ISO9001 quality control, supports third-party testing, and complies with EU and domestic security equipment access standards.
Applications & Compatible Devices
This M12 fixed focal wide-angle CCTV lens excels in compact security, industrial automation, and smart IoT scenarios. It performs reliably in home security, building access control, industrial robot vision, and intelligent transportation monitoring, providing stable wide-view imaging in tight installation spaces without retrofitting. It supports close-range object detection and 24-hour low-light capture, enhancing recognition accuracy for security and industrial vision systems.
Compatible with 1/2.8″, 1/3″ mainstream CMOS sensors; fits smart video doorbells, residential intercom cameras, mini security cams, industrial vision inspection modules, IoT camera modules, and ITS traffic capture devices.
FAQs
Q: Is this lens compatible with 1/3″ sensors?
A: Yes, it works perfectly with 1/2.8″ and 1/3″ sensors for 2MP security and industrial vision devices.
Q: Can it be used for night vision with IR LEDs?
A: Yes, the optical design supports IR night vision for 24/7 monitoring.
Q: What is the minimum working distance?
A: Minimum object distance is 0.2m, ideal for close-range industrial detection and doorbell monitoring.
Q: Is the lens fixed iris or adjustable?
A: Fixed iris F1.4, optimized for low-light performance and stable imaging.
Q: Does it meet EU environmental standards?
A: Yes, RoHS compliant, ISO9001 controlled, and ready for global market access.
