Description
This 1/3″ 2.3mm M12 fisheye lens features a 6G+IR cut optical structure, delivering ultra-wide 170° diagonal field of view and 4MP high-resolution imaging. Designed with manual focus and fixed F2.2 aperture, it supports mainstream CMOS sensors like OV4689 and AR0130. With 25% TV distortion and industrial-grade build quality, this M12 fixed focal lens is ideal for automotive monitoring, CCTV security, industrial vision and wide-angle surveillance devices, offering stable all-day imaging and easy installation.
Key Product Highlights
Field of View/Focal Length Advantages
Covers up to 170° diagonal ultra-wide FOV, eliminates blind monitoring spots perfectly for panoramic shooting needs.
Performance
4 MP high resolution with 6G optical structure, ensures clear sharp imaging day and night with IR cut support.
Compatibility
Standard M12X0.5 mount fits 1/3″ image format, fully compatible with OV4689 and AR0130 mainstream image sensors.
Quality Assurance
Strict industrial production standard, stable B.F.L and TTL parameters, durable structure for long-term continuous operation.

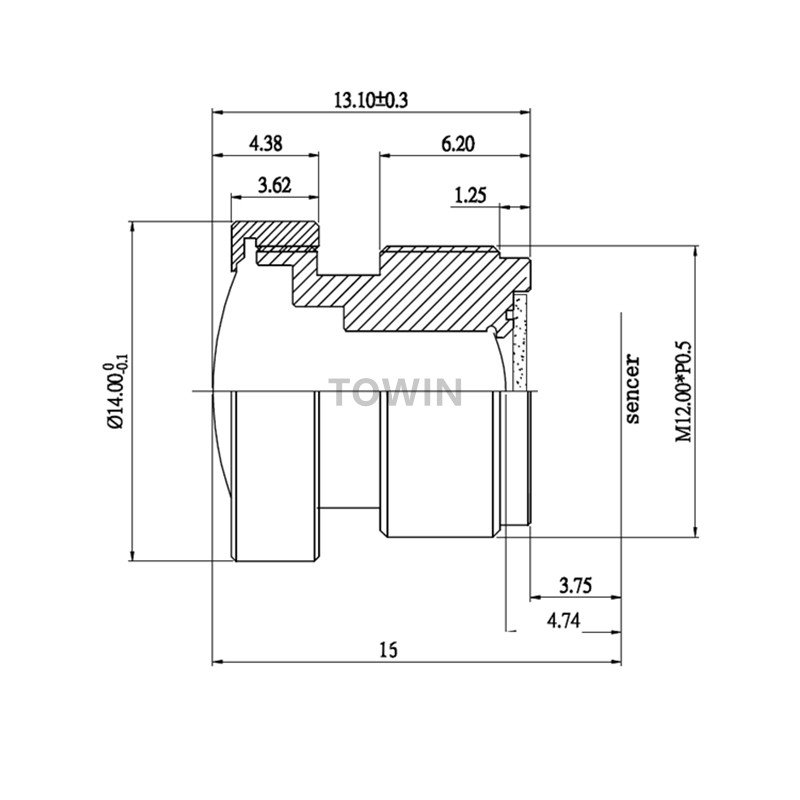

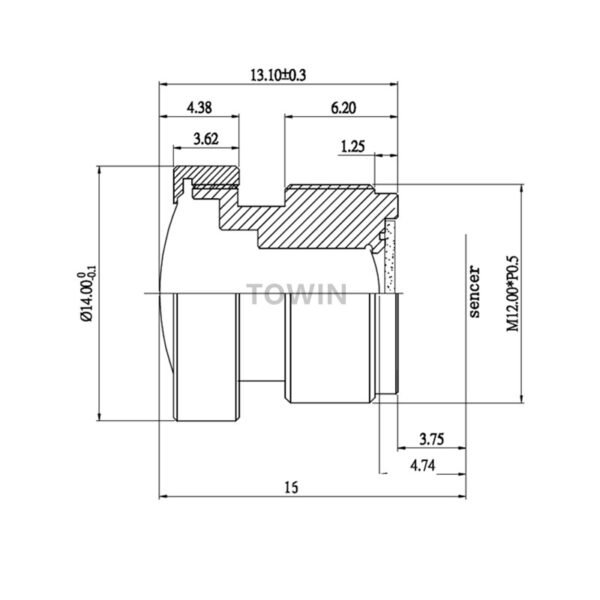

Detailed Product Parameter
| Parameter Item | Specification |
|---|---|
| Image Format | 1/3″ |
| Focal Length | 2.3mm |
| F.O.V. (OV4689) | 170°(D) / 143°(H) / 78°(V) |
| F.O.V. (AR0130) | 160°(D) / 118°(H) / 75°(V) |
| TV Distortion | 25% |
| Resolution | 4 MP |
| Aperture | F2.2 |
| Mount | M12X0.5 |
| Iris | Fixed |
| Focus | Manual |
| B.F.L. | 4.74mm |
| TTL | 16.85mm |
| M.O.D. | 0.3m |
| Construction | 6G+IR cut |
This product is RoHS certified, ISO9001 quality control certified, supports third-party testing, and complies with EU/domestic security equipment access standards, alleviating customer quality concerns.
Product Application Scenarios and Compatible Devices
Core Application Scenarios
Primarily used in automotive surround view monitoring, vehicle reversing cameras, outdoor CCTV surveillance, small industrial machine vision equipment, smart IoT monitoring devices and panoramic security cameras. Especially suitable for narrow installation spaces that require ultra-wide panoramic coverage to reduce monitoring dead zones. It adapts to indoor and outdoor all-weather working environments, maintains stable imaging effect under strong light and low light conditions, and reduces later image correction costs for system integrators.
Compatible Devices List
Compatible with 1/3-inch mainstream CMOS image sensors including OV4689 and AR0130. Adapted to automotive panoramic driving recorder modules, mini CCTV security cameras, industrial visual inspection equipment, smart home monitoring cameras and IoT embedded imaging modules. Supports customized optical parameters to meet the adaptive matching needs of different terminal device developers.
Designed for automotive, CCTV and industrial vision application.
FAQs
Q: What image sensors is this 2.3mm M12 lens compatible with?
A: It perfectly matches 1/3″ format sensors, especially OV4689 and AR0130 for plug-and-play use.
Q: Is this lens suitable for outdoor all-weather use?
A: Yes, the 6G+IR cut structure supports day and night switching, adapting to indoor and outdoor long-term monitoring.
Q: What is the minimum focusing distance of this lens?
A: The minimum object distance is 0.3m, meeting close-range and medium-range imaging requirements.
Q: Does it support easy installation without extra accessories?
A: Standard M12X0.5 thread mount enables direct installation without modifying lens brackets.
