Description

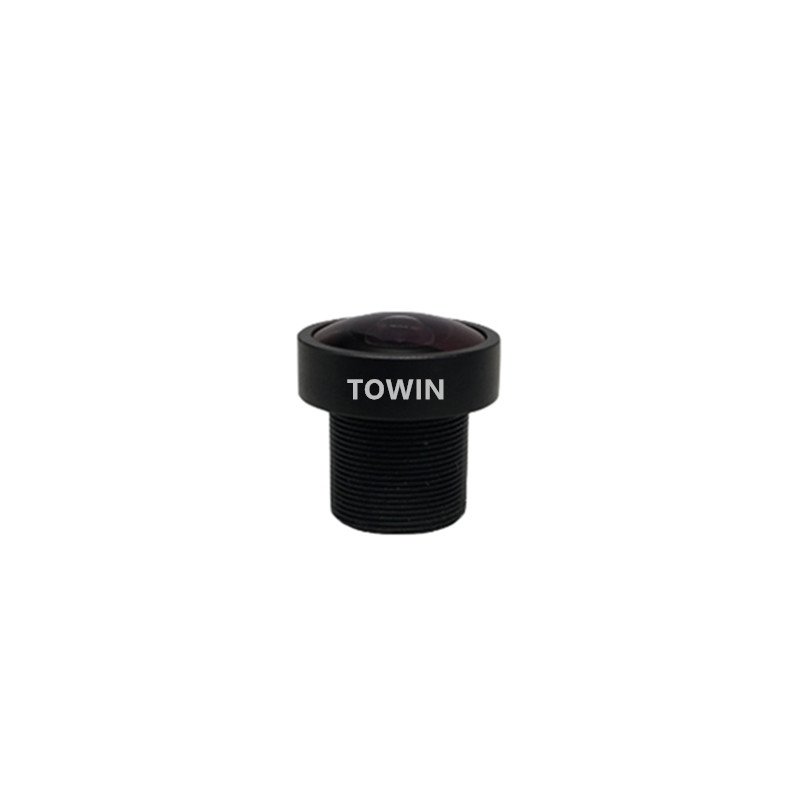

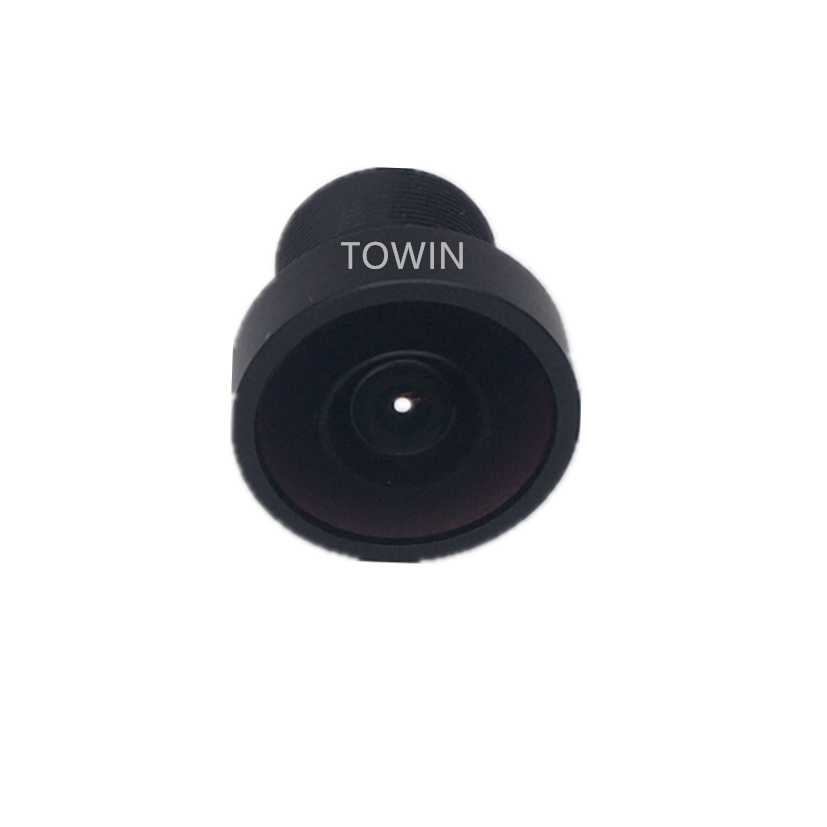

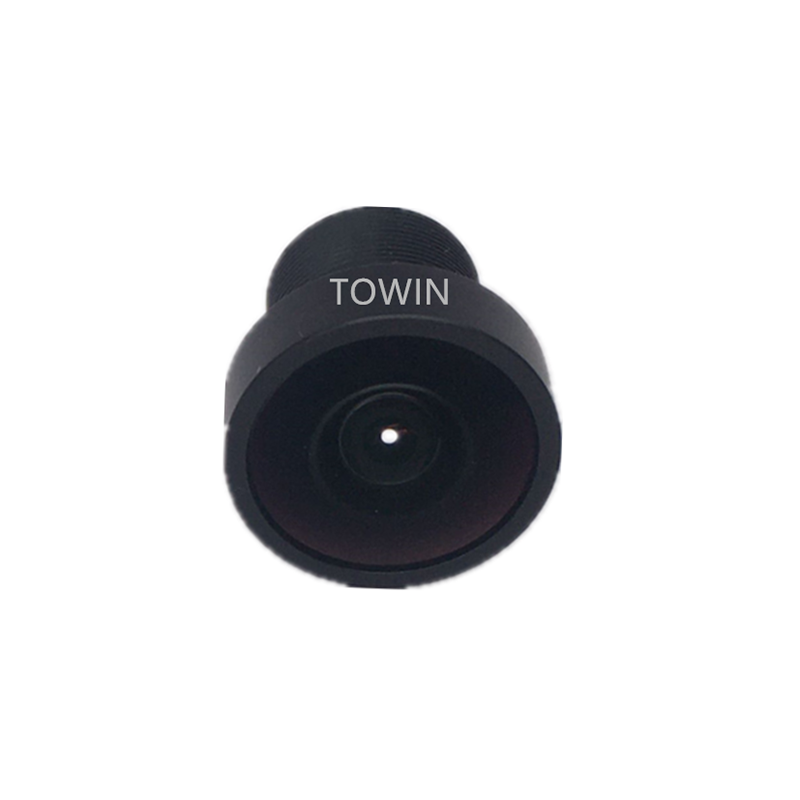

This 1.7mm M12 fisheye lens features an ultra-wide 190° diagonal, horizontal and vertical field of view, paired with 16Megapixel high resolution and F2.4 large aperture. Adopting 7-glass optical structure and fixed iris design, it delivers clear imaging, ultra-low optical distortion and stable performance. Compatible with mainstream CMOS sensors, this M12 fisheye lens is ideal for industrial machine vision, automotive surveillance, CCTV security and panoramic IoT devices.
Core Highlights At A Glance
- Boasts 190° full-direction FOV, eliminates blind spots for panoramic monitoring
- 16MP high resolution, restores sharp details for industrial and automotive imaging
- F2.4 large aperture, ensures excellent low-light shooting performance
- Standard M12x0.5 mount, plug-and-play with easy installation and wide compatibility
- 7G all-glass structure, durable with stable optical consistency long-term

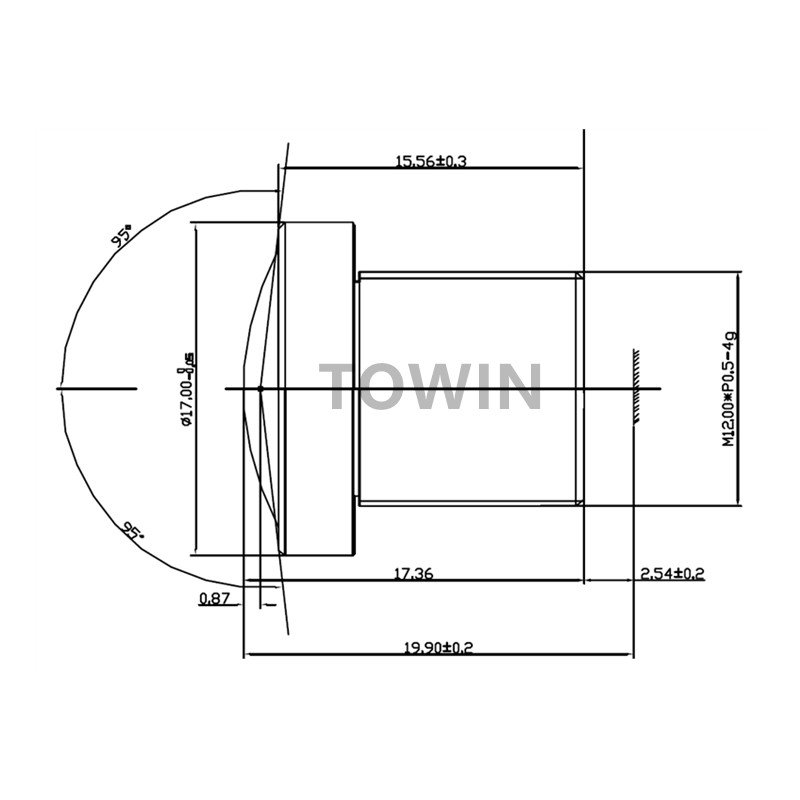

Detailed Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | Φ4.6mm |
| Focal Length | 1.7mm |
| Field of View | 190°(D) / 190°(H) / 190°(V) |
| Resolution | 16Megapixel |
| Optical Distortion | <-101% |
| Aperture | F2.4 |
| Mount | M12x0.5 |
| Iris | Fixed |
| M.O.D | 0.1m |
| T.T.L | 19.90mm |
| B.F.L | 4mm |
| Optical Structure | 7G |
This product complies with RoHS certification and ISO9001 quality control system. It supports third-party professional testing and meets EU and domestic security equipment access standards, ensuring reliable quality and long-term service stability.
Application Scenarios & Compatible Devices
This ultra wide angle fisheye lens is specially engineered for full-view panoramic capture, perfectly suited for automotive panoramic reversing cameras, in-car interior monitoring, home smart doorbells, community access control surveillance, small IoT security cameras, industrial machine vision inspection and drone panoramic shooting scenarios. With a compact overall structure and ultra-short minimum object distance of 0.1m, it fits perfectly in limited narrow installation spaces without extra bracket modification, greatly lowering installation and layout costs. The 7G optical design effectively suppresses stray light, maintaining clear and undistorted imaging even in complex light environments such as backlight and dim light.
It is compatible with mainstream 1/2.8 inch and 1/3 inch CMOS image sensors, matching Hikvision surveillance modules, Tuya smart IoT cameras, automotive panoramic camera modules, small industrial vision detection equipment and smart home monitoring devices. Custom focal length and FOV customization services are available to satisfy personalized equipment matching demands for different industrial and civilian projects.
Designed for panoramic surveillance, automotive and machine vision application.
FAQs
Q1: What mount type does this fisheye lens use?
A1: It adopts standard M12x0.5 thread mount, widely compatible with most mainstream surveillance and vision camera modules.
Q2: What is the FOV of this 1.7mm lens?
A2: It provides 190° ultra-wide field of view in diagonal, horizontal and vertical directions for full blind-spot free panoramic monitoring.
Q3: Does this lens support low-light environment use?
A3: Yes, F2.4 large aperture design greatly improves light intake, delivering stable clear imaging in low-light conditions.
Q4: What is the minimum focusing distance?
A4: The minimum object distance is 0.1m, ideal for close-range industrial detection and short-distance panoramic shooting.
