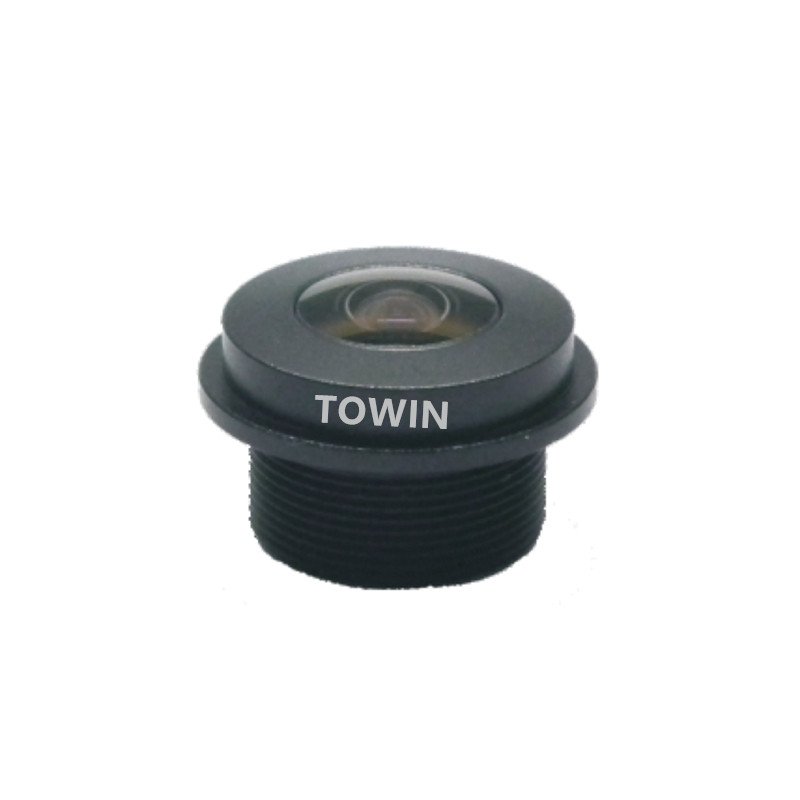

CCLA13021MPF

Description

This 2.1mm M12 fisheye lens features a stunning 177° diagonal field of view, built with 6G+IR cut optical structure and IP68 waterproof rating. Designed for 1/3″ image format sensors, it delivers ultra-wide panoramic monitoring and imaging performance, ideal for Automotive Lens, CCTV Lens, Industrial Lens and ITS Lens scenarios. Fixed aperture and manual focus design ensure stable output, while high distortion fisheye effect meets full-scene coverage demands for smart devices and surveillance systems.

Core Highlights

• Ultra-wide 177°(D) FOV eliminates blind spots for full-scene panoramic coverage
• 2.1mm fixed focal length & F2.1 aperture ensures stable light intake in low-light environments
• 6G+IR cut lens structure realizes accurate infrared filtering and clear day&night imaging
• IP68 waterproof rating adapts to outdoor harsh weather and wet installation environments
• Standard M12X0.5 mount easy to install and compatible with most mainstream sensor modules

Detailed Specifications

This product complies with RoHS certification and ISO9001 quality control standards, supports third-party professional testing, and meets EU and domestic security equipment access standards.

Application Scenarios & Compatible Devices

This M12 fisheye wide angle lens is specially engineered for full-coverage imaging scenarios that require ultra-large viewing angles, perfectly suited for vehicle rearview panoramic monitoring, outdoor street CCTV surveillance, intelligent traffic ITS road capture, industrial equipment peripheral panoramic inspection, and smart home panoramic security cameras. Its IP68 waterproof structure allows stable operation in rain, dust and high humidity outdoor environments, no need for extra protective shell modification, saving installation and maintenance costs. The ultra-short minimum object distance of 0.15m supports close-range imaging, adapting to narrow-space embedded installation demands of small smart hardware.

Compatible with mainstream 1/3″ inch CMOS image sensors, it matches automotive panoramic camera modules, household smart doorbell cameras, IoT wireless surveillance cameras, intelligent traffic monitoring equipment and miniature industrial visual imaging modules. It supports direct replacement of original M12 lens without bracket adaptation.

Designed for panoramic surveillance & automotive imaging application.

FAQs

Q1: What sensor size does this M12 fisheye lens support?

A1: It is optimized for 1/3″ image format sensors and perfectly matches mainstream megapixel CMOS sensors.

Q2: Is this lens suitable for outdoor installation?

A2: Yes, it features IP68 waterproof rating, dustproof and rainproof, suitable for long-term outdoor use.

Q3: Does this lens support infrared night vision imaging?

A3: Built-in 6G+IR cut structure, it realizes clear day and night infrared filtering imaging performance.

Q4: What mount type does this lens adopt?

A4: Standard M12X0.5 thread mount, plug-and-play for most surveillance and automotive camera modules.
