Description

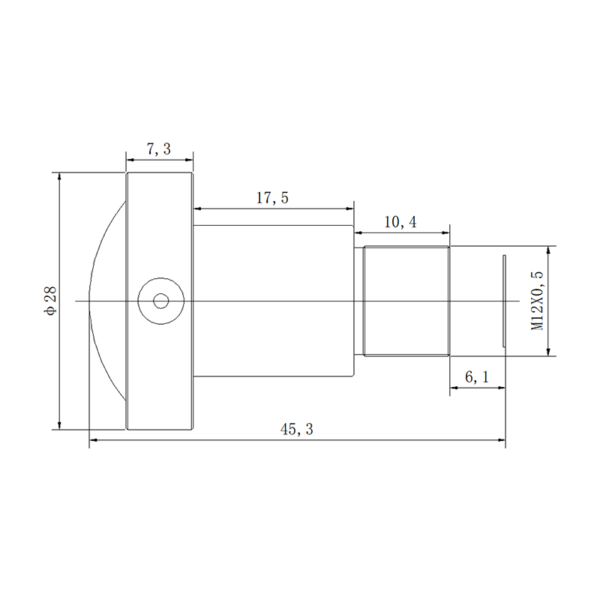

Unlock unparalleled imaging precision with our premium 1/1.8″ 12MP 3.2mm M12 Automotive Lens. Engineered to support massive 12-megapixel resolution across an expansive 154° diagonal field of view, this fixed focal lens bridges the gap between ultra-wide coverage and extreme detail. Featuring a versatile M12x0.5 mount and a reliable Manual Focus mechanism, it serves as the ultimate machine vision lens, drone & UAV lens, and high-performance CCTV lens for advanced optical applications.
Key Features & Product Highlights
- 12 MP Ultra-High Resolution: Captures granular, pixel-dense imagery across the entire 1/1.8″ large-format sensor, solving the edge-blurring issue common in traditional wide-angle lenses.
- 154° Panoramic Fisheye View: Provides an expansive 154° diagonal coverage that minimizes surveillance blind spots and maximizes data acquisition per frame for aerial and industrial monitoring.
- 8G+IRCF Precision Optics: Constructed with an 8-layer all-glass (8G) infrastructure and an integrated infrared cut filter, ensuring high light transmission, minimal thermal drift, and true-to-life color rendering.
- Lockable Manual Focus Control: Equipped with a manual focus ring that allows engineers to dial in the absolute sharpest focal plane for specific working distances, preventing focus shift over extended use.
- Optimized Wide-Angle Distortion: Restricts optical distortion to <-58%, offering a much flatter panoramic image than standard fisheye optics, which simplifies software-based dewarping algorithms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/1.8″ |
| Focal Length | 3.2mm |
| Field of View (F.O.V.) | D: 154° / H: 130° / V: 90° |
| Resolution | 12 Megapixel (12 MP) |
| Aperture | F2.0 (Fixed Iris) |
| Optical Distortion | <-58% |
| Mount | M12x0.5 (S-Mount) |
| Focus Type | Manual |
| Zoom Type | Fixed |
| Back Focal Length (B.F.L.) | 6.2mm |
| Optical Structure | 8G + IRCF (8 Glass Elements + IR Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Optimized Application Scenarios
This industrial-grade 12MP M12 wide angle lens is tailored for elite optical ecosystems that demand both massive spatial coverage and microscopic clarity. It is the premier choice for Drone & UAV aerial mapping, surveying, and agricultural inspection, where its 12-megapixel capacity captures rich terrain details from high altitudes. In factory automation and FA lens setups, the lens is deployed for wide-area conveyor belt inspection, multi-product sorting, and robotic arm spatial guidance, operating flawlessly even under harsh industrial vibrations. Furthermore, its expansive 130° horizontal field of view excels in Intelligent Transportation Systems (ITS) for multi-lane highway surveillance and urban intersection monitoring, capturing crystal-clear license plates across multiple lanes simultaneously.
Compatible Device Checklist
- Sensor Compatibility: Engineered perfectly for 1/1.8″ large-format, high-resolution CMOS sensors (such as Sony IMX系列 12MP sensors) and fully backward compatible with 1/2″, 1/2.3″, and 1/2.8″ sensors.
- Hardware Platforms: Seamlessly integrates with 4K/12K industrial smart cameras, high-definition IP security modules, action cameras, and UAV payload gimbals.
- Mount Standards: Direct mechanical fit for standard M12x0.5 lens holders and camera housings, ensuring a secure, low-profile footprint without heavy brackets.
- OEM Customization: Supports specialized optical coatings, custom IR-pass/cut frequencies (e.g., 850nm/940nm dual-band), and ruggedized anti-vibration glue-fixing for defense and automotive applications.
“Designed for High-Resolution Drone Mapping and Industrial Machine Vision applications.”
Frequently Asked Questions
Q: Can this 12 MP lens handle high-speed industrial inspection without motion blur?
A: Yes. While motion blur depends on your camera sensor’s shutter speed, this lens features premium 8G glass elements that deliver maximum light throughput and optical sharpness, allowing your high-speed global shutter sensor to capture crisp images at high frame rates.
A: Yes. While motion blur depends on your camera sensor’s shutter speed, this lens features premium 8G glass elements that deliver maximum light throughput and optical sharpness, allowing your high-speed global shutter sensor to capture crisp images at high frame rates.
Q: Why does a 12 MP lens use a manual focus system instead of fixed focus?
>>>>>>>>>>>>>>>>>>>>>>>>>>>A: The Manual Focus mechanism allows you to lock in the absolute precise focal point for your specific working distance (whether it is 30cm for an industrial workbench or infinity for a UAV drone), maximizing the performance of the 12-megapixel sensor.
>>>>>>>>>>>>>>>>>>>>>>>>>>>A: The Manual Focus mechanism allows you to lock in the absolute precise focal point for your specific working distance (whether it is 30cm for an industrial workbench or infinity for a UAV drone), maximizing the performance of the 12-megapixel sensor.
Q: Does this M12 lens come with an IR cut filter installed?
>>>>>>>>>>>>>>>>>>>>>>>>>>A: Yes, the optical structure is 8G+IRCF, meaning it includes an integrated Infrared Cut Filter to block IR noise and guarantee accurate color reproduction during daylight or standard factory lighting.
>>>>>>>>>>>>>>>>>>>>>>>>>>A: Yes, the optical structure is 8G+IRCF, meaning it includes an integrated Infrared Cut Filter to block IR noise and guarantee accurate color reproduction during daylight or standard factory lighting.
Q: Is the image circle large enough to cover a 1/1.8″ sensor completely?
A: Absolutely. This lens is optimized for 1/1.8″ sensors, delivering full‑sensor coverage with no mechanical vignetting at its 154° diagonal FOV.
A: Absolutely. This lens is optimized for 1/1.8″ sensors, delivering full‑sensor coverage with no mechanical vignetting at its 154° diagonal FOV.
Q: How do I correct the <-58% distortion for machine vision measurements?
A: The <-58% barrel distortion is standard for a wide-angle Automotive lens. It can be easily calibrated and mathematically corrected via standard camera calibration matrices in OpenCV, LabVIEW or Halcon.
A: The <-58% barrel distortion is standard for a wide-angle Automotive lens. It can be easily calibrated and mathematically corrected via standard camera calibration matrices in OpenCV, LabVIEW or Halcon.
Q: Is this lens robust enough to be mounted on commercial quadcopters and drones?
>>>>>>>>>>>>>>>>>>>>>>>>>>A: Yes, its compact M12 form factor and 8-layer all-glass design are highly resistant to mechanical vibrations, G-forces, and thermal fluctuations, making it perfect for Drone & UAV lenses applications.
>>>>>>>>>>>>>>>>>>>>>>>>>>A: Yes, its compact M12 form factor and 8-layer all-glass design are highly resistant to mechanical vibrations, G-forces, and thermal fluctuations, making it perfect for Drone & UAV lenses applications.
