Description
Discover the ultimate visual solution for high-definition wide-angle imaging. This premium 1/1.8″ 6MP 3.1mm M12 Fisheye Lens is engineered to deliver crisp, 6-megapixel resolution across an expansive field of view. Featuring a robust M12x0.5 mount and a bright F1.8 aperture, this fixed focal lens excels in low-light environments, making it the ideal choice for next-generation automotive lenses, ITS surveillance, and advanced machine vision lens applications.
Key Features & Product Highlights
- 170° Ultra-Wide Fisheye Coverage: Eliminates blind spots with a 170° diagonal field of view on IMX185 sensors, reducing the total camera count needed for full-area surveillance.
- 6 MP High-Definition Clarity: Delivers pristine 6-megapixel resolution across the entire 1/1.8” image format, preventing edge blurring common in standard wide-angle lenses.
- F1.8 Large Aperture Performance: Captures brighter, low-noise images in low-light conditions, significantly improving nighttime recognition in CCTV lens and automotive lens applications.
- 6G+IRCF Optical Structure: Built with 6 layers of precision glass and an integrated IR cut filter to block infrared interference and ensure true-to-life color reproduction.
- 0.1m Minimum Object Distance: Offers an ultra-short M.O.D. of just 0.1 meters, enabling sharp close-up imaging for industrial automation and specialized medical scanning.

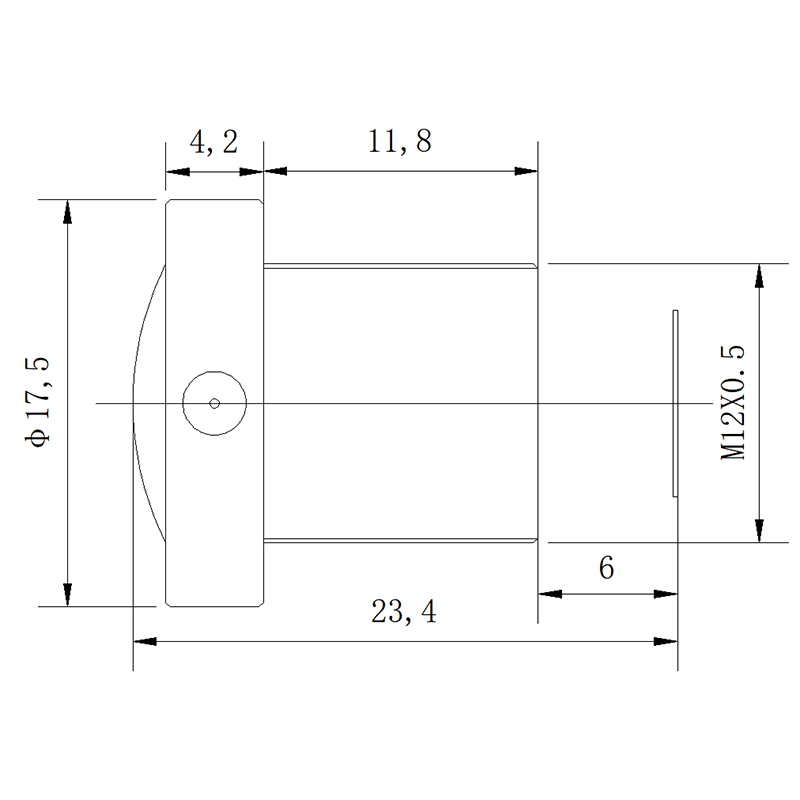

Technical Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/1.8″ |
| Focal Length | 3.1mm |
| Field of View (F.O.V.) | D: 170° / H: 138° / V: 84° (@IMX185) |
| Resolution | 6 Megapixel (6 MP) |
| Optical Distortion | <-78% |
| Aperture | F1.8 (Fixed Iris) |
| Mount | M12x0.5 (S-Mount) |
| M.O.D. (Min. Object Distance) | 0.1m |
| T.T.L. (Total Track Length) | 23mm |
| Optical Structure | 6G + IRCF (6 Glass Elements + IR Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Device Compatibility
Optimized Application Scenarios
This 1/1.8″ 6MP wide angle lens is tailored for demanding environments requiring an expansive field of view and compact installation footprints. It is highly optimized for automotive surround-view systems (360° cameras), electronic mirrors, and driving assistance (ADAS), where reliable wide-angle performance ensures driving safety. Additionally, its high 6MP resolution makes it perfect for Intelligent Transportation Systems (ITS), such as multi-lane highway monitoring, intersection surveillance, and smart parking lots. In industrial automation, it serves as an excellent machine vision lens for wide-area robotic guidance, conveyor belt sorting, and large-component quality inspections.
Compatible Device Checklist
- Sensor Compatibility: Optimized for 1/1.8″ large-format CMOS sensors (e.g., Sony IMX185) and backward compatible with 1/2″ and 1/2.8″ sensors.
- Hardware Platforms: Seamlessly integrates with high-end IP cameras, AI-powered edge computing boxes, and industrial smart cameras.
- Mount Standards: Direct fit for standard M12x0.5 lens holders, requiring no mechanical modifications or custom brackets.
- OEM Customization: Supports tailored adjustments for focal lengths, specific IR pass/cut coatings, and anti-fog mechanical sealing.
“Designed for Automotive Surround-View and High-Definition ITS Surveillance applications.”
Frequently Asked Questions
Q: Can this 6MP M12 lens be used on smaller sensors like 1/2.8″?
A: Yes, this lens is fully compatible with smaller sensors like 1/2″ or 1/2.8″. However, please note that the field of view (F.O.V.) will crop proportionally according to the smaller sensor size.
A: Yes, this lens is fully compatible with smaller sensors like 1/2″ or 1/2.8″. However, please note that the field of view (F.O.V.) will crop proportionally according to the smaller sensor size.
Q: Does this lens support night vision applications?
A: Yes. With a bright F1.8 aperture, it captures excellent low-light details. The built-in IRCF (IR Cut Filter) ensures vibrant daytime colors, and we offer customized versions without IRCF for 850nm/940nm infrared night vision illumination.
A: Yes. With a bright F1.8 aperture, it captures excellent low-light details. The built-in IRCF (IR Cut Filter) ensures vibrant daytime colors, and we offer customized versions without IRCF for 850nm/940nm infrared night vision illumination.
Q: What does the <-78% optical distortion mean for my images?
A: This is a characteristic of fisheye lenses designed to capture ultra-wide fields of view (170°). The barrel distortion can be easily corrected digitally on the software side (dewarping) via your camera’s ISP or software backend.
A: This is a characteristic of fisheye lenses designed to capture ultra-wide fields of view (170°). The barrel distortion can be easily corrected digitally on the software side (dewarping) via your camera’s ISP or software backend.
Q: Is this M12 lens rugged enough for automotive or outdoor industrial use?
A: Absolutely. The 6G (all-glass) optical structure and compact 23mm T.T.L. make it highly resistant to thermal shock and mechanical vibrations, ideal for automotive lens and industrial lens deployment.
A: Absolutely. The 6G (all-glass) optical structure and compact 23mm T.T.L. make it highly resistant to thermal shock and mechanical vibrations, ideal for automotive lens and industrial lens deployment.
Q: Do you support custom modifications for this product?
A: Yes, we provide full OEM/ODM services. We can customize the mount, AR coating, IR filter specifications, and mechanical housing to match your exact device requirements.
A: Yes, we provide full OEM/ODM services. We can customize the mount, AR coating, IR filter specifications, and mechanical housing to match your exact device requirements.
