Description
Empower your imaging systems with the cutting-edge 6MP 190° Fisheye M12 Lens, featuring an ultra-short 1.6mm fixed focal length. Engineered with a massive 1/1.8″ large image format, this lens delivers unparalleled 6-megapixel high-definition panoramic clarity across an expansive 190-degree field of view. Its advanced IR corrected optics ensure crisp, blur-free images during day-and-night transitions without thermal focus shift. Designed as a premium M12 wide angle lens, it is the ultimate compact solution for automotive surround-view, panoramic CCTV surveillance, ITS traffic monitoring, and drone navigation tracking.
Product Highlights
- 190° Hemispherical Field of View: Provides full-coverage 190-degree horizontal and vertical viewing angles, leaving absolutely zero blind spots in critical security matrices.
- 1/1.8″ Large Format & 6MP Resolution: Maximizes light intake on big CMOS sensors to eliminate edge dimming and deliver crisp, forensic-grade 6-megapixel details.
- Day/Night IR Corrected Technology: Eliminates chromatic aberration under infrared illumination, guaranteeing perfectly focused night vision imagery without manual adjustments.
- Ultra-Compact TTL & Short M.O.D.: Boasts a tight 17.1mm Total Track Length and an ultra-short 0.1m Minimum Object Distance for seamless integration into low-profile hardware.
- Ruggedized M12 Form Factor: Features standard M12x0.5 mounting built to withstand high-vibration environments, typical in industrial automation and automotive setups.
Technical Specifications
| Parameter | Specifications |
|---|---|
| Image Format | Φ5.0mm (1/1.8″ Large Format) |
| Focal Length | 1.6mm |
| Aperture | F2.0 |
| Field of View (F.O.V.) | 190° (D) / 190° (H) / 190° (V) |
| Resolution | 6 Megapixel (6 MP) |
| Optical Distortion | <-113% (Fisheye Distortion) |
| Mount Type | M12 x 0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.1m |

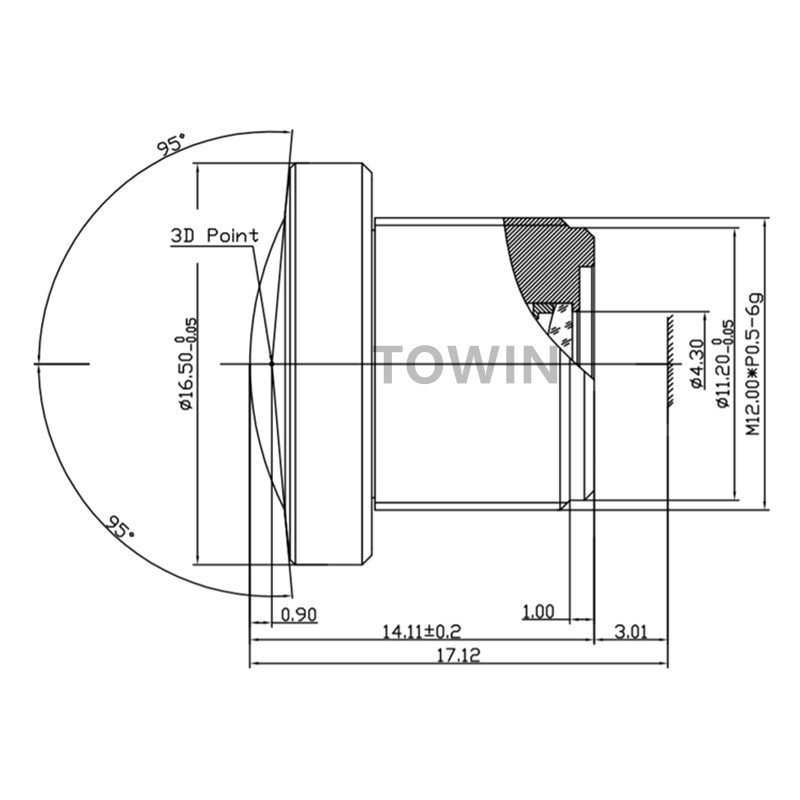

| T.T.L. (Total Track Length) | 17.1mm |
| M. B.F.L. (Mechanical Back Focal Length) | 3.01mm |
| Infrared Correction | IR Corrected |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This 190° IR corrected fisheye lens is specifically developed for high-end optical devices operating under dynamic environments where maximum coverage is non-negotiable. In the automotive and transportation sectors, it is ideal for ITS intelligent traffic monitoring, 360-degree ADAS surround-view systems, and heavy-duty fleet dashcams. For enterprise security, it powers ceiling-mounted 360° panoramic CCTV dome cameras, capturing whole-room layouts with a single sensor. Furthermore, its lightweight 17.1mm TTL profile optimizes it for drone & UAV autonomous navigation, factory floor AGV path planning, and advanced machine vision detection where ultra-wide fields of view and robust low-light handling are crucial.
Compatible Device List
- Large CMOS Sensors: Optimally matched with premium 1/1.8″, 1/2″, and 1/2.8″ high-resolution sensors, such as Sony Starvis IMX series and OmniVision sensors.
- ITS & Traffic Hardware: Fully compatible with intelligent transportation speed dome enclosures and multi-lane roadside monitoring camera assemblies.
- Commercial Surveillance: Fits seamlessly into enterprise-grade panoramic network cameras from top security brands without customized lens mounts.
- Embedded Computing Rigs: Pairs perfectly with high-bandwidth interface modules including Raspberry Pi HQ cameras, Jetson Nano industrial modules, and PCBA boards.
- Tailored OEM Services: We offer customized IR-cut configurations, anti-reflective coating modifications, and waterproof lens barrel selections for demanding projects.
“Designed for 360-degree panoramic ITS traffic monitoring and automotive surround-view applications.”
Frequently Asked Questions
Q: What are the benefits of the IR Corrected feature on this 1.6mm lens?
A: Visible light and infrared light focus at different points. This IR corrected lens utilizes specialized glass elements to merge these focal points, ensuring your daytime color images and nighttime infrared images remain equally sharp without focus drift.
Q: Can this 1/1.8″ image format lens be used on smaller sensors like 1/2.8″?
A: Yes, it is fully backward compatible with 1/2.7″, 1/2.8″, and 1/3″ sensors. Note that using a smaller sensor will slightly crop the edges, making the actual field of view narrower than 190 degrees.
Q: How does the 0.1m M.O.D. benefit my machine vision system?
A: The 0.1m Minimum Object Distance allows the camera to focus on objects extremely close to the lens. This is vital for industrial robotic arms and UAV landing sensors that require precision tracking at proximity.
Q: Does this lens require software de-warping?
A: Yes. Because it has a <-113% optical distortion, it produces a hemispherical fisheye image. Most modern security platforms, dashcams, and drone backends use standard software algorithms to de-warp this into flat panoramic video.
Q: Is the construction weather-resistant for automotive deployments?
A: The lens barrel is manufactured with precision aviation-grade metal alloys. When integrated properly with a sealed camera housing, it easily handles the temperature fluctuations and vibrations of automotive environments.
Q: Do you support bulk customized modifications for this 6MP M12 lens?
A: Absolutely. We provide B2B volume customization, including altering the optical coatings, shifting the mechanical back focal length (BFL), or adding custom optical filters.
