Description
Upgrade your optical system with our high-precision 5MP 5.1mm M7.5 Miniature Lens, engineered specifically for space-constrained and high-fidelity imaging environments. Featuring an ultra-compact Φ7.5mm design and an advanced 5P+1IR cut optical structure, this fixed focal lens delivers crystal-clear 5-Megapixel resolution across a 1/2.5″ image format. With an exceptional low distortion rating of <-1%, it eliminates image warping, making it the premier choice for professional machine vision, industrial automation, and advanced automotive applications requiring uncompromised visual accuracy.
Product Key Highlights
- Zero-Warping Accuracy: Offers an industry-leading low distortion of <-1%, ensuring precise geometric measurement and flawless imaging for critical inspections.
- 5MP Ultra-Sharp Resolution: Optimized for 1/2.5″ CMOS sensors to deliver crisp, high-density 5-Megapixel visuals with edge-to-edge clarity.
- Microscopic Footprint: Engineered with a T.T.L. of just 6.7mm and an M7.5×0.35 mount, fitting seamlessly into tight spaces without bulky hardware.
- Integrated 1IR Cut Filter: Features a 5P + 1IR cut design that blocks infrared interference, guaranteeing accurate color reproduction during day operations.
Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Image Format | 1/2.5″ | Aperture | F2.8 |
| Focal Length | 5.1mm | Mount | M7.5×0.35 |
| H.F.O.V. | 65° | Iris | Fixed |
| Resolution | 5 Megapixel (5 MP) | B.F.L. | 1.5mm |
| Optical Distortion | <-1% | M.O.D. | 0.2m |

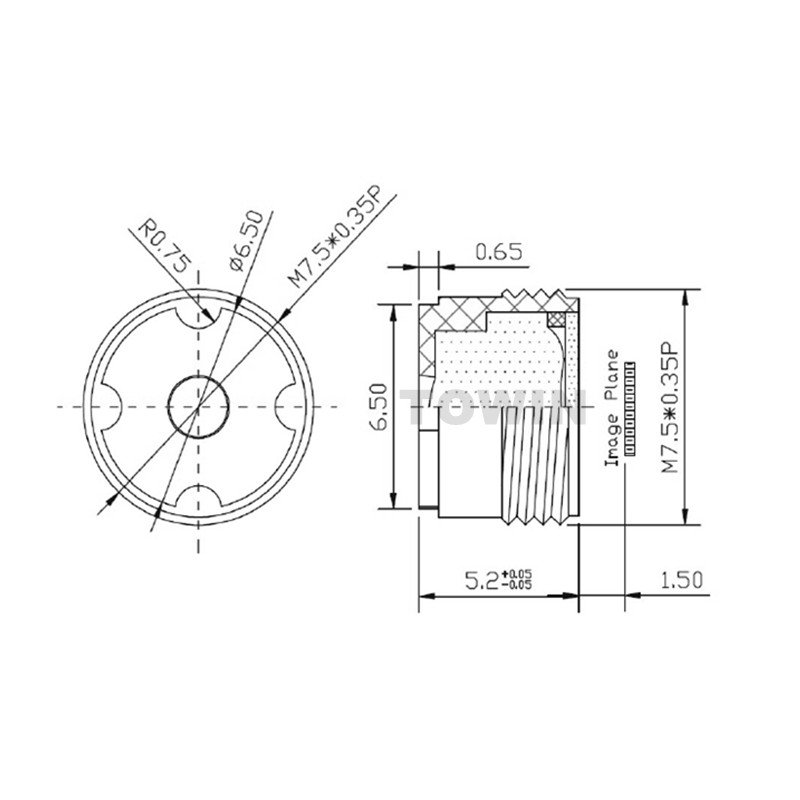

| Dimension | Φ7.5 × 5.2mm | T.T.L. | 6.7mm |
| Lens Component | 5P + 1IR Cut | Type | Fixed Focal / Low Distortion |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatible Devices
Core Application Scenarios
This low distortion lens is specifically optimized for high-end machine vision and smart automated environments. It excels in automated optical inspection (AOI) lines, industrial robot alignment, and PCB defect scanning where geometric accuracy is vital. Its compact profile also makes it highly effective for automotive dashboards, driver monitoring systems (DMS), medical handheld endoscopes, and micro security surveillance setups where standard M12 lenses or C-mount lenses are too large to deploy.
Compatible Device List
- Fully compatible with 1/2.5″, 1/2.8″, and 1/3″ mainstream CMOS sensors (Sony, OmniVision, Onsemi).
- Fits specialized industrial smart cameras, smart biometric scanners, and compact IoT security modules.
- Seamlessly integrates into medical inspection wands and drone/UAV Gimbal cameras without modifying lens brackets.
- Supports tailored OEM/ODM adjustments for specific focal lengths, coatings, or FOV demands to match your hardware layout.
“Designed for precise industrial vision and micro-imaging applications.”
Frequently Asked Questions
Q: What makes this M7.5 lens suitable for machine vision if it is so small?
A: Despite its miniature size, it boasts a 5MP resolution and <-1% optical distortion. This ensures that pixels remain dense and lines remain straight, which is essential for precise industrial measurements and machine vision algorithms.
Q: Can this lens handle outdoor environments or day/night shifting?
A: Yes. It comes built-in with a 1IR cut filter to eliminate color standard deviation in daylight. For night vision setups, we can customize the lens without the IR cut layer or replace it with a dual-band pass filter depending on your system requirements.
Q: Is the M7.5 mount compatible with standard M12 or CS-mount holders?
A: No, it uses a smaller M7.5×0.35 threaded mount. It requires an M7.5 lens holder/mount block. If your device utilizes standard M12 lenses, you will need a step-down adapter or a matching M7.5 bracket.
Q: What is the benefit of the <-1% optical distortion feature?
A: Standard micro lenses often suffer from fish-eye stretching or barrel distortion. A rating of <-1% means the image edges remain flat and true-to-life, removing the need for heavy digital distortion correction software post-capture.
Q: What is the Minimum Object Distance (M.O.D.) for this lens?
A: The M.O.D. is 0.2 meters (20cm). It can sharply focus on objects as close as 20cm away from the lens front, making it excellent for close-range industrial scanning and desktop scanning devices.
Q: Does this lens support adjustable iris or focus tuning?
A: This is a fixed focal lens with a fixed F2.8 iris. The focus is set during installation by threading the lens into its mount to the correct back focal length (B.F.L. 1.5mm), then locking it in place with a set screw or glue.
