CCL13031MPFM9

Description

This 1/3″ 3.1mm 4MP ultra-wide angle lens features a professional 6G+IR cut optical design, delivering a stunning 126° diagonal field of view. With fixed aperture F2.0, manual focus and M9×0.5 miniature mount, it supports 4-megapixel high-resolution imaging and adapts to both daytime and infrared night vision monitoring. Compact size with ultra-wide coverage perfectly solves the blind spot problem of traditional narrow-view lenses, ideal for compact embedded surveillance, automotive panoramic and industrial miniature vision devices.

Key Product Highlights

Ultra-Wide 126° FOV Eliminates Monitoring Blind Spots

Covers 126° diagonal, 92° horizontal and 67° vertical viewing range, one lens replaces multiple ordinary lenses to reduce equipment installation quantity and cost.

4MP High Resolution & 6G Optical Imaging Quality

Adopts 6-group glass lens structure, restores real scene details clearly, supports 4MP pixel output without image blurring or color distortion.

Built-in IR Cut for Day & Night Dual Use

Integrated IR cut filter realizes automatic switching between day color imaging and night infrared monitoring, adapting to complex light environments.

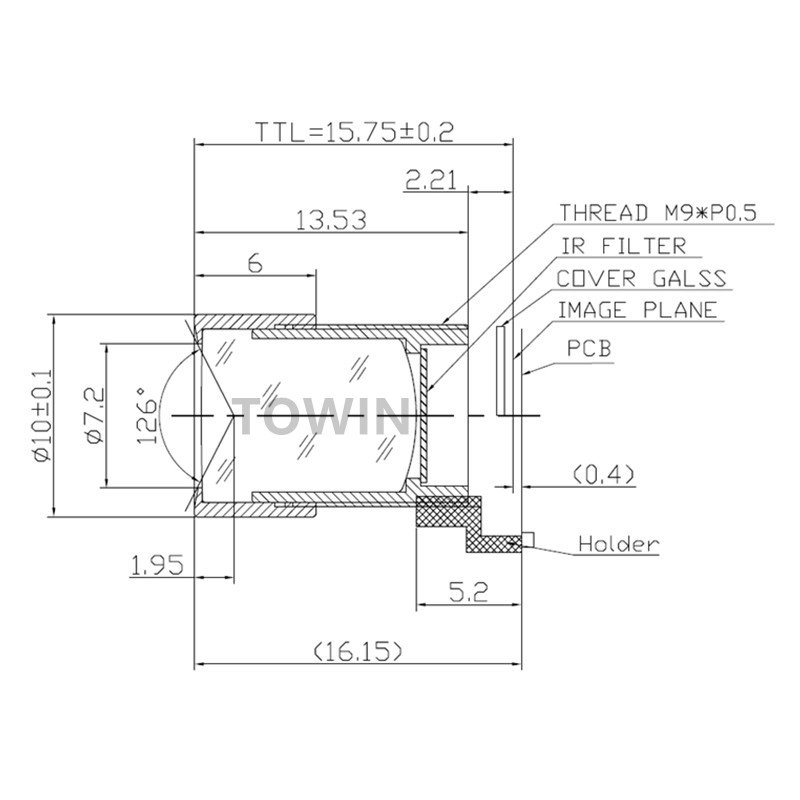

M9×0.5 Miniature Mount Easy Embedded Installation

Standard M9×0.5 thread mount, compact body design, fits narrow installation space of miniature cameras without extra bracket modification.

F2.0 Large Aperture Improves Low-Light Performance

F2.0 fixed aperture increases light intake significantly, ensuring bright and clear imaging in dim indoor and night environments.

Detailed Product Parameter

This product is RoHS certified, ISO9001 quality control certified, supports third-party testing, and complies with EU/domestic security equipment access standards, alleviating customer quality concerns.

Product Application Scenarios and Compatible Devices

Core Application Scenarios

This ultra-wide angle lens is specially developed for miniature embedded monitoring and panoramic capture scenarios. It is widely applied in automotive panoramic surround view monitoring, vehicle reversing blind spot recognition, household smart panoramic cameras, small indoor security surveillance, industrial miniature machine vision inspection, smart doorbell panoramic shooting, and narrow-space IoT monitoring equipment. The ultra-large field of view covers more monitoring areas, and the compact miniature structure adapts to highly limited installation space of small smart devices, stable imaging performance works reliably in indoor constant temperature, vehicle vibration and conventional outdoor light change environments, effectively reducing monitoring dead angles and improving overall security monitoring coverage efficiency.

Compatible Devices List

Compatible with mainstream 1/3-inch CMOS image sensors in the market. Adapted to miniature M9 mount surveillance camera modules, automotive panoramic driving recorders, smart home panoramic IoT cameras, industrial miniature vision inspection cameras, video doorbell embedded modules and small IP security cameras. We support customized focal length, field of view and structural parameters to meet personalized device adaptation needs for global buyers.

Designed for panoramic surveillance, automotive and industrial miniature vision application.

FAQs

Q: Does this lens support night vision infrared monitoring?

A: Yes, it comes with a built-in IR cut filter, realizing clear day color and night infrared imaging.

Q: What sensor size does this lens match?

A: It is perfectly matched with 1/3-inch mainstream CMOS sensors.

Q: Is the mount compatible with conventional M9 camera modules?

A: Standard M9X0.5 thread mount, directly compatible with all M9 mount camera equipment.

Q: Can this lens be used for vehicle panoramic monitoring?

A: Absolutely, 126° ultra-wide FOV is specially optimized for automotive blind spot and panoramic surround view scenarios.

Q: What is the minimum focusing distance of the lens?

A: The minimum object distance is 0.2m, meeting close-range monitoring and shooting demands.
