CCL13014MPR2F

Description

This 1/3″ 1.4mm M8 ultra-wide lens features an ultra-wide 155° diagonal field of view, fixed focal design and compact miniature structure. Built with 2G2P+IRF optical construction and F2.0 large aperture, it delivers clear imaging with manual focus and fixed iris. Ideal for automotive, CCTV, machine vision and industrial miniature imaging devices, this wide-angle M8 miniature lens balances ultra-large viewing angle, mini size and stable optical performance perfectly.

Product Core Highlights

• Ultra 155° DFOV panoramic view eliminates blind spots for full-scene monitoring
• F2.0 large aperture enhances light intake for low-light environment clear imaging
• M8X0.5 miniature mount saves installation space for compact embedded devices
• IR corrected optical design ensures consistent day and night imaging effect
• Durable 2G2P+IRF structure reduces distortion and improves overall imaging stability

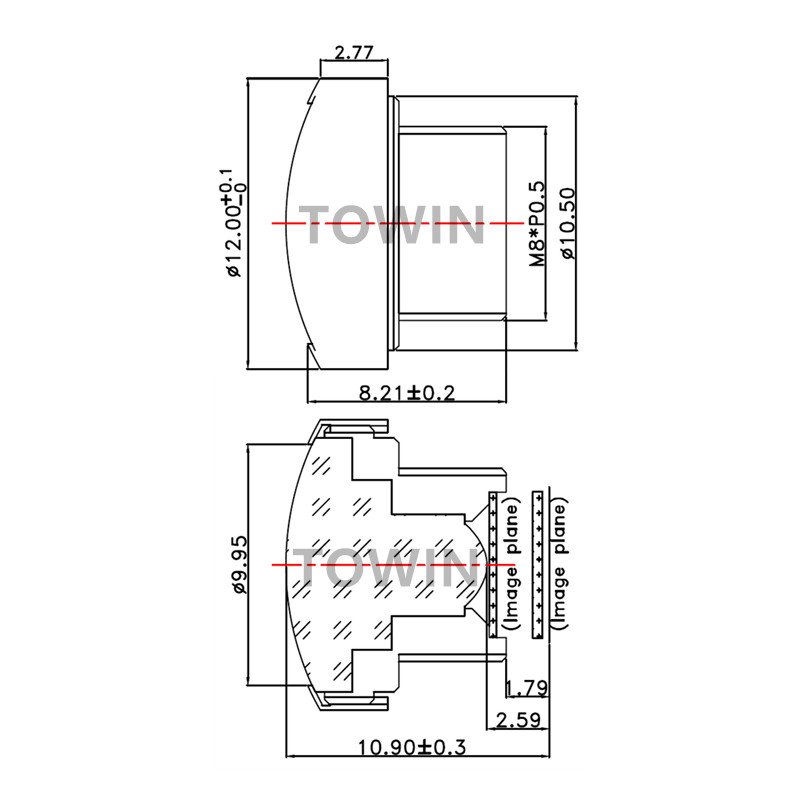

Detailed Lens Specifications

This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.

Application Scenarios & Compatible Devices

Crafted with ultra-wide viewing angle and ultra-compact M8 miniature structure, this lens is perfectly tailored for scenarios requiring no dead-angle monitoring and limited installation space. It is widely used in automotive rear view & surround view imaging, residential CCTV security cameras, intelligent traffic ITS monitoring, small machine vision detection, industrial miniature equipment imaging and smart IoT home surveillance devices. The 155° panoramic FOV covers more monitoring area without assembling multiple lenses, greatly reducing equipment cost and installation difficulty. Its IR corrected design adapts to day and night switching environment, maintaining clear imaging performance in dim light and dark conditions.

It is fully compatible with 1/3-inch mainstream CMOS image sensors, fits all M8X0.5 interface miniature camera modules, automotive panoramic dash cams, smart doorbell cameras, industrial micro vision sensors and ITS traffic capture equipment. No extra bracket modification is needed, plug-and-play for fast assembly and mass production deployment.

Designed for wide-angle miniature imaging application.

FAQs

Q1: What sensor size does this M8 ultra-wide lens support?

A1: It is optimized for 1/3″ image sensor, perfectly matching mainstream CMOS modules for stable imaging output.

Q2: Is this lens suitable for automotive surround view systems?

A2: Yes, the 155° ultra-wide FOV can perfectly cover vehicle surround view blind spots, ideal for automotive lens matching.

Q3: Does this lens support infrared night vision imaging?

A3: Adopting 2G2P+IRF infrared corrected structure, it realizes consistent clear imaging both day and night.

Q4: What is the mount type of this industrial wide angle lens?

A4: Standard M8X0.5 miniature mount, easy to install for embedded small camera devices.
