Description
Optimize your high-precision vision systems with our premium 1/1.8″ M12 lens, specifically tailored for advanced machine vision lens applications and industrial automation. Delivering a crystal-clear 6 MP resolution and a wide 96° diagonal field of view, this low distortion lens compresses geometric warping to less than -0.4%. Featuring an ultra-short 0.1m minimum object distance and an integrated IR cut filter, this FA lens provides unmatched edge-to-edge optical performance for close-up scanning, robotics, and aerial imaging.
Key Product Highlights
Expansive 96° Wide-Angle with Near-Zero Distortion
Captures a wide overview while keeping geometric distortion under -0.4%, eliminating barrel stretching to ensure highly reliable image metrics.
Exceptional 0.1m Micro-Focus Capabilities
Solves the pain point of close-range blurring by maintaining clear 6 MP resolution at a minimal object distance of just 10cm.
Large-Format 1/1.8″ Sensor Optimization
Resolves full 6-megapixel details across large-format sensors, preventing the peripheral pixel drop-off common in lower-tier standard optics.
Ultra-Compact T.T.L. 22.1mm S-Mount Form Factor
Packs an advanced 3G2P optical structure into a tiny Φ14×17.2mm frame, allowing rapid drop-in integration without redesigning physical camera brackets.
Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Format | 1/1.8″ |
| Focal Length | 4.1mm |
| Field of View (F.O.V.) | 96°(D) / 84°(H) / 67°(V) |
| Resolution | 6 Megapixel (6 MP) |
| Distortion | <-0.4% |
| Aperture | F4.0 |
| Mount | M12 × 0.5 (S-Mount) |
| Iris Type | Fixed |
| Minimum Object Distance (M.O.D.) | 0.1m (100mm) |
| Total Track Length (T.T.L.) | 22.1mm |

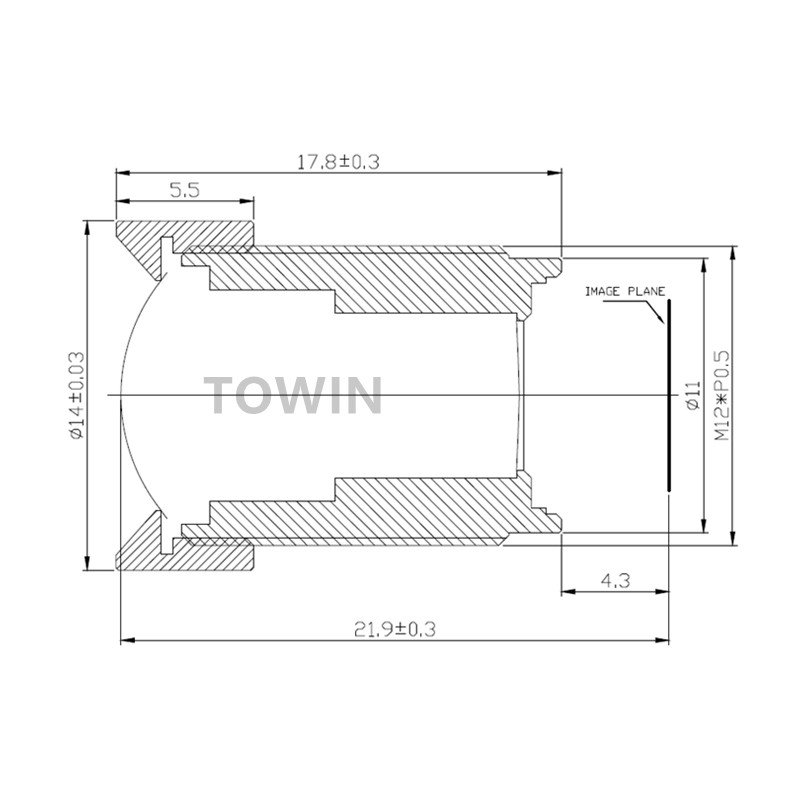

| Dimension | Φ14 × 17.2mm |
| Lens Component | 3G2P + IR cut (3 Glass + 2 Plastic Elements) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Product Application Scenarios and Compatible Devices
Core Application Scenarios
This industrial-grade wide angle lens is engineered for high-density electronic assembly lines, PCB surface-mount technology (SMT) inspection, pharmaceutical packaging verification, and automated high-speed QR code scanning systems. Thanks to its 10cm micro-focus threshold, it can be mounted directly above fast-moving conveyor belts for high-fidelity macro inspection. Its lightweight housing also makes it an excellent fit for smart sorting robotic arm grippers, warehouse automated guided vehicles (AGVs), and high-resolution drone & UAV lenses that require panoramic situational awareness and crisp land-mapping matrices.
Compatible Devices List
Perfectly matched with high-end 1/1.8-inch and 1/2-inch 6 MP/5 MP CMOS sensors from industry leaders like Sony (IMX series), OmniVision, and Onsemi. It integrates natively with embedded AI smart cameras, industrial machine vision frame grabbers, compact security IP modules, and handheld veterinary diagnostic tools. The standardized M12x0.5 threading ensures robust mechanical locking in heavy-vibration environments. Customized optical anti-reflective coatings and alternative bandpass filters can be configured upon corporate request.
Designed for close-range machine vision and automated industrial inspection application.
Frequently Asked Questions
Q: What are the advantages of the 0.1m M.O.D. on this lens?
A: Most wide-angle lenses lose focus when objects come too close. The 0.1m (10cm) micro-focus allows this industrial lens to capture crisp, detailed macro images of tiny electronic components or barcodes at close range.
Q: Why does this lens use an F4.0 aperture instead of a wider one?
A: The F4.0 aperture is optimized to increase the depth of field (DoF). This ensures that components of varying heights on a circuit board or production line all stay sharply in focus simultaneously.
Q: Can this 1/1.8″ lens be paired with standard 1/2.8″ or 1/3″ sensors?
A: Yes, it is fully backward-compatible. When used with smaller sensors, it eliminates peripheral vignetting entirely, though the effective field of view will become narrower based on the sensor crop factor.
Q: What is the function of the built-in IR cut filter?
A: The integrated IR cut filter blocks ambient near-infrared light during daylight operations. This prevents color distortions and keeps color rendering accurate for precise sorting algorithms.
Q: How does the 3G2P design benefit industrial applications?
A: The 3 Glass and 2 Plastic hybrid structure balances cost efficiency with top-tier optical performance, ensuring thermal expansion stability while maintaining a lightweight profile (T.T.L. 22.1mm).
Q: Is this lens suitable for high-vibration drone deployment?
A: Yes, the ultra-compact Φ14mm size and low mass minimize kinetic inertia. When coupled with standard M12 mount lock-rings, it remains highly stable during fast aerial maneuvers.
