Description
Achieve unmatched visual precision with this 5MP 2.98mm M12 low distortion lens. Engineered for high-resolution imaging, it features an ultra-low distortion rating of less than -0.2%, making it the definitive choice for applications requiring absolute geometric accuracy. With a standard M12x0.5 mount and a 2G2P+IRF optical structure, this fixed focal lens delivers crisp, 5-megapixel clarity across a 73° diagonal field of view, bridging the gap between compact design and industrial-grade machine vision performance.
Product Highlights
- Near-Zero Distortion (< -0.2%): Delivers flawless geometric fidelity without lines bending, eliminating the need for software de-warping calibration in critical inspection tasks.
- 5 Megapixel High Definition: Optimized for 5MP CMOS sensors to capture fine details, sharp edges, and precise micro-features that standard low-resolution lenses miss.
- Industry Standard M12 Mount: Features a versatile M12x0.5 S-mount design, ensuring drop-in compatibility with thousands of industrial, CCTV, and embedded camera boards.
- Optimized 2G2P+IRF Structure: Combines 2 glass and 2 plastic elements with an integrated IR filter, striking the perfect balance between superior optical transmission and cost efficiency.
Specifications
| Parameter | Specifications |
|---|---|
| Image Format | 1/4″ |
| Focal Length | 2.98mm |
| Field of View (F.O.V.) | 73° (D) / 62° (H) / 49° (V) |
| Resolution | 5 Megapixel (5 MP) |
| Distortion | < -0.2% |
| Aperture | F3.5 |
| Mount | M12 x 0.5 |
| Iris Type | Fixed |
| M.O.D. (Min. Object Distance) | 0.3m |

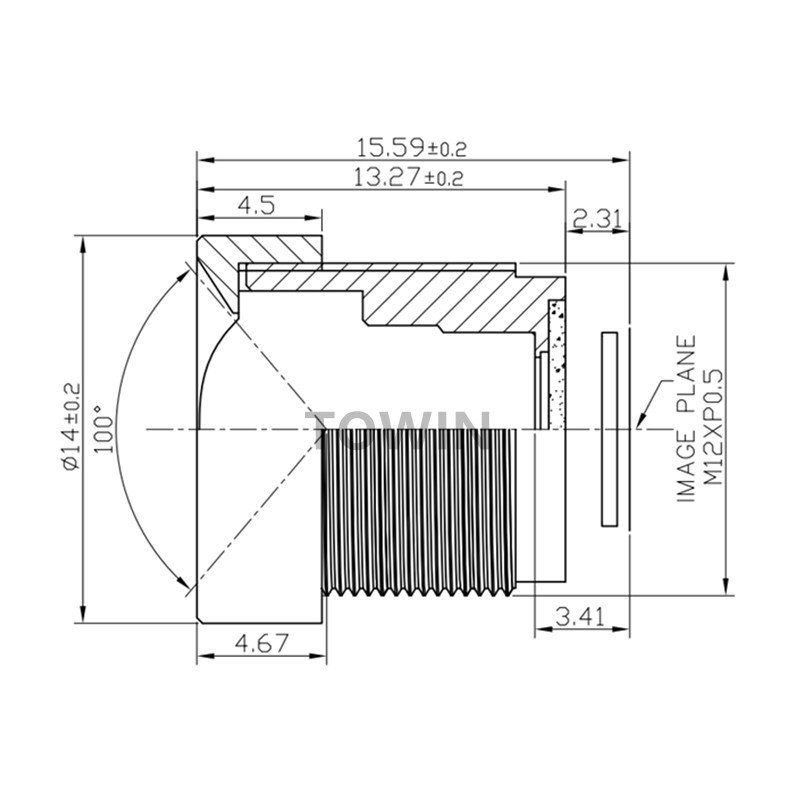

| T.T.L. (Total Track Length) | 15.59mm |
| Optical Construction | 2G2P + IRF (2 Glass + 2 Plastic + IR Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Target Devices
This 5MP M12 industrial lens is purpose-built for high-accuracy environments where image warping causes system errors. Its 73° diagonal field of view and F3.5 aperture provide a perfectly balanced mid-wide perspective, making it exceptional for document scanning, barcode reading, and factory automation assembly lines. The built-in IR cut filter efficiently isolates infrared glare, ensuring accurate color rendering in changing industrial lighting or outdoor daylight. Measuring just 15.59mm T.T.L., it allows engineers to design slim, lightweight imaging modules without risking thermal drift or alignment loss during continuous operation.
Compatible Device List:
- Machine Vision & FA: Ideal for automated optical inspection (AOI) systems, smart OCR readers, packaging label verifiers, and micro-robotic alignment tools.
- UAV & Drone Inspection: Perfect for lightweight drone camera payloads used in precision agriculture mapping, power line surveying, and industrial site inspections.
- Commercial Terminal Equipment: Highly compatible with self-service kiosks, retail face-recognition scanners, high-definition document scanners, and ATM cameras.
- Embedded Sensors: Perfectly fits 1/4″ 5MP CMOS sensors (such as OmniVision or Sony series) integrated into Raspberry Pi, Arduino, or specialized Linux-based industrial camera modules.
Designed for machine vision, factory automation, and ultra-low distortion scanning applications.
Frequently Asked Questions
Q: Why is a distortion rate of <-0.2% important for machine vision?
A: In machine vision and FA lens applications, software relies on straight pixels to measure objects or read barcodes. A distortion under -0.2% means lines stay straight, preventing measurement errors and saving CPU processing power since no digital correction is needed.
Q: Can this 1/4″ format lens be mounted on a 1/3″ sensor?
A: No. This lens is specifically tailored for 1/4″ image formats. Mounting it on a larger 1/3″ or 1/2.8″ sensor will cause heavy vignetting and dark corners around the image frame.
Q: What are the advantages of the 2G2P+IRF structure?
A: The 2 Glass + 2 Plastic elements structure provides high resolution and controls chromatic aberration effectively while keeping production costs optimized. The built-in IR Filter (IRF) blocks infrared wavelengths above 650nm to ensure natural daytime color performance.
Q: Is the iris or focus adjustable on this lens?
A: This is a Fixed Focal Lens with a Fixed Iris (F3.5). The focus can be adjusted mechanically during installation by rotating the lens within the M12 mount thread, then locking it with a lock ring.
Q: Does this lens support macro imaging or close-up inspection?
A: The Minimum Object Distance (M.O.D.) is 0.3 meters. It is highly optimized for clear imaging from 30cm to infinity, making it ideal for desktop document scanners, biometric terminals, and assembly line scanning.
Q: Do you support customization for different IR pass filters or modified mounts?
A: Yes. We offer comprehensive OEM/ODM services. We can replace the standard IR filter with an 850nm/940nm bandpass filter for infrared nighttime illumination or adjust mechanical specifications for large-volume orders.
