Description
Achieve flawless geometric accuracy with our premium 4.1mm F4.0 8MP M12 Low Distortion Lens. Specifically engineered for 1/2.3” image sensors, this high-performance fixed focal lens features a highly optimized 3G2P+IRF (3 Glass + 2 Plastic Elements + IR Filter) hybrid optical structure. Boasting an incredible TV distortion of less than -0.4%, it delivers a wide 88° diagonal field of view entirely free from standard fisheye warping. With its ultra-compact profile (Φ14×17.8mm) and a short 21.9mm TTL, it is the perfect plug-and-play choice for space-constrained drone & UAV lenses, specialized machine vision lens scanning systems, and elite industrial lens automation modules.
Key Features & Product Highlights
- <-0.4% Near-Zero Distortion: Eliminates barrel and pincushion warping entirely, providing true-to-life geometric mapping required for precision AI algorithms.
- 8MP UHD High-Fidelity Optics: Delivers crisp 8-megapixel resolution across 1/2.3″ format sensors, preventing corner blur and ensuring pixel-accurate clarity.
- Ultra-Compact Micro Footprint: Features an incredibly tiny Φ14×17.8mm physical dimension and 21.9mm TTL to easily fit within ultra-low-profile camera housings.
- Streamlined F4.0 Fixed Iris: Provides an extended depth of field (DoF) to ensure objects from close-up to infinity remain perfectly in focus without manual adjustments.
Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.3″ |
| Focal Length | 4.1mm |
| Field of View (F.O.V.) | 88°(D) / 75°(H) / 60°(V) |
| Resolution | 8 Megapixel (8MP) |
| Distortion | <-0.4% (Ultra-Low Distortion) |
| Aperture | F4.0 |
| Mount Type | M12x0.5 (S-Mount) |
| Iris Type | Fixed |
| Minimum Object Distance (M.O.D.) | 0.1m (10cm) |

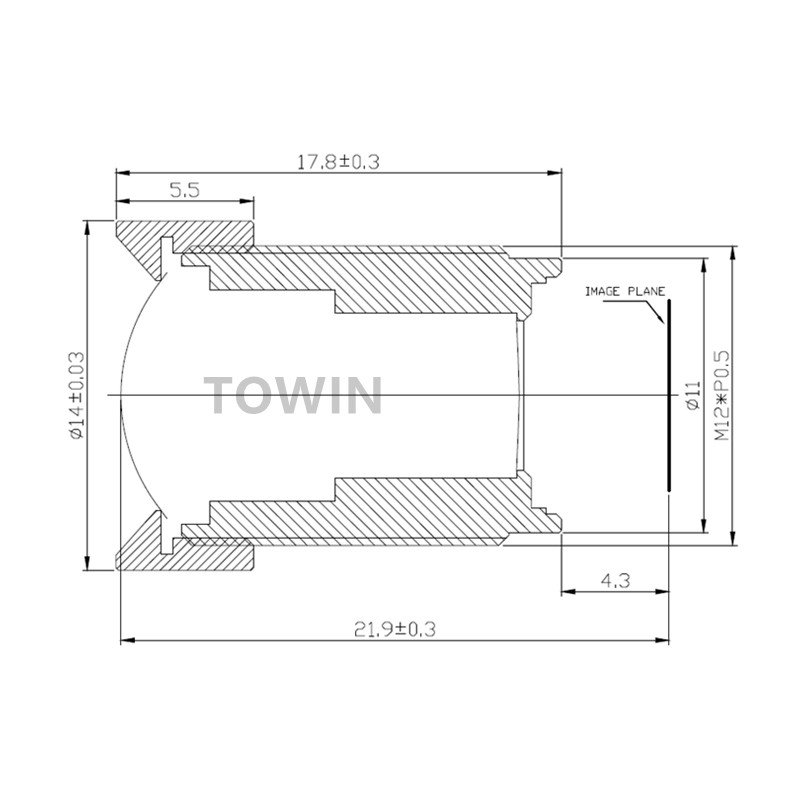

| Total Track Length (T.T.L.) | 21.9mm |
| Dimensions | Φ14mm × 17.8mm |
| Optical Construction | 3G2P + IRF (3 Glass + 2 Plastic + IR Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
This ultra-low distortion M12 wide angle lens is purposefully built for applications requiring precise measurements and micro-sized deployment. It excels in barcode and QR scanning tunnels, logistics sorting lines, robotic arm guidance, and high-altitude UAV mapping drones where geometric skewing ruins data data sets. Its lightweight 3G2P structure reduces payload significantly, maximizing flight times for handheld stabilizers and action cameras, while providing the stable FA lens accuracy needed for medical diagnostic imaging and smart parking management systems.
Compatible Device List:
- Sensors: Tailored for 1/2.3″, 1/2.5″, and 1/3″ mainstream CMOS sensors (including Sony IMX series, Onsemi, and OmniVision).
- Hardware Platforms: Seamlessly compatible with Raspberry Pi HQ camera modules, Jetson Nano embedded vision kits, and industrial USB/GMSL smart cameras.
- Systems: Adapts perfectly to commercial drone & UAV micro-gimbals, fixed machine vision inspection blocks, and high-end security door stations.
- Customization: Supports variable wavelength IR cut filter options (e.g., dual-band pass, 850nm/940nm narrow pass) to fit varied industrial lighting setups.
Designed for Machine Vision and UAV Drone applications.
Frequently Asked Questions
Q1: What are the advantages of a <-0.4% distortion rate in factory automation?
Standard wide-angle lenses distort lines at the periphery. A low distortion lens with less than -0.4% distortion ensures straight lines stay perfectly straight. This eliminates the need for processor-heavy software de-warping, allowing FA lens systems to measure components instantly.
Q2: How does the F4.0 aperture benefit my vision application?
An F4.0 aperture yields a significantly deeper Depth of Field (DoF) compared to wider F2.0 lenses. This means objects moving at varying distances from the camera (such as items on a conveyor belt) all stay sharply in focus without any autofocus mechanism.
Q3: What does the “3G2P+IRF” construction mean?
It denotes a hybrid layout utilizing 3 Glass elements for core thermal resistance and sharpness, and 2 precision Molded Plastic elements to achieve the ultra-low distortion profile in a lightweight chassis. The integrated IR Filter (IRF) ensures accurate daytime color reproduction.
Q4: Can this lens handle heavy vibrations on drone gimbals or robotic arms?
Yes. Thanks to its ultra-short 21.9mm TTL, rigid fixed iris, and compact Φ14mm body, it has an incredibly low center of gravity. Once threaded into an M12 mount and locked, it resists image shift caused by high-frequency vibration.
Q5: What is the Minimum Object Distance (M.O.D.) for close-up scanning?
The M.O.D. is 0.1 meters (10cm). It can capture hyper-sharp 8MP images at very close ranges, making it an excellent match for medical desktop instruments and document scanners.
Q6: Can this 1/2.3″ format lens be used on a 1/2.7″ sensor?
Absolutely. It is fully backward compatible with 1/2.7” and 1/3” sensors. The only difference is that the field of view (FOV) will narrow slightly according to the crop factor, while the center resolution remains perfectly sharp.
