Description
Upgrade your optical systems with our premium 3.65mm F2.8 12.5MP M12 Low Distortion Lens. Engineered for 1/2.3” image sensors, this high-resolution fixed focal lens delivers a spectacular 94° diagonal wide-angle view without compromising image integrity. Featuring an ultra-low TV distortion of less than 0.5% and a compact 25mm TTL, it provides crystal-clear, edge-to-edge clarity. Whether you are upgrading drone cameras, optimizing machine vision inspection lines, or deploying smart industrial automation sensors, this mini S-mount lens offers the perfect balance of micro-footprint and mega-performance.
Key Features & Product Highlights
- 12.5MP Crystal-Clear Resolution: Delivers ultra-high-definition imaging optimized for 1/2.3” CMOS sensors, ensuring zero pixel-drop for precision recognition.
- <0.5% Ultra-Low TV Distortion: Eliminates annoying fisheye warping, providing true-to-life geometry crucial for measurement and accurate scanning.
- 94° Wide-Angle FOV: Captures an expansive field of view (82°H / 69°V) to eliminate blind spots in tight spatial environments.
- Compact 25mm TTL & M12 Mount: Micro-sized 6E+IRF (6 Glasses + IR Filter) construction fits effortlessly into tight housings without heavy modifications.
Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.3″ |
| Focal Length | 3.65mm |
| Field of View (F.O.V.) | 94°(D) / 82°(H) / 69°(V) |
| Resolution | 12.5 Megapixel (12.5MP) |
| TV Distortion | <0.5% |
| Aperture | F2.8 |
| Mount Type | M12x0.5 (S-Mount) |
| Iris Type | Fixed |
| Minimum Object Distance (M.O.D.) | 0.1m |

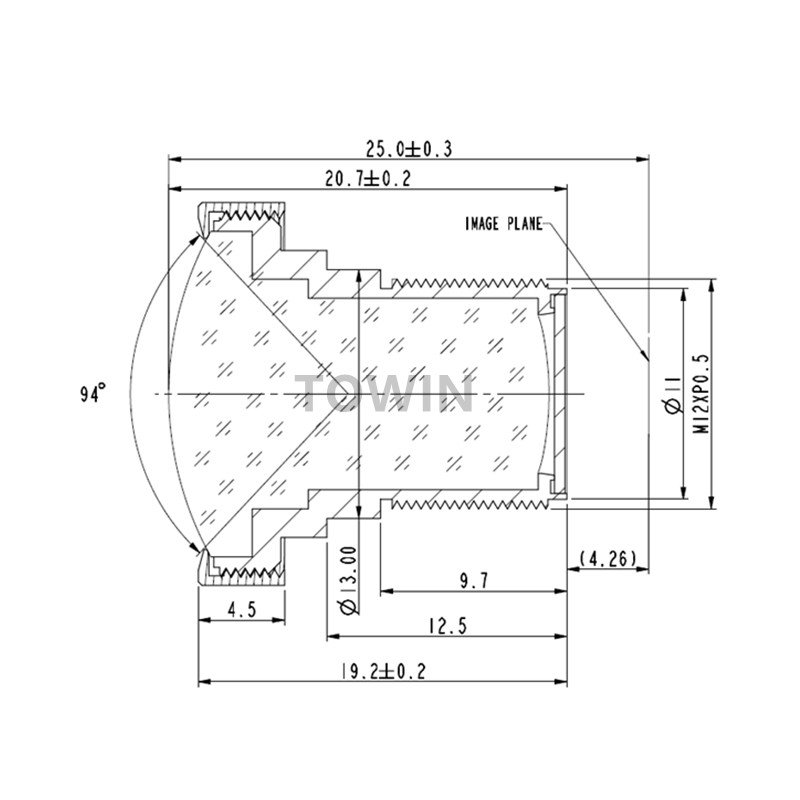

| Total Track Length (T.T.L.) | 25mm |
| Optical Construction | 6E + IRF (6 Glass Elements + IR Cut Filter) |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
This high-performance M12 wide-angle lens is purpose-built for advanced autonomous systems and automated environments. It excels in UAV mapping drones, high-speed industrial inspection lines, robotic sorting arms, and high-end automotive driving assistance systems (ADAS). Its robust 6-glass optical layout ensures reliable focus stability under vibrating or fluctuating thermal conditions, making it an ideal choice for smart factory cameras and surgical medical equipment where clarity is non-negotiable.
Compatible Device List:
- Sensors: Fully optimized for 1/2.3″, 1/2.5″, and 1/3″ mainstream CMOS sensors (Sony, Onsemi, OmniVision).
- Hardware Platforms: Seamlessly integrates with Raspberry Pi High Quality Cameras, Arduino vision shields, and specialized industrial smart cameras.
- Systems: Compatible with open-source drone gimbals, embedded factory automation (FA) vision blocks, and medical endoscope modules.
- Customization: Supports tailored IR-cut filter modifications (e.g., 650nm, 850nm, 940nm) to match various light sources.
Designed for Drone, UAV, and Machine Vision applications.
Frequently Asked Questions
Q1: What makes a “Low Distortion Lens” critical for machine vision?
Standard wide-angle lenses suffer from barrel distortion, stretching images at the borders. A low distortion lens (with TV distortion <0.5%) ensures that lines stay straight, allowing AI vision algorithms to measure and identify objects accurately.
Q2: Is this M12 lens compatible with smaller sensor sizes like 1/3″?
Yes, it is perfectly compatible. When used on smaller 1/3” or 1/2.8” sensors, it will simply result in a narrower crop of the Field of View (FOV) while maintaining identical sharpness and crisp 12.5MP fidelity.
Q3: Does this 3.65mm lens include an integrated IR cut filter?
Yes, the lens architecture uses a 6E+IRF construction, which includes a built-in Infrared Filter (IRF). This blocks unwanted infrared light to guarantee vivid, true-to-life color reproduction during daylight hours.
Q4: Can this lens withstand industrial vibration on drones or robot arms?
Absolutely. The lens utilizes a robust fixed-iris design and M12x0.5 thread. Once locked into your camera housing with a locking ring or adhesive, it resists mechanical shifts caused by high-speed motion or motor vibrations.
Q5: What is the Minimum Object Distance (M.O.D.) for macro inspections?
The M.O.D. is 0.1 meters (10cm). This close-focusing capability makes it exceptionally suited for close-range industrial PCB inspection, desktop scanning, and medical device imaging.
