Description
Enhance your low-light surveillance and compact imaging systems with our high-performance 3MP 6mm M12 Wide Angle Lens. Masterfully engineered for standard 1/2.5″ CMOS sensors, this ultra-compact lens measures just Φ14x16mm, making it exceptionally easy to integrate into low-profile housings. Featuring an impressive F1.8 large aperture, it dramatically boosts light transmission for crystal-clear 3-megapixel resolution in low-light environments. Providing a generous 60° horizontal field of view, this fixed focal lens delivers the perfect balance of wide-area situational awareness and detailed target resolution for CCTV security, smart IoT terminals, and drone vision systems.
Key Highlights
- F1.8 Ultra-Large Aperture: Gathers significantly more light than standard F2.0/F2.4 lenses, dramatically reducing image noise and delivering crisp monochrome or color rendering at night.
- Micro-Sized Form Factor (Φ14x16mm): The ultra-compact, ultra-lightweight profile eliminates payload issues on mini drones and seamlessly fits inside tight, vandal-proof security housings.
- Optimal 60° Wide-Angle View: Delivers broad situational coverage across 1/2.5-inch sensors without the extreme barrel distortion associated with fisheye lenses.
- 0.3m Close Focusing Capacity: Achieves sharp, blur-free performance as close as 30cm from the target, preventing focus drop-offs in near-field entryways or kiosk verification checks.
Technical Specifications
- Image Format: 1/2.5″ (Also supports 1/2.7″, 1/3″)
- Focal Length: 6.0mm
- Field of View (F.O.V.): 74° (D) / 60° (H) / 44° (V) on 1/2.5″ sensor
- Resolution: 3 Megapixel (3MP)
- Optical Distortion: < 19%
- Aperture: F1.8 (Fixed Iris)
- Mount Type: M12 x 0.5
- Back Focal Length (B.F.L.): 7.1mm
- Minimum Object Distance (M.O.D.): 0.3m (300mm)

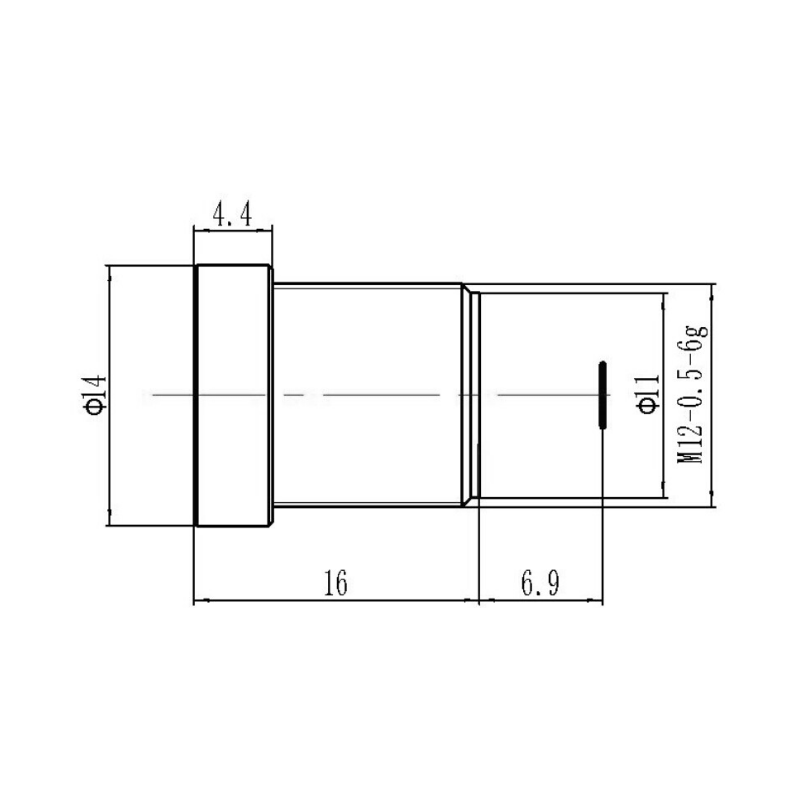

- Dimensions: Φ14mm × 16mm
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Applications & Compatibility
Core Application Scenarios
This 3MP 6mm M12 wide angle lens is specifically optimized for space-constrained, weight-sensitive environments that demand outstanding nighttime visibility. It excels in Drone & UAV FPV navigation cameras, where its lightweight Φ14mm design and stable 74° diagonal field of view allow pilots to spot obstacles easily without weighing down the aircraft. Thanks to its fast F1.8 aperture, it provides immense performance value for CCTV smart security monitoring, including residential video doorbells, corridor bullet cameras, and office entrance terminals operating under low-light conditions. It is also an excellent option for commercial smart retail kiosks, reverse parking assistance systems, and logistics conveyor scanners where uniform field coverage is essential.
Compatible Device List
- Sensors: Fully compatible with 1/2.5″, 1/2.7″, 1/2.8″, and 1/3″ high-definition CMOS sensors (e.g., Sony IMX, OmniVision, and SmartSens series).
- Security & IP Modules: Directly fits 1080P/3MP compact board-level IP camera modules from Hikvision, Dahua, Uniview, and Tuya-powered smart home devices.
- Drone & FPV Hardware: Compatible with RunCam, Foxeer, and standard board-level FPV bracket modules designed for M12 threads.
- Embedded Development Platforms: Pairs seamlessly with Raspberry Pi camera kits, Jetson Nano camera modules, and open-source AI microcontrollers.
“Designed for low-light CCTV security and lightweight Drone vision applications.”
Frequently Asked Questions
- Q: What makes the F1.8 aperture special for this 6mm lens?
- A: An F1.8 aperture is significantly wider than standard industrial or security lenses (which usually feature F2.0 or F2.4). It allows much more light to reach the sensor, enabling cleaner, brighter images during night or inside dimly lit factory spaces.
- Q: Will this lens fit smaller sensors like the 1/2.8″ or 1/3″ CMOS?
- A: Yes, it is fully backward-compatible with smaller sensors. However, please note that because the sensor area is smaller, your final Field of View (FOV) will narrow slightly compared to a 1/2.5″ sensor.
- Q: Is the distortion profile acceptable for standard security monitoring?
- A: Yes, an optical distortion of <19% is normal and standard for a 6mm wide-angle micro lens. It provides a wide spatial overview suitable for security observation, facial recognition gates, and drone navigation.
- Q: Can this lens handle high vibrations on drones or moving machinery?
- A: Absolutely. This is a fixed focal lens with a fixed iris, meaning there are no internal motorized moving parts. Once threaded into your camera board and locked with a mount ring, it is highly resistant to vibration drift.
- Q: Does this lens include a built-in IR Cut Filter (IRCF)?
- A: By default, this optical barrel maximizes light entry for visible light. If your application requires an integrated 650nm IR Cut Filter for day color accuracy, or an un-filtered glass for nighttime infrared illumination, please state your requirement during ordering.
- Q: What is the benefit of the Φ14x16mm small dimension?
- A: The tiny physical profile allows the camera module to be placed inside compact structures like smart doorbells, covert miniature security cameras, or streamlined drone shells without modifying your mechanical mounting space.
