Description
This 1/2″ 12mm 5MP M12 fixed focal lens features F1.8 large aperture and IR corrected optical design, delivering sharp, low-distortion imaging for industrial machine vision, CCTV surveillance, automotive and ITS applications. Built with 6-glass construction and manual focus, it ensures stable performance in long-distance shooting and precision visual detection scenarios.
Product Core Highlights
- 12mm narrow FOV design for long-distance targeted monitoring and precise positioning
- F1.8 large aperture boosts light intake, clear imaging in low-light environments
- 5Megapixel high resolution matches mainstream CMOS for ultra-sharp image output
- Standard M12X0.5 mount, easy installation and wide device compatibility
- IR corrected optics realize day&night consistent imaging without color deviation

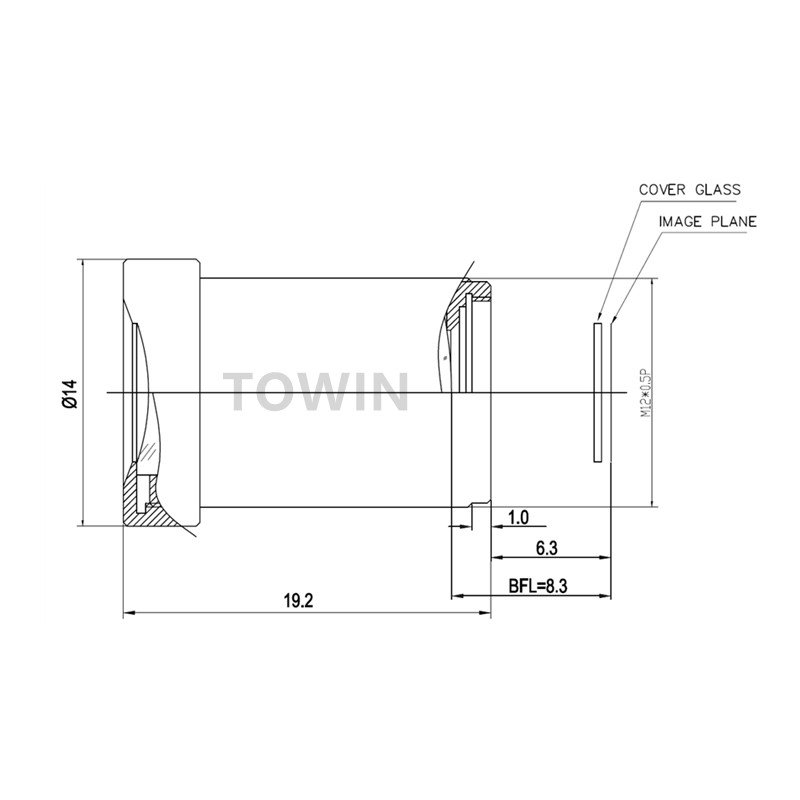

Detailed Product Parameters
| Parameter | Specification |
|---|---|
| Image Format | 1/2″ |
| Focal Length | 12mm |
| Field of View | 39°(D) / 30°(H) / 23°(V) |
| Resolution | 5Megapixel |
| Aperture | F1.8 |
| Mount | M12X0.5 |
| Iris | Fixed |
| Focus | Manual |
| Zoom | Fixed |
| B.F.L. | 8.3mm |
| M.O.D. | 0.3m |
| Construction | 6G |
| Optical Feature | IR Corrected |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
This 12mm M12 fixed focal lens is specially engineered for narrow-angle long-distance imaging, ideal for industrial production line defect detection, machine vision positioning recognition, highway ITS traffic monitoring, automotive front/rear view imaging, and high-precision small component dimension measurement. It performs steadily in indoor factory workshops, outdoor road monitoring, vehicle-mounted working environments and low-light industrial sites, solving blurry imaging and color cast problems of ordinary lenses in long-distance shooting. The compact body fits limited installation space without extra bracket modification, greatly reducing installation and replacement costs for system integrators.
- Compatible with 1/2″ mainstream CMOS image sensors
- Adapt to industrial machine vision cameras, CCTV security cameras
- Fit automotive surveillance modules, ITS traffic capture devices
- Support automated FA equipment and miniature industrial detection cameras
Designed for industrial machine vision and long-distance surveillance application.
FAQs
Q1: What sensor size does this lens support?
A1: It perfectly matches 1/2″ image format and is compatible with mainstream 5MP CMOS sensors on the market.
Q2: Is this lens suitable for night vision use?
A2: Yes, it adopts professional IR corrected design, ensuring consistent imaging effect day and night with no infrared color deviation.
Q3: What is the minimum object distance of the lens?
A3: The minimum object distance is 0.3m, meeting close-range detection and long-distance monitoring demands.
Q4: What mount type does it use?
A4: Standard M12X0.5 thread mount, plug-and-play for most M12 interface cameras.
