Description
This 1/4″ 1.8mm M12 fisheye lens features a stunning 180° diagonal field of view, built with 6-glass elements and an integrated IR cut filter for day and night clear imaging. Designed with fixed aperture and manual focus structure, it adopts classic M12×0.5 mount, perfectly matching miniature surveillance, automotive, industrial machine vision and intelligent traffic equipment. It balances ultra-wide viewing angle, compact size and stable optical performance, solving the blind spot shooting pain point of small-size imaging devices.
Product Core Highlights
- 180° ultra-wide fisheye view eliminates monitoring blind spots for full-scene coverage
- 6G optical structure + IR cut filter ensures day&night high-definition imaging without color cast
- M12×0.5 standard mount plug-and-play, compatible with most miniature camera modules
- Fixed F2.5 aperture delivers stable light intake for low-light environment shooting
- Compact fixed focal design saves installation space for narrow embedded devices

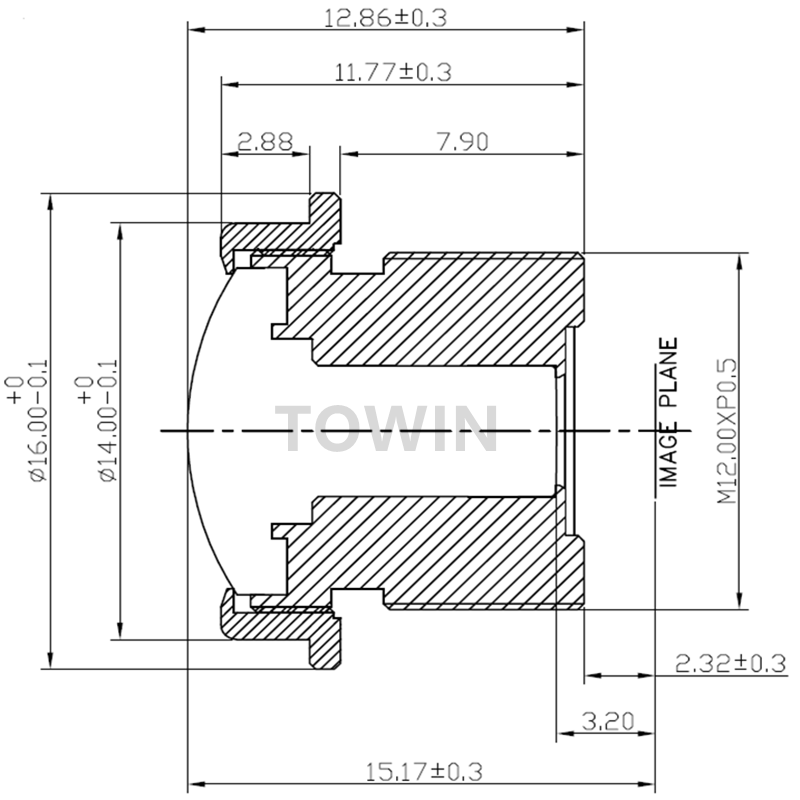

Detailed Lens Parameters
| Parameter Item | Specification |
|---|---|
| Image Format | 1/4″ |
| Focal Length | 1.8mm |
| Diagonal FOV | 180°(D) |
| Horizontal FOV | 130°(H) |
| Vertical FOV | 99°(V) |
| Resolution | Megapixel |
| Optical Distortion | <-87.5% |
| Aperture | F2.5 |
| Mount | M12X0.5 |
| Iris Type | Fixed |
| Focus Type | Manual |
| Zoom Type | Fixed |
| Relative Illumination | 65% |
| BFL | 3.20mm |
| Lens Construction | 6G + IR cut filter |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Application Scenarios & Compatible Devices
Core Application Scenarios
This M12 fisheye lens is specially developed for mini embedded imaging devices, widely applied in automotive panoramic rear view, driving recorder full-scene recording, household smart doorbell monitoring, small CCTV security camera, industrial micro machine vision detection, roadside miniature ITS traffic monitoring and drone low-altitude panoramic shooting scenarios. It perfectly solves the problem of limited shooting range and blind spots of small-volume equipment, adapts to narrow installation space such as embedded shell and hidden mounting position, and maintains clear imaging effect in both indoor and outdoor day and night environments.
Compatible Device List
- Compatible with mainstream 1/4″ CMOS image sensors
- Adapt to M12 interface IPC camera modules, smart home IoT monitoring devices
- Match automotive rear view panoramic camera, mini traffic capture equipment
- Fit small industrial machine vision inspection modules and intelligent sensing devices
Designed for automotive, CCTV, industrial and machine vision application.
FAQs
Q1: What is the mount type of this fisheye lens?
A1: It adopts standard M12×0.5 thread mount, plug and play for most M12 interface camera modules.
Q2: Does this lens support night vision imaging?
A2: Yes, it is built with an IR cut filter, realizing accurate day and night switching and clear infrared imaging.
Q3: What devices is this 180° wide angle lens suitable for?
A3: Ideal for smart doorbells, automotive rear view cameras, mini CCTV, industrial machine vision and ITS traffic monitoring equipment.
Q4: Is the lens certified for European market access?
A4: It passes RoHS, ISO9001 certification, complies with EU and domestic security access standards, and supports third-party testing.
