Description
Enhance your imaging system with our compact 1.5mm F2.0 M12 fisheye lens. Delivering a true 195-degree horizontal field of view with balanced F(θ) distortion control under 8.9%, this 2MP resolution lens provides excellent wide-angle monitoring clarity. Optimized for 1/2.7″ sensors and featuring an ultra-short 14.3mm Total Track Length (TTL), it is the premier choice for automotive surround-view imaging, panoramic CCTV cameras, and lightweight drone vision systems where structural space is extremely limited.
Key Features & Product Highlights
- Ultra-Wide 195° Horizontal FOV: Captures an expansive panoramic view up to 195° (H) at φ5.6mm, effectively removing blind spots in a single frame.
- Ultra-Short 14.3mm TTL Profile: The micro mechanical structure saves maximum space, ideal for ultra-thin smart doorbells and flush-mounted car cameras.
- Optimized F(θ) Distortion (<8.9%): Precision engineered F-Theta mapping reduces extreme edge compression, making software dewarping faster and more accurate.
- Bright F2.0 Large Aperture: Allows massive light transmission to maintain crisp 2MP high-definition imaging during night or low-light conditions.
- Standard M12 Thread Integration: Features a robust M12x0.5 fixed iris mount, providing excellent vibration resistance on moving vehicles or industrial machinery.
Product Specifications
| Parameter | Specification |
|---|---|
| Image Format | 1/2.7″, φ5.6 |
| Focal Length | 1.5mm |
| Field of View (F.O.V.) | 195° (H) @5.6mm / 165° @4.6mm / 110° @3.4mm |
| Resolution | 2 Megapixel (2MP) |
| F(θ) Distortion | <8.9% |
| Aperture | F2.0 |
| Mount Type | M12x0.5 |
| Iris Type | Fixed |
| Minimum Object Distance (M.O.D.) | 0.2m |

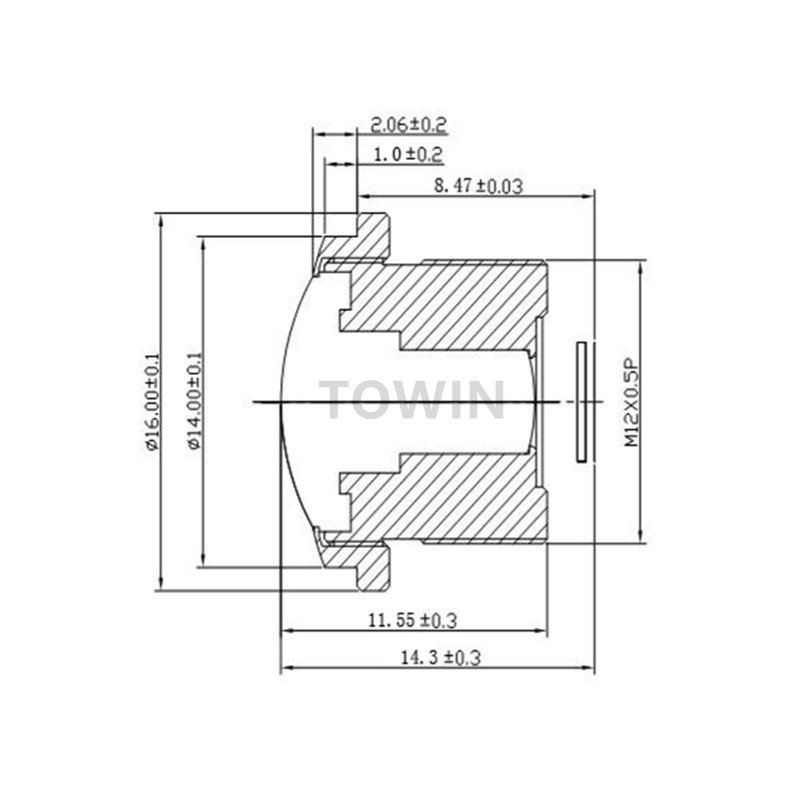

| Total Track Length (T.T.L.) | 14.3mm |
This product is certified by RoHS and ISO9001 quality management system, supports third-party testing, and complies with EU and domestic security equipment access standards, ensuring reliable quality and full compliance.
Target Applications & Compatible Devices
Core Application Scenarios
This 1.5mm wide angle M12 lens is specifically engineered for severe space-constrained applications requiring extensive horizontal viewing coverage. In Automotive Surround View Systems (AVM) and electronic side mirrors, its 195° horizontal FOV enables flawless 360-degree vehicle stitching with zero blind spots. Its incredibly short 14.3mm TTL profile allows seamless integration into flush automotive bumpers, ultra-thin apartment video doorbells, and compact smart home surveillance cameras without protruding. Additionally, it serves as an excellent situational awareness lens for mini drones (UAVs) and warehouse automated guided vehicles (AGVs) operating in tight indoor spaces.
Compatible Device List
- Sensors: Perfectly matches 1/2.7″, 1/2.8″, and 1/3″ 1080P Full HD CMOS sensors (e.g., Sony IMX323/IMX307, OmniVision, Onsemi).
- Automotive Devices: 360° panoramic parking modules, commercial fleet dash cams, and backup blind-spot cameras.
- Smart Security: Smart IoT video doorbells, panoramic IP dome cameras, and ATM security monitoring pods.
- Robotics & UAVs: First-person view (FPV) drone cameras, obstacle-avoidance modules for AGVs, and industrial sorting robots.
Designed for 360° Automotive Surround View and Panoramic Security applications.
Frequently Asked Questions
Q: What does the different FOV values (@5.6mm, @4.6mm, @3.4mm) mean for my camera setup?
A: These values show the field of view based on the active image circle diameter on your sensor. A 1/2.7″ sensor utilizes the full φ5.6mm image format to achieve the maximum 195° horizontal view.
Q: Is the 14.3mm TTL short enough to fit inside a standard car camera shell?
A: Yes, the 14.3mm Total Track Length makes it one of our shortest panoramic lenses, allowing it to fit into mini car camera housings without hitting internal components.
Q: How does the <8.9% F(θ) distortion benefit my computer vision software?
A: It means the lens uses linear F-Theta distortion correction. The captured image maintains standard angular scale, which drastically reduces mathematical stretching when dewarping the fisheye image.
Q: Can this lens handle outdoor extreme temperatures on vehicles?
A: Yes, it is built with an all-glass optical design and high-grade metal housing, providing excellent thermal stability ranging from harsh winter to summer vehicle operations.
Q: Does this 2MP fixed focal lens come with an integrated IR cut filter?
A: The standard model comes with a customized filter option based on your requirement (such as a 650nm IR cut filter for day use or dual-band for night vision). Please specify when ordering.
Q: Can I use this M12 lens on a 1/2-inch sensor?
A: No, a 1/2-inch sensor is too large and will cause heavy black borders (vignetting), as this lens is optimized for a maximum image format of 1/2.7″.
